FRONT BRAKE CALIPER 2.11
REMOVAL
NOTE
Steps 1 and 2 are not required for detaching caliper from
rotor. Drain fluid only when disassembling caliper.
1. Drain and discard brake fluid.
CAUTION
Damaged banjo bolt seating surfaces will leak when
reassembled. Prevent damage to seating surfaces by
carefully removing brake line components.
2. See Figure 2-36. Remove banjo bolt (2) (metric) and two
banjo washers (3) to disconnect brake line (1) from cali-
per. Discard banjo washers.
3. Remove brake pads.
a. Remove pin plug (4).
b. See Figure 2-37. Remove pad hanger pin (1) (met-
ric).
c. Remove brake pads from caliper.
4. See Figure 2-36. Detach caliper from mounts.
a. Remove lower mounting screw (5).
b. Remove upper mounting screw (5) and brake line
wireform (7) while supporting caliper above brake
rotor.
c. Slowly remove caliper by tilting away from wheel
and then pulling away from rotor.
d. Separate carrier and caliper.
DISASSEMBLY
1. See Figure 2-38. Use BRAKE CALIPER PISTON
REMOVER (Part No. B-42887) to pull the two pistons
from caliper bores.
2. See Figure 2-39. Remove piston outer seals (4) and
inner seals (2) from their respective grooves in caliper.
Discard seals.
3. Check bleeder valve (metric). Remove and replace if
damaged.
CLEANING AND INSPECTION
11WARNING1WARNING
Clean brake system components using denatured alco-
hol. Do not use mineral-base cleaning solvents, such as
gasoline or paint thinner. Use of mineral-base solvents
causes deterioration of rubber parts that continues after
assembly. This could result in improper brake operation
which could result in death or serious injury.
1. Clean all parts with denatured alcohol or D.O.T. 4
BRAKE FLUID. Do not contaminate with mineral oil or
other solvents. Wipe dry with a clean, lint free cloth. Blow
out drilled passages and bore with a clean air supply. Do
not use a wire or similar instrument to clean drilled pas-
sages.

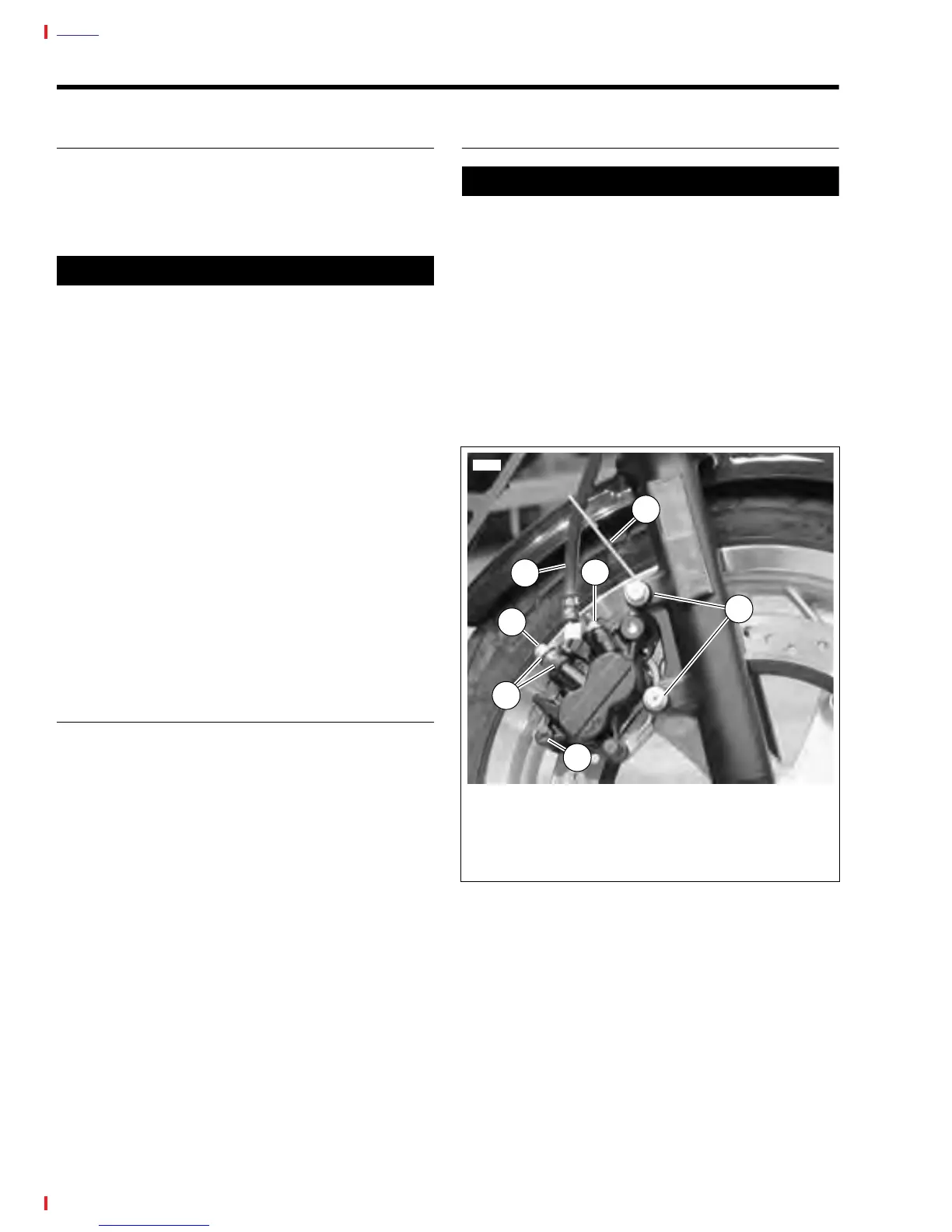

Figure 2-36. Front Brake Caliper
5
2
1
3
4
1. Brake Line
2. Banjo Bolt (metric)
3. Banjo Washers (2)
4. Pin Plug
5. Mounting Screws (2)
6. Bleeder Valve
7. Wireform
8273
6
7
