Buell 2002 P3 - 7.5 BANK ANGLE SENSOR

2002 Buell P3: Electrical 7-13
HOME
BANK ANGLE SENSOR 7.5
REMOVAL
1. Remove seat. See 2.28 SEAT.
11WARNING1WARNING
To protect against shock and accidental start-up of vehi-
cle, disconnect the negative battery cable before proced-
ing. Inadequate safety precautions could result in death
or serious injury.
2. Disconnect negative battery cable from battery.
3. See Figure 7-11. Remove circuit breaker from mounting
bracket.
4. Remove allen head screw from mounting bracket while
holding locknut on Bank Angle Sensor side.
5. Remove Bank Angle Sensor from it’s mounting location.
6. Disconnect connector [134] from Bank Angle Sensor.
7. Remove Bank Angle Sensor.
INSTALLATION
1. Connect connector [134] to new Bank Angle Sensor.
2. See Figure 7-12. Position Bank Angle Sensor in mount-
ing position on circuit breaker bracket mounting screw.
Make sure sensor locating post engages hole in trunk to
ensure proper alignment of sensor.
3. Install Bank Angle Sensor with allen screw and locknut.
Tighten screw to 25-27 in-lbs (2.8-3.1 Nm).
4. Install circuit breaker to circuit breaker mounting bracket.
5. Install negative battery cable to battery terminal. Tighten
fastener to 60-96 in-lbs (7-11 Nm).
6. Install seat. See 2.28 SEAT.

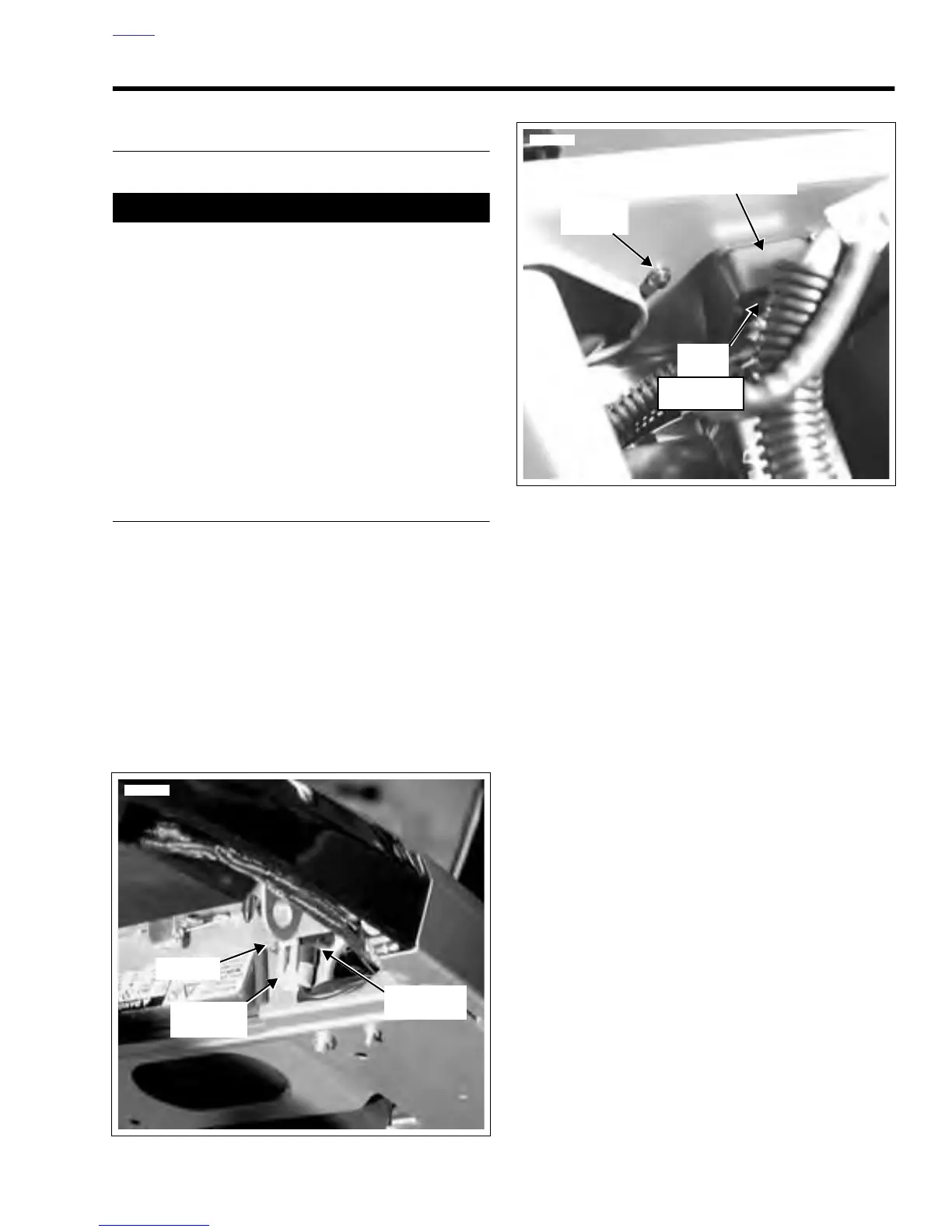

Figure 7-11. Bank Angle Sensor Removal
8261
Bank Angle
Sensor
Connector
[134]
Locknut
Figure 7-12. Bank Angle Sensor Installation
8262
Locating
Post
Circuit Breaker
Bracket
Allen
Screw
25-27 in-lbs
(2.8-3.1 Nm)
