FRONT FORK ASSEMBLY
1. Coat the slide bushing with fork oil or sealing grease.
2. See Figure 2-70. Install slide bushing onto the slide pipe.
3. See Figure 2-71. Install damper assembly and rebound
spring into slider tube.
4. See Figure 2-72. Install lock piece into damper

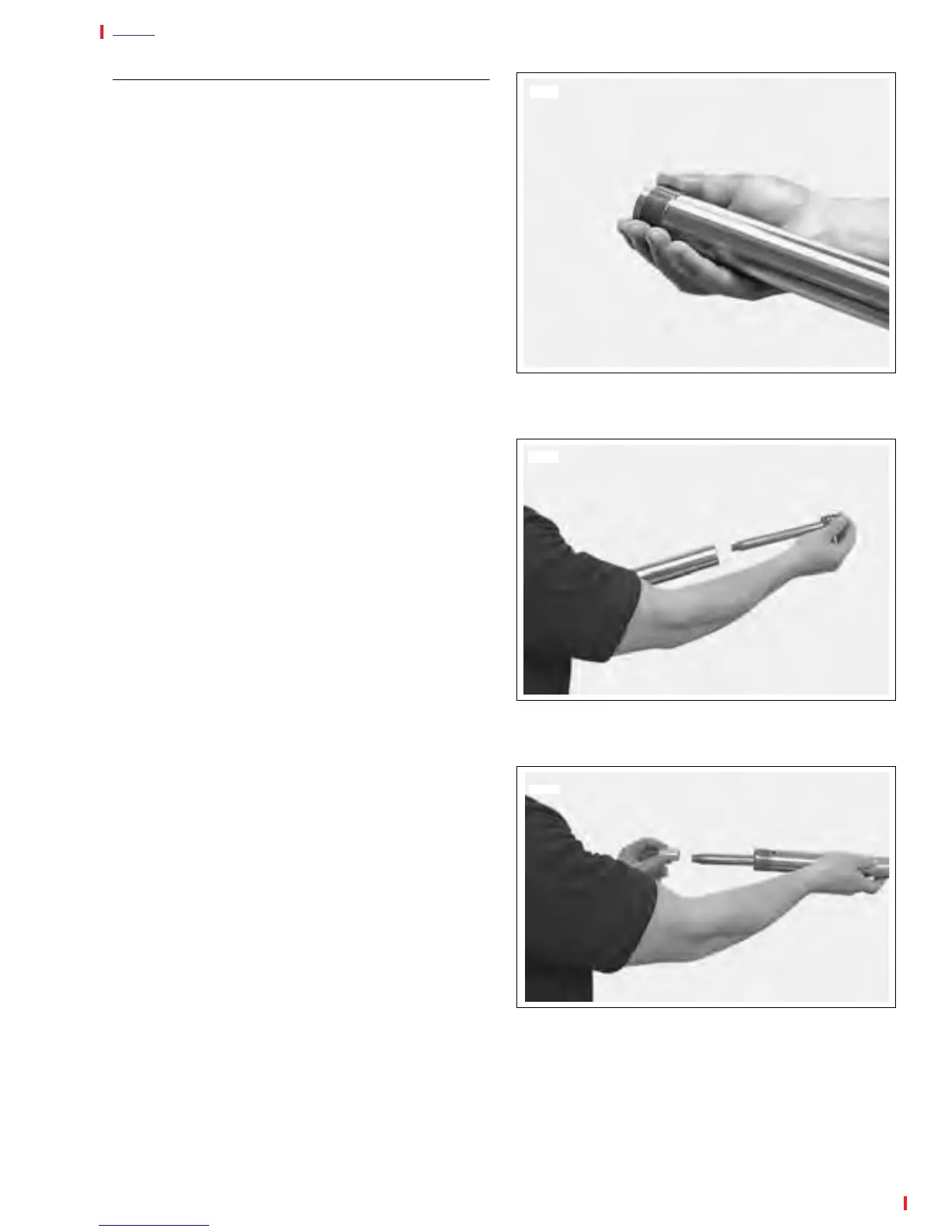

Figure 2-70. Install Slide Bushing
Figure 2-71. Damper Assembly
Figure 2-72. Lock Piece
3782
3794
3791
