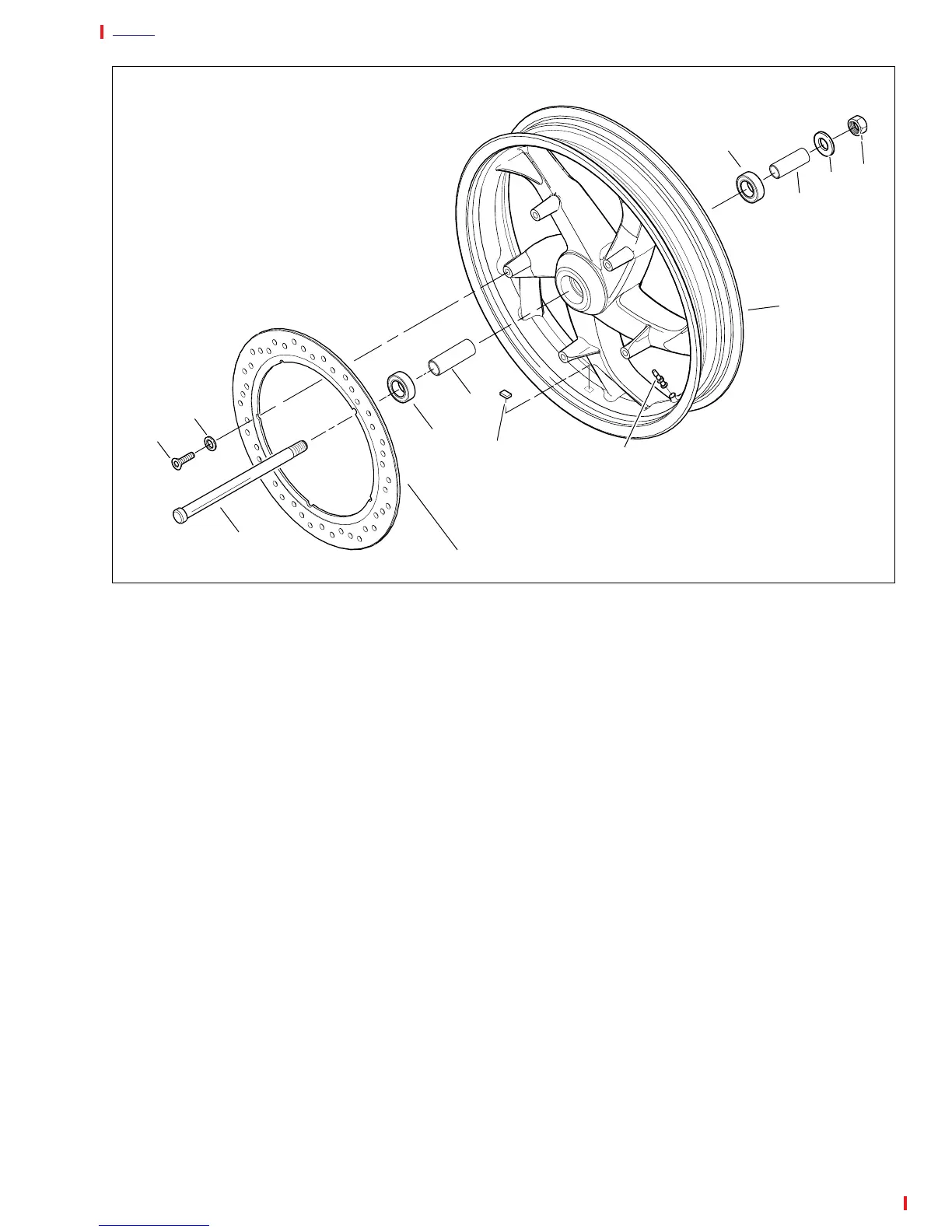

Figure 2-6. Front Wheel Assembly
a0161a2x
1
4
2
9
12
10
3
5
6
8
7
1. Nut (metric)
2. Left Axle Spacer
3. Wheel Bearing
4. Wheel
5. Valve Stem
6. Wheel Weight
7. Axle Spacer, Center
8. Wheel Bearing
9. Front Axle
10. Brake Rotor Bolt (5)
11. Brake Rotor Washer (5)
12. Front Brake Rotor
13. Washer
11
1
13
