Buell 2002 P3 - 1.13 REAR SHOCK ABSORBER

2002 Buell P3: Maintenance 1-23
HOME
REAR SHOCK ABSORBER 1.13
GENERAL
Inspect rear shock absorber for proper operation and for oil
leaks. Inspect rubber shock eye bushings for deterioration:
● At every 10,000 mile (16,000 km) service interval.
NOTE
Rear shock absorber contains no user serviceable parts.
Replace the shock absorber if it fails.

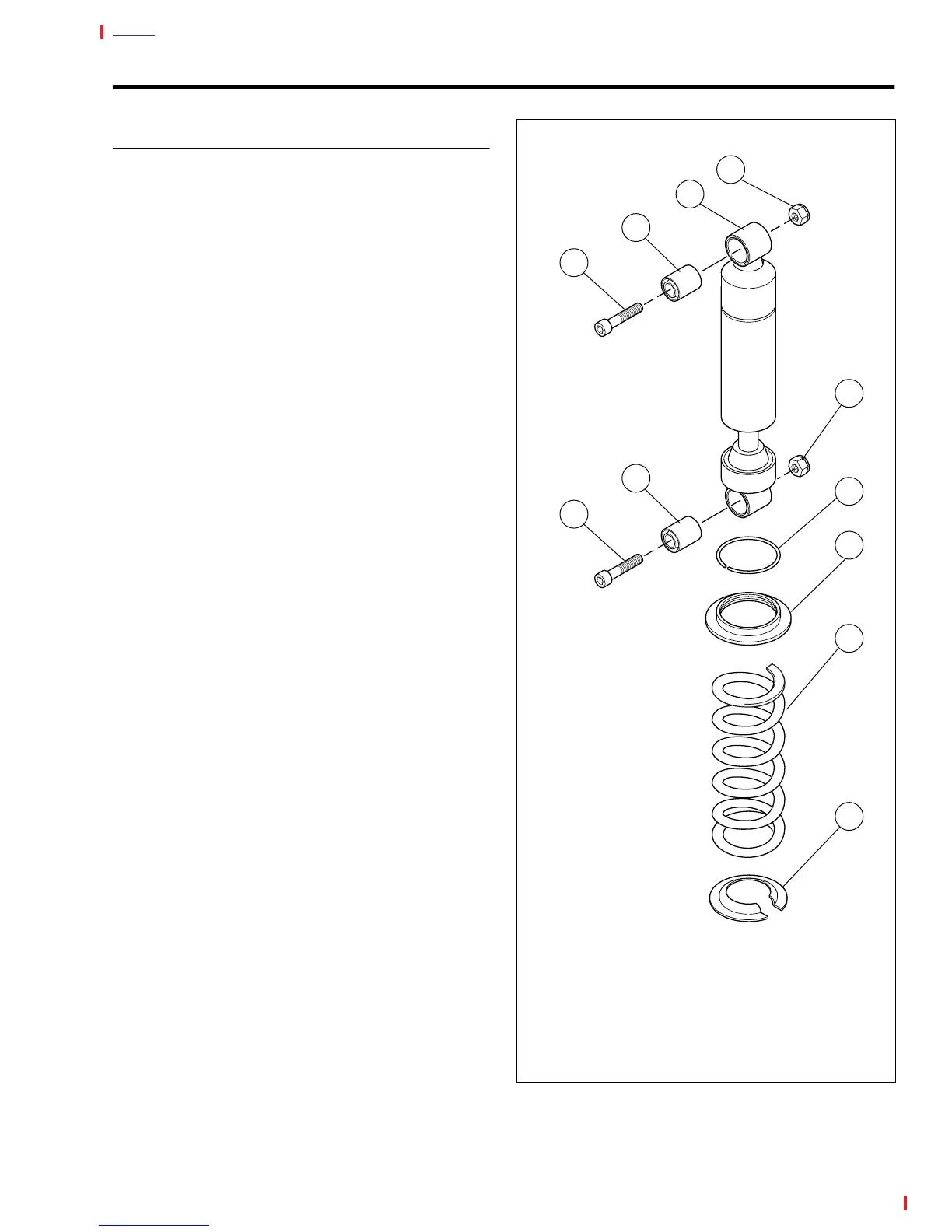

Figure 1-24. Rear Shock Absorber Assembly
1. Bolt
2. Damper Bushing
3. Damper
4. Nut
5. Stopper Ring
6. Spring Seat
7. Spring
8. Spring Seat Stopper
a0015xSx
1
2
3
4
1
2
4
5
6
7
8
