FRONT FORK DISASSEMBLY
1. Remove front forks.
2. See Figure 2-58. Clamp the fork in a vise with front fork
holding tool (part no. B-4177).
3. See Figure 2-59. Remove slider tube cap.
4. See Figure 2-60. Push down on the B-spring seat (O-
ring included) and remove the stopper ring and spring
seat.

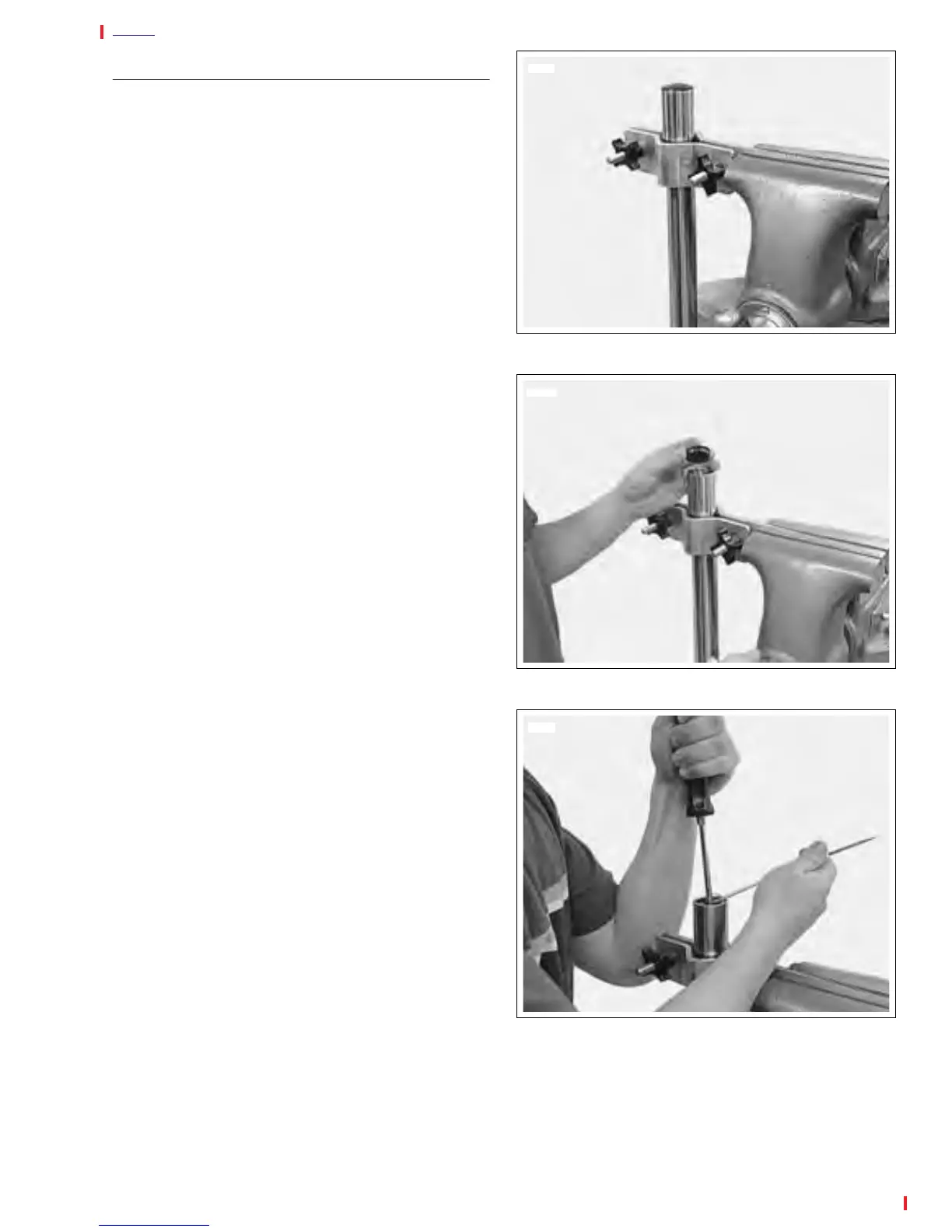

Figure 2-58. Clamping the Fork
Figure 2-59. Slider Tube Cap
Figure 2-60. B-Spring Seat
3767
3768
3769
