Buell 2002 P3 - 7.19 TURN SIGNALS

2002 Buell P3: Electrical 7-51
HOME
TURN SIGNALS 7.19
REMOVAL
NOTE
Remove screw on back of turn signal to detach lens and
install new turn signal bulbs.
Front bulbs are identical to rear bulbs.
Front
1. Remove four screws, washers and windscreen. See 2.26
WINDSCREEN.
2. See Figure 7-69. Disconnect two bullet connectors on
turn signal wires.
3. See Figure 7-70. Remove nut and lockwasher
4. Remove turn signal from headlamp bracket.
5. Repeat steps 2-4 for other turn signal.
Rear
1. Cut cable strap that secures bullet connectors under tail
section.
2. See Figure 7-72. Disconnect two bullet connectors on
turn signal wires.
3. See Figure 7-71. Remove nut and lockwasher.
4. Remove turn signal from tail lamp bracket.
5. Repeat steps 2-4 for other turn signal.
INSTALLATION
Front
1. See Figure 7-70. Install turn signal with lockwasher and
nut. Tighten nut to 25-28 in-lbs (2.8-3.2 Nm).
NOTE
Install turn signal with lens drain hole facing downward.
2. Attach two bullet connectors on turn signal wires as
shown in Figure 7-69.
3. Install four screws, washers and windscreen. See 2.26
WINDSCREEN.
11WARNING1WARNING
Check for proper turn signal operation before riding
motorcycle. Visibility is a major concern for motorcy-
clists. Failure to have proper turn signal operation could
result in death or serious injury.
4. Check turn signals for proper operation. If operation fails,
reread procedure and verify that all steps were per-
formed.
a. Turn ignition key switch to IGN.
b. Activate left turn signals using switch on left handle-
bar. Front and rear left turn signals must flash.
c. Activate right turn signals using switch on left han-
dlebar. Front and rear right turn signals must flash.
d. Turn ignition key switch to OFF.

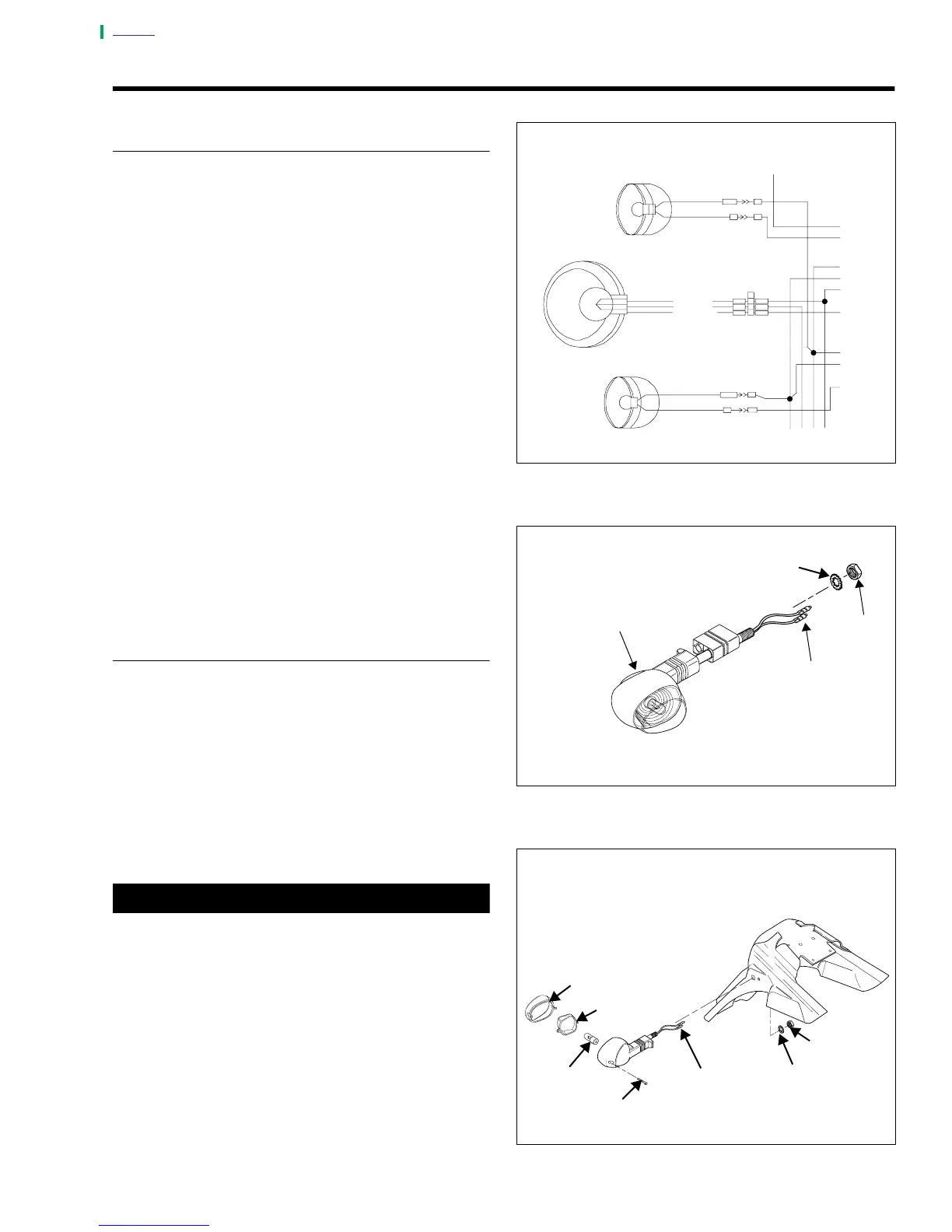

Figure 7-69. Front Turn Signal Connections
Figure 7-70. Front Turn Signals
Figure 7-71. Rear Turn Signals
S5
S9
S4
W
BK
Y
2
3
4
BN
KB
HIGH BEAM
LOW BEAM
LMP GROUND
BE
R/BK
W
BK
Y
BK
V
BE
LT.BE
1
a0255x7x
Headlamp
[38]
Right Front Directional Lamp
Left Front Directional Lamp
a0256x7x
Front Turn Signal
Assembly
Bullet
Connectors (2)
Lockwasher
Nut
a025x7x
Outer Lens
Inner Lens
Bulb
Screw
Bullet
Lockwasher
Nut
Connectors (2)
