ENGINE INSTALLATION 3.4
INSTALLING ENGINE
1. Ensure cradle is secured under engine.
2. See Figure 3-21. Install side stand and bracket assem-
bly. See 2.29 SIDE STAND.
a. Apply several drops of LOCTITE
®
THREAD-
LOCKER 262 (red) to last few threads.
b. Tighten to 38-41 ft-lbs (51-55 Nm).
3. Install rear wheel. See 2.6 REAR WHEEL.
See Figure 3-22. Install swingarm pivot shaft and rear
wheel as an assembly. See 2.19 SWINGARM.
a. Tighten to 24-26 ft-lbs (32-35 Nm).
4. See Figure 3-23. Install swingarm pinch bolt.
a. Apply several drops of LOCTITE
®
THREAD-
LOCKER 243 (blue) to last few threads.
b. Tighten to17-19 ft-lbs (23-26 Nm).

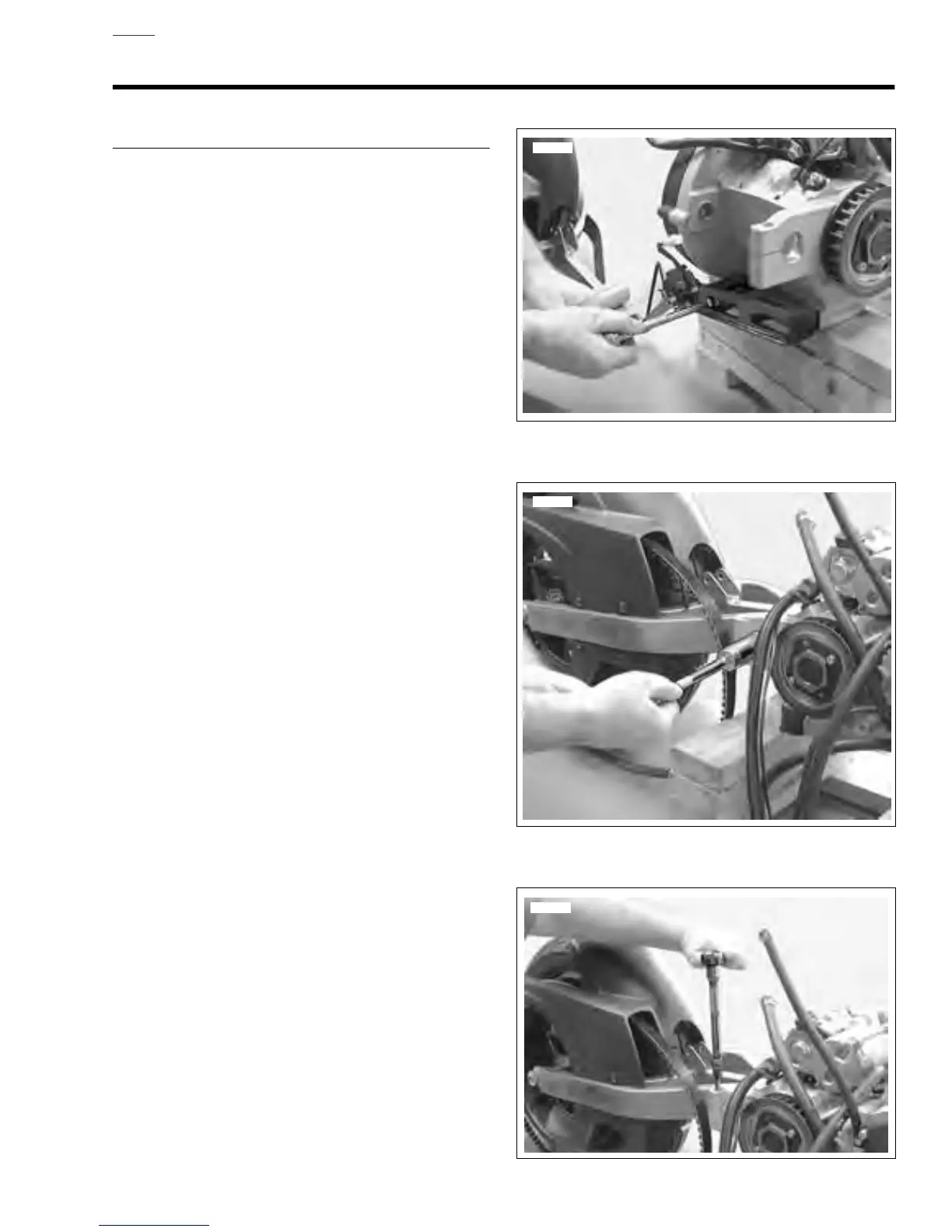

Figure 3-21. Side Stand Bracket
Figure 3-22. Swingarm Pivot Shaft
Figure 3-23. Pinch Bolt
7656
7655
7654
