3-14 2002 Buell P3: Engine
HOME

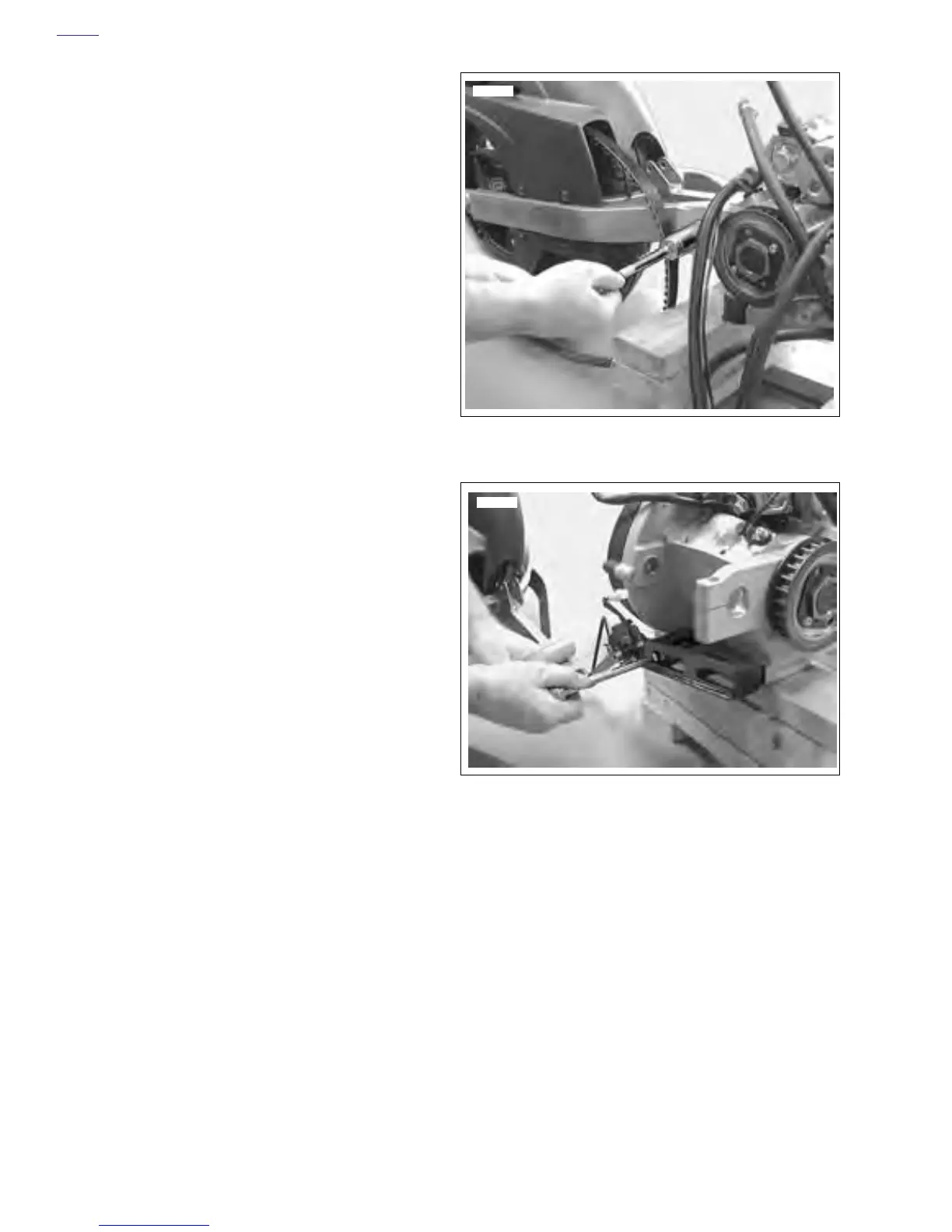

33. See Figure 3-19. Remove swingarm pivot shaft and rear
wheel as an assembly. See 2.19 SWINGARM.
34. See Figure 3-20. Remove side stand and bracket
assembly. See 2.29 SIDE STAND
Figure 3-19. Swingarm Pivot Shaft
Figure 3-20. Side Stand Bracket
7655
7656
