3. Place new hardened washers on sprocket.
4. Position sprocket cover over washers and install to
sprocket with five new sprocket bolts. Tighten sprocket
bolts to 18-22 ft-lbs (24-30 Nm).
5. See Figure 2-9. Install brake rotor (9) to wheel.
a. Verify that the brake rotor is thoroughly clean.
b. Apply LOCTITE THREADLOCKER 272 (red) to
threads of each of the five T40 TORX screws (8).
c. Install rotor (9) on wheel hub. Tighten TORX screws
in criss-cross pattern to 24-27 ft-lbs (33-37 Nm).

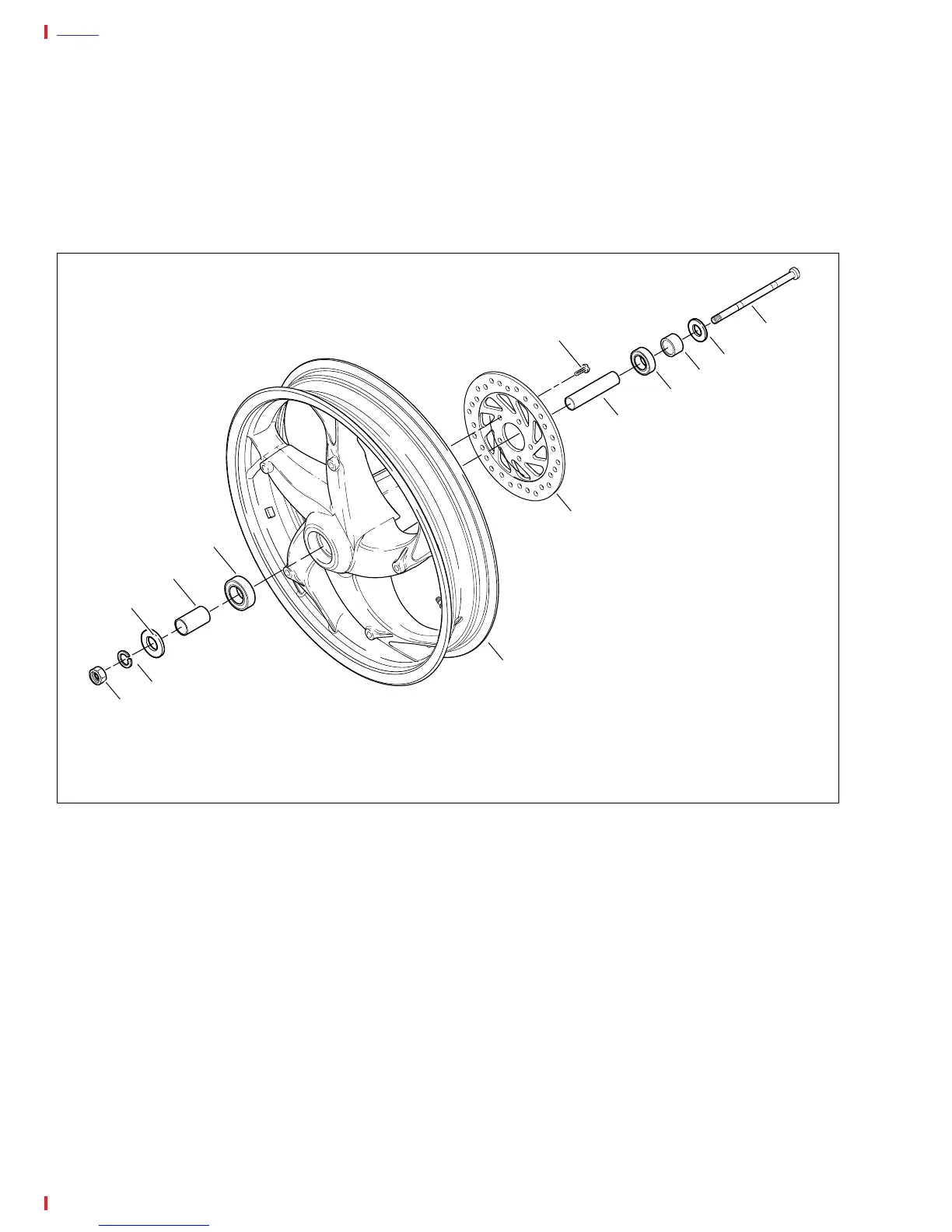

Figure 2-9. Rear Wheel Assembly
2
4
7
5
3
9
6
12
1
8
10
1. Nut (metric)
2. Left Axle Spacer
3. Wheel Bearing (Left side)
4. Wheel
5. Axle Spacer, Center
6. Wheel Bearing
7. Rear Axle
8. Brake Rotor Screw (5)
9. Rear Brake Rotor
10. Right Axle Spacer
11. Lockwasher
12. Right Axle Spacer
a0079x2x
11
11
