DIODES 7.12
REMOVAL
1. Remove seat. See 2.28 SEAT.
11WARNING1WARNING
To protect against shock and accidental start-up of vehi-
cle, disconnect the negative battery cable before proced-
ing. Inadequate safety precautions could result in death
or serious injury.
2. Disconnect negative battery cable from battery.
3. See Figure 7-42. Both diodes are mounted in the fuse
block under the seat.
4. Remove faulty diode by pulling it straight up off the relay
block.
INSTALLATION
1. See Figure 7-42. Install the new diodes into position on
the fuse block by pushing it into the slot.
2. Connect negative battery cable to battery terminal.
Tighten fastener to 60-96 in-lbs (7-11 Nm).
11WARNING1WARNING
After installing seat, pull upward on front of seat to be
sure it is locked in position. If seat is loose, it could shift
during vehicle operation and startle the rider, causing
loss of control of vehicle and death or serious injury.
3. Install seat. See 2.28 SEAT.

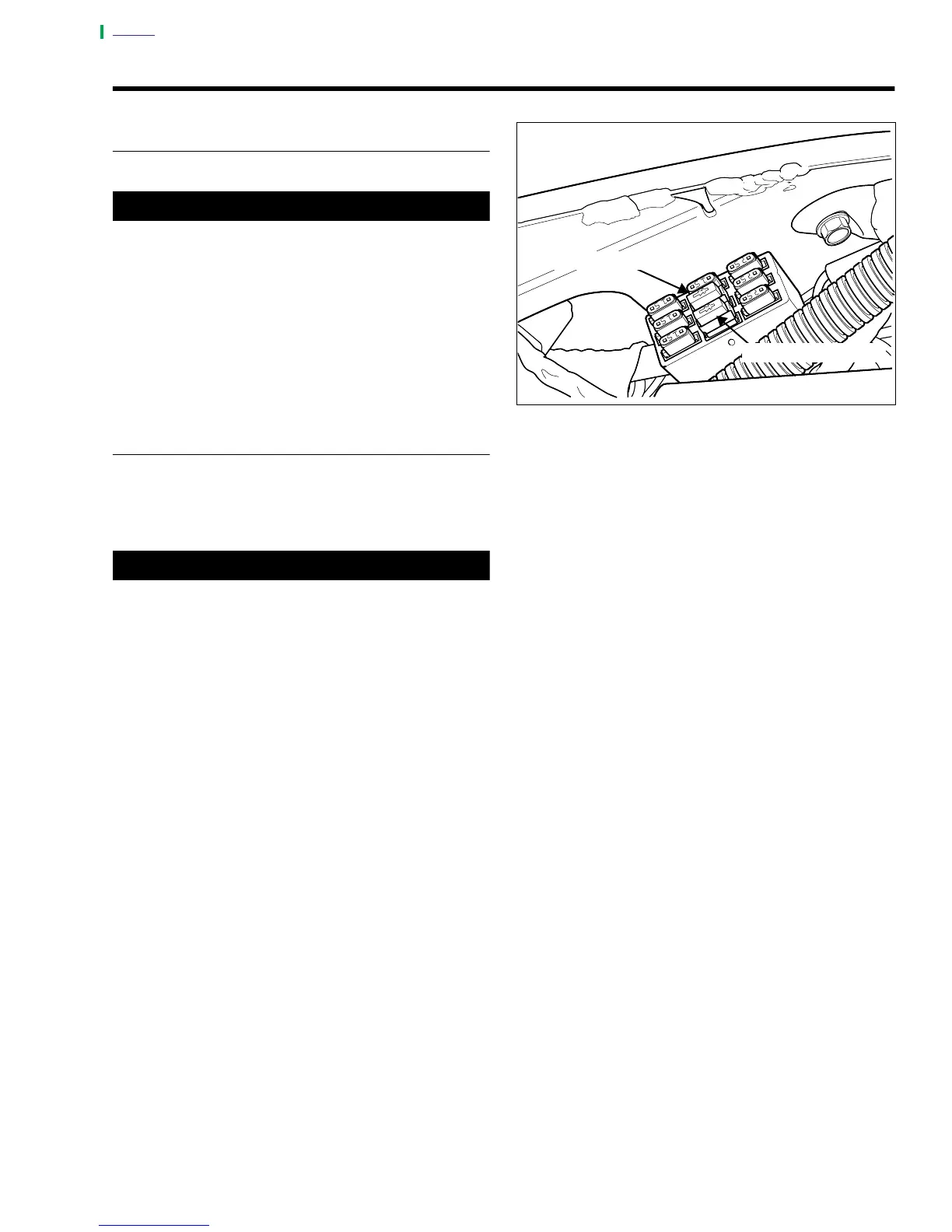

Figure 7-42. Diode Location in Fuse Block
Starter Circuit Diode
Ignition Circuit Diode
a0285x7x
