TRANSMISSION DISASSEMBLY 6.9
CASE REMOVAL
NOTES
●
If transmission only is being serviced, do not remove fly-
wheel assembly.
●
For crankcase, flywheel or other major servicing, the fly-
wheel assembly can be removed at any time. The same
specialty tools are used.
1. See Figure 6-36. Remove transmission case. See 6.8
TRANSMISSION CASE
2. See Figure 6-36. Split crankcases in half. See 6.8
TRANSMISSION CASE.
3. Remove crankcase and transmission assembly from
engine stand.
4. See Figure 6-37. Place crankcase (3) and transmission
assembly (4) into fixture on arbor press (1).
a. Support transmission assembly on parallel supports
(5).
5. Press transmission assembly using TRANSMISSION
REMOVER (2) (Part No. B-43895-1) to remove transmis-
sion assembly from crankcase half.
6. Remove crankcase from fixture.

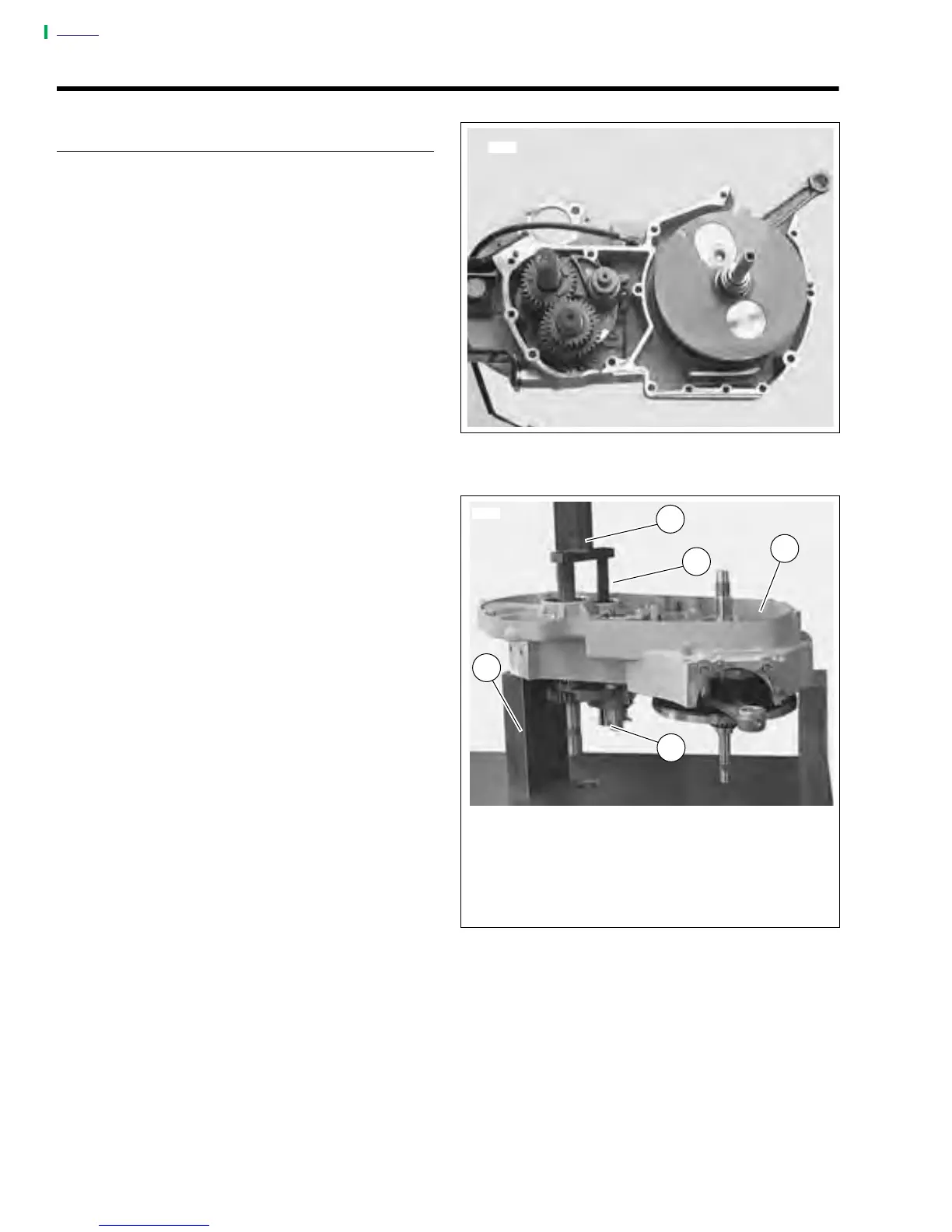

Figure 6-36. Transmission Assembly
Figure 6-37. Transmission Remover/Installer on Fixture
7693
7737
1. Arbor Press
2. Transmission Remover (Part no. B-43985-1)
3. Crankcase
4. Transmission Assembly
5. Parallel Supports
1
4
5
2
3
