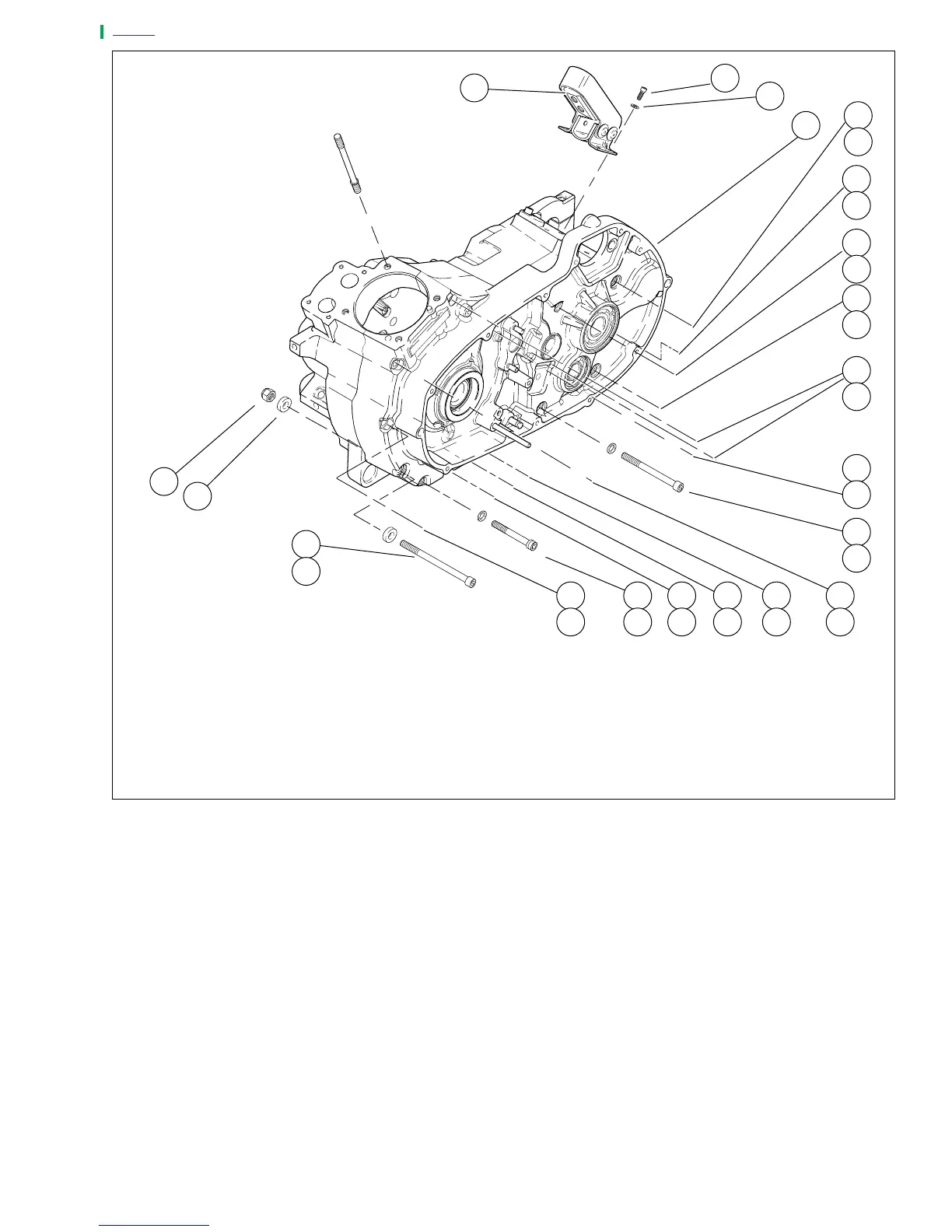

Figure 3-35. Crankcase Hardware
1. Crankcase Set
2. Bottom Case T40 TORX Bolt – 5/16-18 X 3-1/2 in. long (5)
3. Washer 21/64 x 9/16 x 19 (14)
4. Hex Socket Head Screw – 3/8-16 X 4-1/2 in. long (1)
5. Spacer (1)
6. Washer - 3/8 I.D. X 13/16 O.D. (1)
7. Nyloc, Hex Locknut - 3/8-16
8. Hex Socket Head Screw – 5/16-18 X 2-1/2 in. long (9)
9. Rear Isolator
10. Screw (4)
11. Washer (4)
