FENDERS 2.23
FRONT FENDER REMOVAL
1. Raise front wheel off ground.
2. Remove front wheel. See 2.5 FRONT WHEEL.
3. See Figure 2-98. Remove four lower fender mounting
screws.
4. See Figure 2-99. Remove front fender.
FRONT FENDER INSTALLATION
1. Raise front wheel off floor.
2. Align front fender mounting holes with front fork bracket.
NOTE:
The longer end of the fender faces away from the front
end.
3. Apply LOCTITE THREADLOCKER 243 (Blue) to first few
threads of four fender mounting screws.
4. See Figure 2-98. Install front fender with four fender
mounting screws.
5. Tighten fender mounting screws to 27-30 in-lbs (3.1-
3.4 Nm).
REAR FENDER REMOVAL
1. Remove seat. See 2.28 SEAT.
2. Remove right side footpeg support. See 2.21 FOOT-
PEGS AND FOOTPEG SUPPORT BRACKETS.
3. See Figure 2-100. Remove rear fender mounting screws
and washers from rear fender.
4. Remove rear fender.
REAR FENDER INSTALLATION
1. Position rear fender.
2. Install rear fender mounting screws, washers and well-
nuts on rear fender.
3. Tighten rear fender mounting screws to 30-36 in-lbs (3-
4 Nm).
4. Install right side footrest support bracket. See 2.21
FOOTPEGS AND FOOTPEG SUPPORT BRACKETS.
5. Install seat. See 2.28 SEAT.
11WARNING1WARNING
After installing seat, pull upward on front of seat to be
sure it is locked in position. If seat is loose, it could shift
during vehicle operation, causing loss of control of vehi-
cle and death or serious injury.

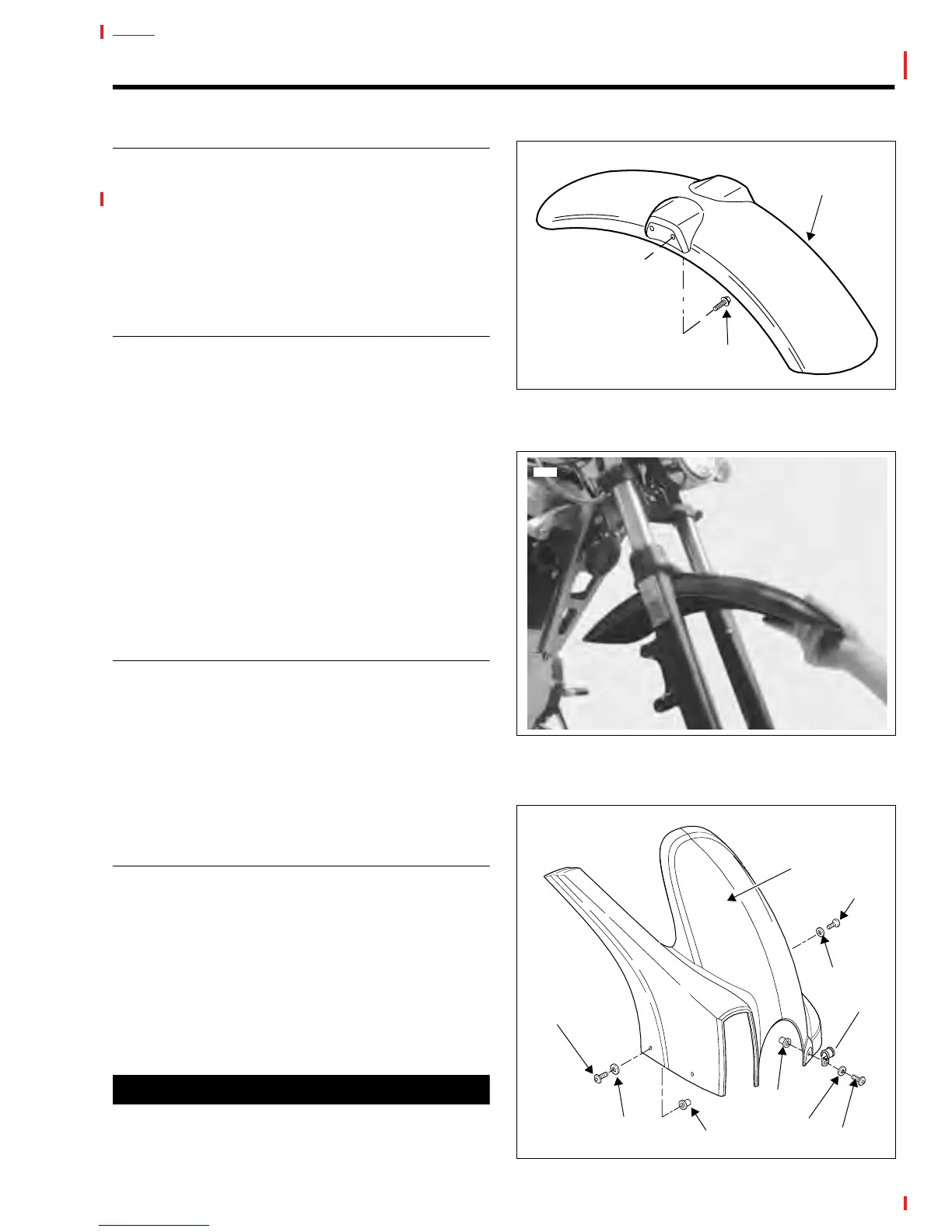

Figure 2-98. Front Fender Assembly
Figure 2-99. Removing Front Fender
Figure 2-100. Rear Fender Assembly
a0129a2x
Front Fender
Mounting
Screws (4)
3804
a0012xSx
Well Nut
Clamp
Rear Fender
Screw
Washer
Screw
Washer
Washer
Screw
Well Nut
