SPROCKET COVER 2.22
REMOVAL
1. See Figure 2-96. Remove master cylinder bolts and
spacers.
2. Remove rear pedal bolt and move pedal assembly down-
away from support bracket.
3. See Figure 2-97. Remove the three screws and washers
on sprocket cover.
4. Slide cover free.
INSTALLATION
1. Apply LOCTITE THREADLOCKER 243 (Blue) to threads
of three screws.
2. Position sprocket cover and install three screws and
washers. Tighten fasteners to 30-36 in-lbs (3-4 Nm).
3. Move pedal assembly in position and install pedal bolt.
Torque pedal bolt to 6-8 ft-lbs (8-11 Nm).
4. Install master cylinder bolts and spacers. See 2.13
REAR BRAKE MASTER CYLINDER.

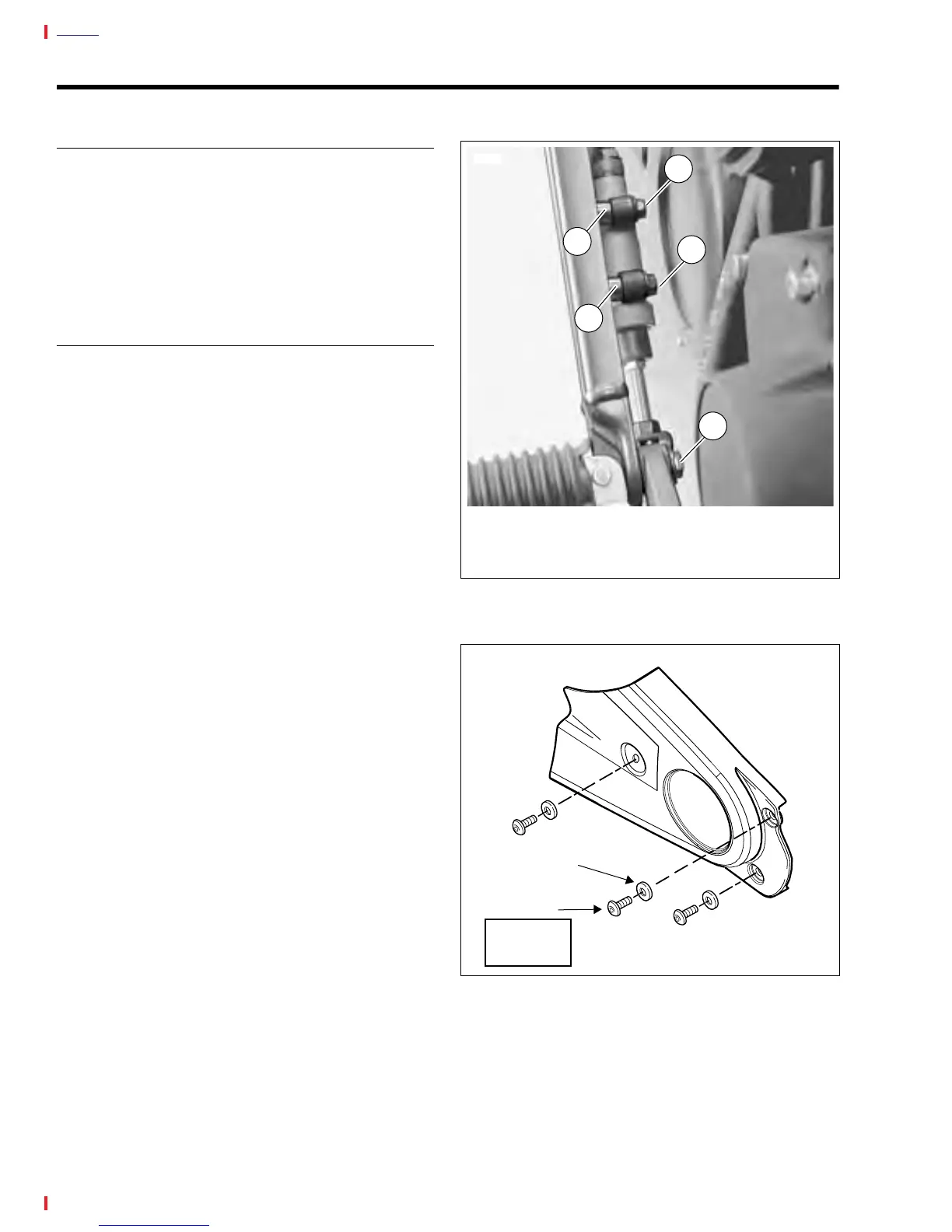

Figure 2-96. Master Cylinder Mounting
Figure 2-97. Sprocket Cover
7704
1
1
2
2
3
1. Bolts
2. Spacers
3. Pedal Bolt
a0131x2x
Screws (3)
Nylon
Washers (3)
30-36 in-lbs
(3.4-4.1 Nm)
Blue Loctite
