3-44 2002 Buell P3: Engine
HOME
OIL HOSE ROUTING 3.8
GENERAL
See Figure 3-83. Engine oil runs through the frame backbone
which serves as the oil reservoir. From the bottom of the res-
ervoir, the vent hose and the return hose run downward
below the battery tray. A rubberized clamp secure the hoses
in place.
See Figure 3-83. A T-fitting on the bottom left side of the oil
reservoir, supplies the feed hose and the oil drain hose. See
Figure 3-84. The drain hose attaches to the left side of the
footpeg support bracket frame.
See Figure 3-85. The feed and return hoses run together
alongside the engine and forward to the oil pump. The feed
hose attaches to the rear most oil pump fitting; the return
hose connects forward and above.
See Figure 3-86. After diverging from the feed and return
hoses, the vent hose continues on to the right side of the
motorcycle. Here the vent hose connects to an elbow fitting
on the gearcase cover.

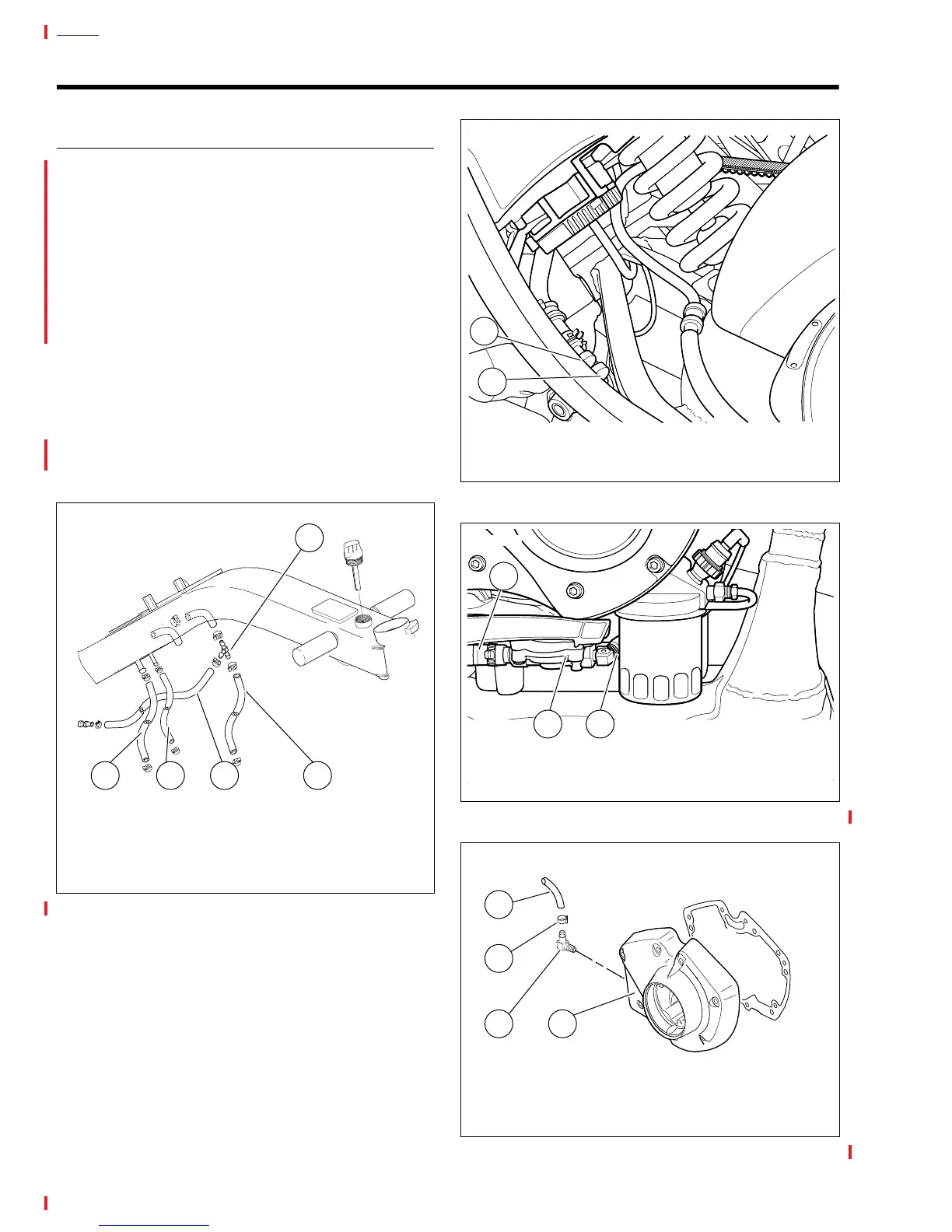

Figure 3-83. Oil Reservoir Hose Assembly
a0027a3x
1. Feed Hose
2. Drain Hose
3. Vent Hose
4. Return Hose
5. T-fitting
2 14 3
5
Figure 3-84. Drain Hose
Figure 3-85. Oil Pump Connections
Figure 3-86. Vent Hose Connection
a0025x3x
1. Breather Hose
2. Drain Hose
1
2
a0024x3x
1. Feed Hose
2. Oil Pump
3. Steel line connection
1
2 3
a0026x3x
1. Vent Hose
2. Clamp
3. Elbow Fitting
4. Gearcase Cover
1
2
3 4
