IGNITION/HEADLAMP KEY SWITCH 7.6
GENERAL
11WARNING1WARNING
DO NOT modify the ignition/headlamp switch wiring to
circumvent the automatic-on headlamp feature. Visibility
is a major concern for motorcyclists. Failure to have
proper headlamp operation could result in death or seri-
ous injury.
See Figure 7-13. The four-position combination ignition/head-
lamp key switch is not repairable. Replace the unit if it fails.
Switch positions are explained in the table below.
CAUTION
When turning off the ignition, verify that the key is
removed in the OFF or FORK LOCK position and that the
lights are not left on. If the rider stops the engine and
inadvertently removes the key in the PARK position, the
battery will be drained of its charge if the vehicle is left
standing too long.
NOTE
The key locks the ignition system and is removable in both
the OFF, FORK LOCK and P (PARK) positions. The PARK
position is located between the OFF and IGNITION positions
and allows the rider to remove the key while leaving the lights
on. When the key is placed in the PARK position, several indi-
cator markers are or can be activated. See the table to the
right
REMOVAL
1. Remove seat. See 2.28 SEAT.
11WARNING1WARNING
To protect against shock and accidental start-up of vehi-
cle, disconnect the negative battery cable before proced-
ing. Inadequate safety precautions could result in death
or serious injury.
2. Disconnect negative battery cable from battery terminal.
3. Remove four screws and washers to detach windscreen
from mounting brackets. See 2.26 WINDSCREEN.
4. See Figure 7-14. Cut cable tie and disconnect ignition
key switch connector [33] from main wiring harness.
Note location of cable tie.
5. Remove two headlight bucket bolts and headlamp
bucket. See 7.17 HEADLAMP.
6. Remove two bolts and ignition key switch.

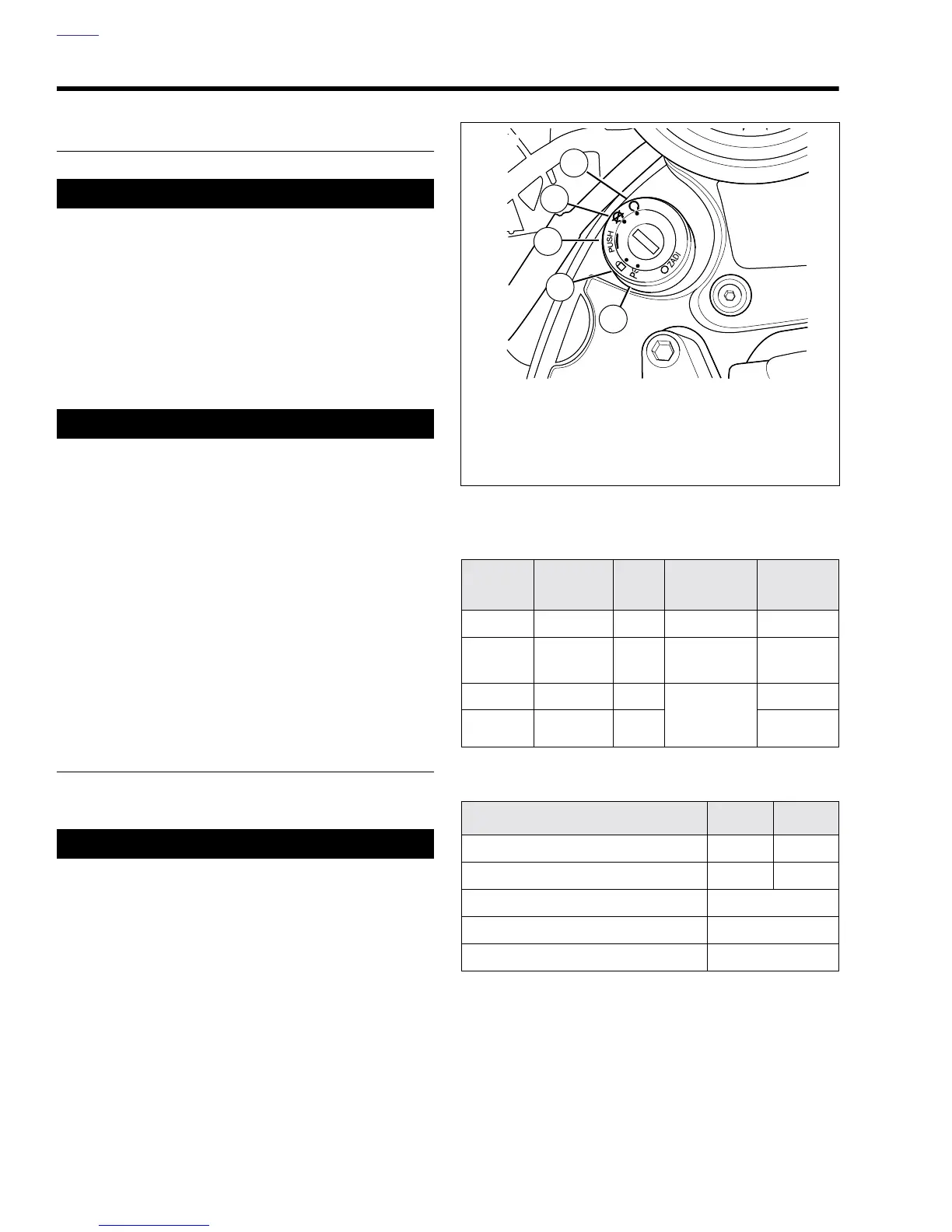

Figure 7-13. Ignition/Headlamp Key Switch
LABEL NAME IGN. LAMPS
REMOVE
KEY
OFF Off off off yes
Fork Lock
off
off
yes
PParkoffSee note &
the table
below.
yes
IGN Ignition
on no
ITEM P IGN
Headlamp High/Low Beam off on
Speedometer Illumination Lamp on on
Stop Lamp can be activated
Front and Rear Turn Signals can be activated
Horn can be activated
1. Ignition/Light Position
2. OFF Position
3. Push Detent
4. Fork Lock
5. P (Park) Position
a0001xox
3
5
4
1
2
