2002 Buell P3: Drive/Transmission 6-3
HOME
PRIMARY CHAIN 6.2
GENERAL
An opening between the primary drive and transmission com-
partments allows the same lubricant supply to lubricate mov-
ing parts in both compartments.
Since the primary chain runs in lubricant, little service will be
required other than checking lubricant level and chain ten-
sion. If, through hard usage, the primary chain does become
worn, it must be replaced. Remove and install the chain fol-
lowing the procedure under 6.6 PRIMARY DRIVE/CLUTCH.

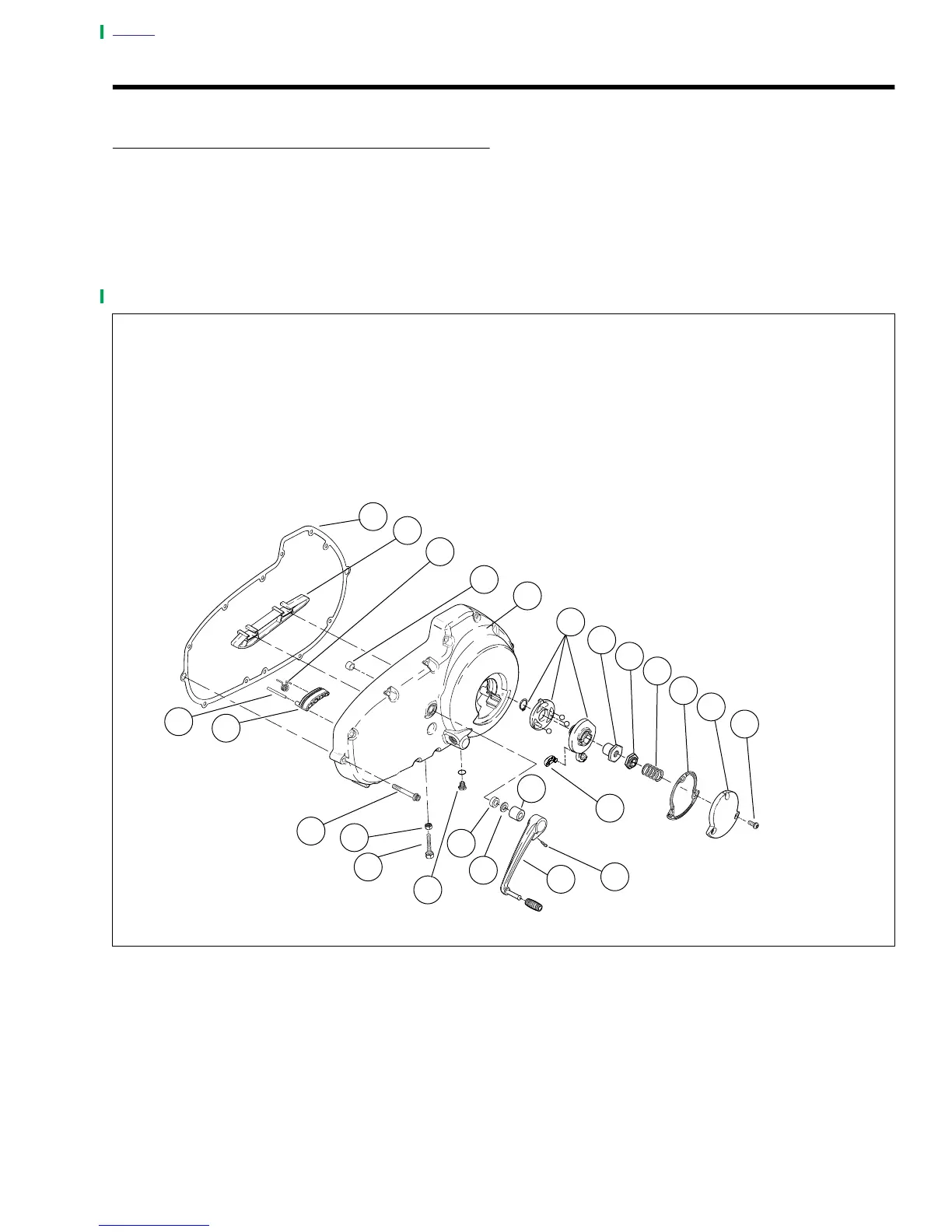

Figure 6-1. Primary Cover and Shifter Assembly
1. TORX Screw with Washers (3)
2. Clutch Inspection Cover
3. Clutch Cover Gasket
4. Spring
5. Lockplate
6. Nut
7. Ramp Assembly
8. Primary Cover
9. Bushing
10. Spring
11. Chain Guide
12. Gasket
2
3
4
5
6
7
10
12
18
a0104x6x
8
9
11
24
13. Pin
14. Shoe
15. Screw
16. Locknut
17. Chain Limiting Screw
18. Drain Plug and O-ring
19. Oil Seal
20. Rubber Washer
21. Splined Collar
22. Pinch Screw
23. Shift Lever
24. Coupling
22
15
13
16
14
17
1
19
20
21
23
