NOTE
Always install first bearing on primary brake disc side. If front
wheel has two brake discs, install bearing on the left side first.
1. Obtain WHEEL BEARING INSTALLER/REMOVER (Part
No. B-43933) and assemble.
a. Sparingly apply graphite lubricant to threads of
threaded rod to prolong service life and ensure
smooth operation.
b. See Figure 2-15. Place threaded rod through sup-
port plate. Insert assembly through wheel.
c. See Figure 2-16. Place the new bearing (6) on rod
(1) with lettered side outward.
d. Install pilot (5), Nice bearing (4), washer (3) and nut
(2) over rod.
2. Hold hex end of threaded rod (1) and turn nut (2) to
install bearing (6). Bearing will be fully seated when nut
can no longer be turned. Remove tool.
3. Install spacer sleeve inside wheel hub.
4. Reverse tool and install opposite side bearing.
PART NO. SPECIALTY TOOL
B-43933 See Figure 2-17. Wheel bearing
installer/remover.

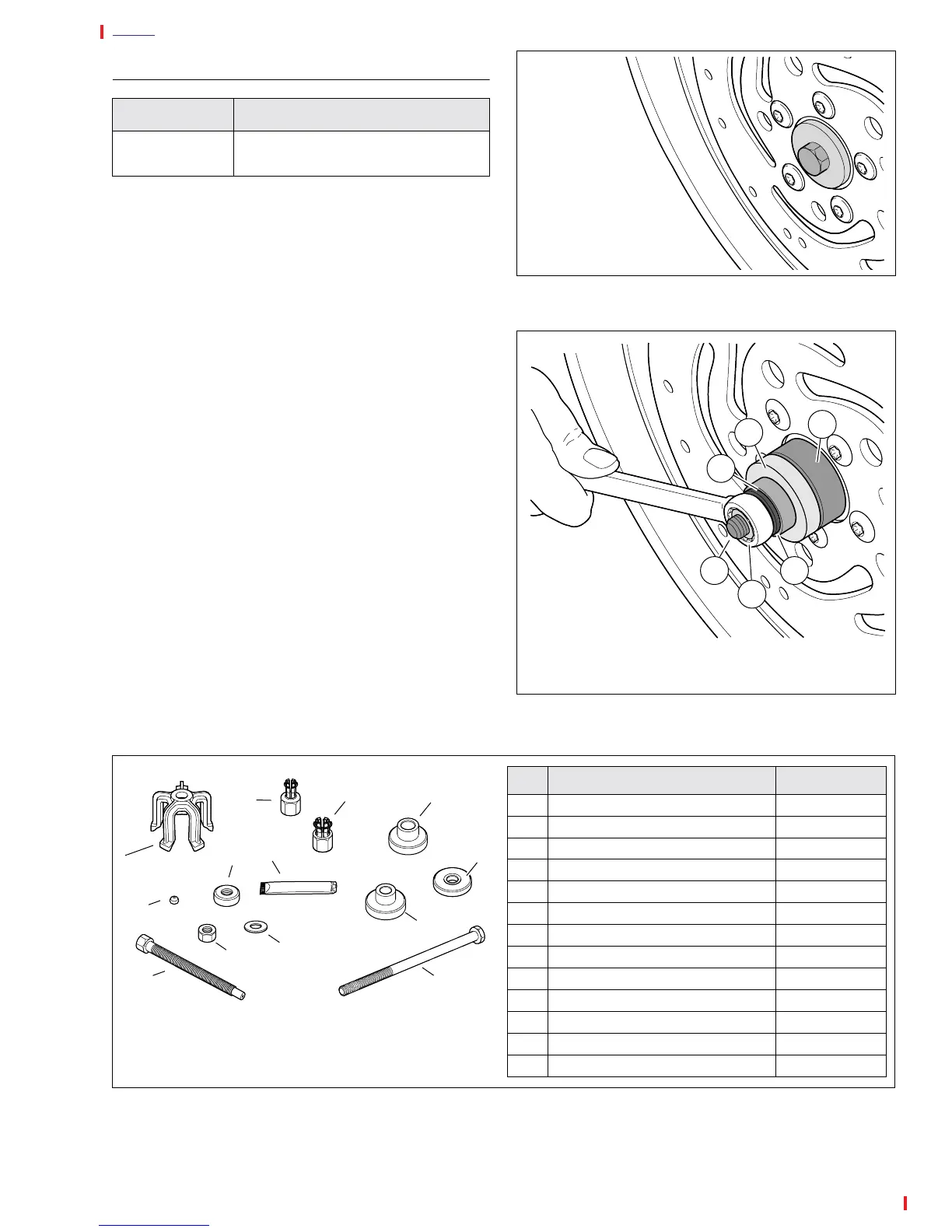

Figure 2-15. Installation Tool Support Plate
Figure 2-16. Installing Bearing
a0202x2x
a0203x2x
1
2
3
5
6
4
1. Threaded Rod
2. Nut
3. Washer
4. Nice Bearing
5. Pilot
6. Wheel Bearing
Figure 2-17. Wheel Bearing Remover/Installer (Part No. B-43933)
NO. DESCRIPTION PART NO.
1Bridge HD-44060-5
2Steel Ball 12547
3Forcing Screw HD-44060-4
4Nut 10210
5Washer 12004
6Nice Bearing RS25100-200
7 Lubricant J-23444A
8Collet, 3/4 in. B-43993-3
9Collet, 1.0 in. B-43993-7
10 Pilot, 1.0 in. B-43993-8
11 Pilot, 3/4 in. B-43993-6
12 Support Plate B-43993-1
13 Threaded Rod 280856
7
6
1
2
3
4
5
8
9
13
11
10
12
Parts 1-7 common to removal/installation.
Parts 8-9 used for removal only.
Parts 10-13 used for installation only.
a0204x2x
