2002 Buell P3: Electrical 7-15
HOME
INSTALLATION
1. Apply LOCTITE THREADLOCKER 243 (Blue) to threads
of two ignition key switch bolts.
2. Install ignition key switch into hole and secure with two
bolts. Tighten bolts to 4-6 ft-lbs (5-8 Nm).
3. See Figure 7-14. Attach ignition key switch connector
[33] to main wiring harness. Secure harness with cable
tie.
4. Install headlight bucket with two bolts. Tighten bolts to
12-14 ft-lbs (16-19 Nm).
5. Cable tie ignition key switch connector [33] to main wir-
ing harness.
6. Install four screws and washers to attach windscreen to
mounting brackets. See 2.26 WINDSCREEN.
7. Install negative battery cable to battery terminal. Tighten
fastener to 60-96 in-lbs (67-11 Nm).
11WARNING1WARNING
After installing seat, pull upward on front of seat to be
sure it is locked in position. If seat is loose, it could shift
during vehicle operation and startle the rider, causing
loss of control of vehicle and result in death or serious
injury.
8. Install seat. See 2.28 SEAT.
11WARNING1WARNING
Check for proper headlamp operation before riding
motorcycle. Visibility is a major concern for motorcy-
clists. Failure to have proper headlamp operation could
result in death or serious injury.
9. Check ignition key switch for proper operation. If opera-
tion fails, reread procedure and verify that all steps were
performed.
a. Turn ignition key switch to OFF. Check all functions
listed in the table on page 5-14.
b. Turn ignition key switch to IGN. Start motorcycle.
See Section 4.
c. Turn ignition key switch to LOCK.

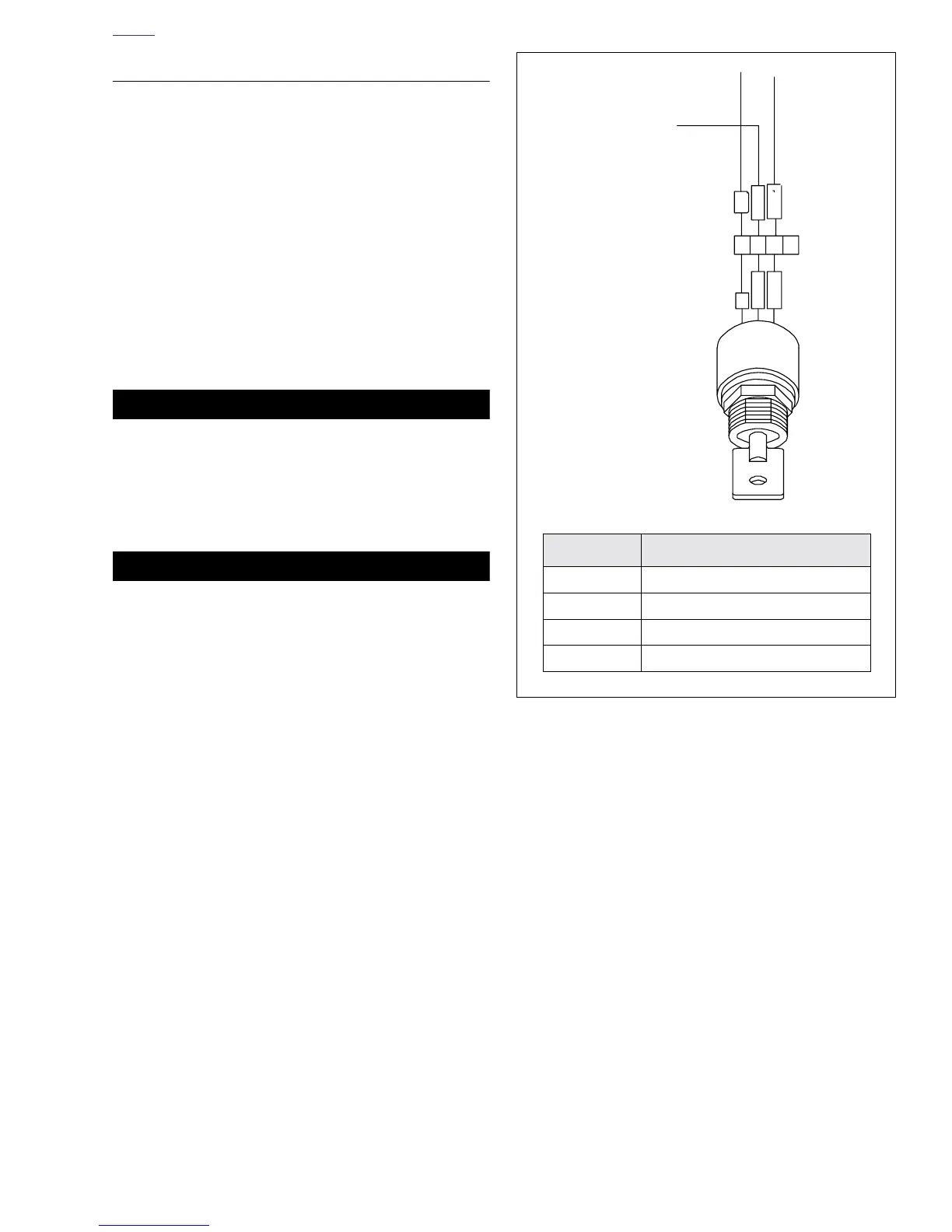

Figure 7-14. Ignition Key Switch Connector [33]
/BRK
R
/BR
R
K
/
RGY
A B C D
/
RGY
a0284x7x
Key Switch
(Typical)
[33]
[33] WIRE TERMINATION
AMaster circuit breaker
BAccessories fuse in fuse block
CIgnition fuse in fuse block
DEmpty
