7-32 2002 Buell P3: Electrical
HOME
Diodes
The relay block contains two diodes. A diode acts as a one
way switch which permits current flow in one direction, but not
in the other.
The reference numbers below correlate with the circled num-
bers in the 7.11 STARTER/IGNITION INTERLOCK flow
charts.
1. Check diode with an ohmmeter as shown in Figure 7-39.
2. Check diode polarity as shown in Figure 7-40.
3. Replace diodes as necessary.

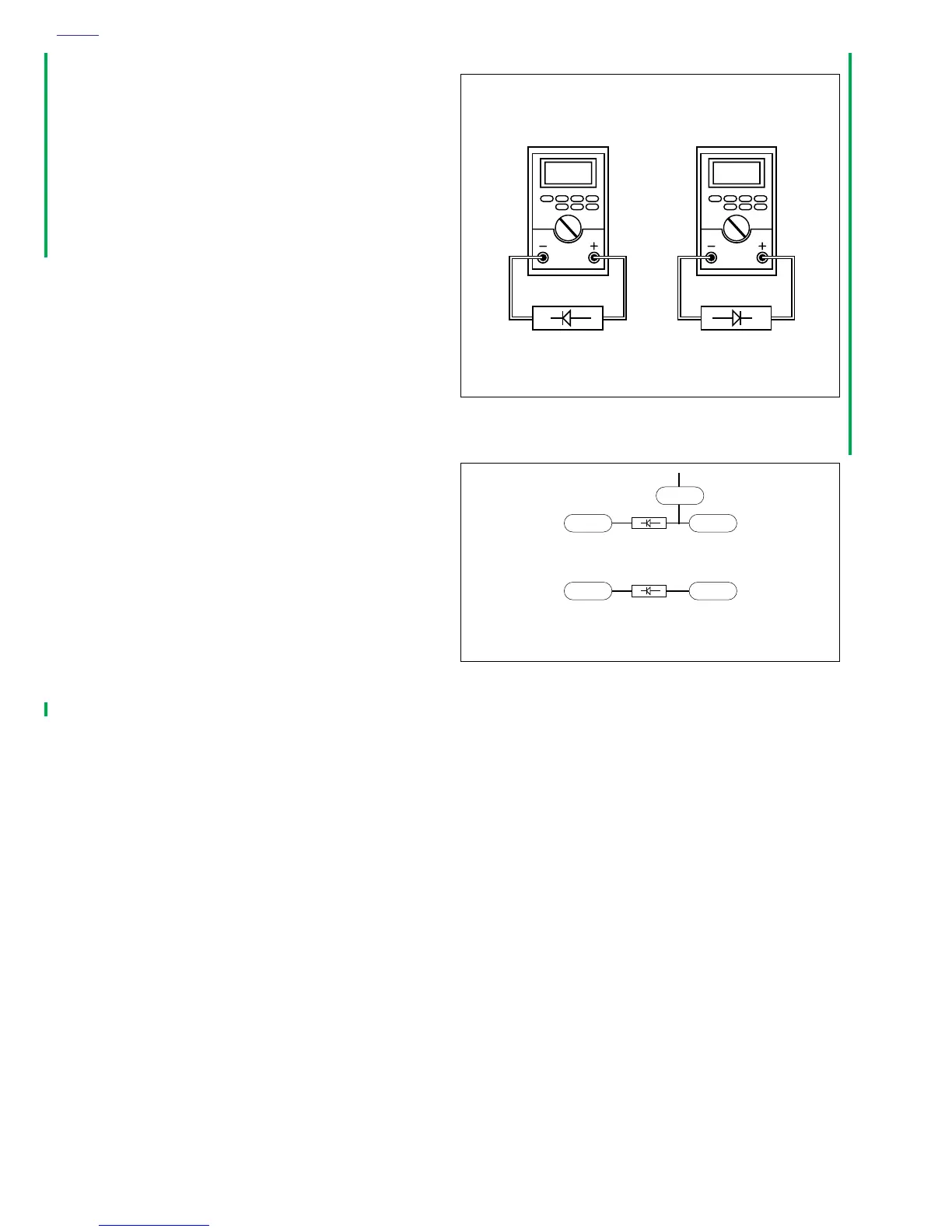

Figure 7-39. Ohmmeter Diode Test
Figure 7-40. Diode Polarity
Continuity Infinite
ohms
a0235x7x
a0236x7x
TN TN/Y
Diode 1 polarity
TN/GN TN/Y
Diode 2 polarity
TN/W
