5. See Figure 3-24. Install rear engine mount.
a. Apply several drops of LOCTITE
®
THREAD-
LOCKER 243 (blue) to last few threads.
b. Tighten to 23-27 ft-lbs (31-37 Nm).
6. See Figure 3-25. Loosely install air cleaner box bracket.
7. Install chassis onto engine by performing the steps
below.
a. See Figure 3-26. Roll chassis toward engine.
b. Lift chassis onto engine.
c. Raise lift.
d. See Figure 3-27. Attach hoist to frame; Place a floor
hoist behind the lift. Attach straps to frame and
hoist. Raise hoist until straps tighten.
8. Place jack under the motor. Use jack to raise motor.
9. Move jack backward.

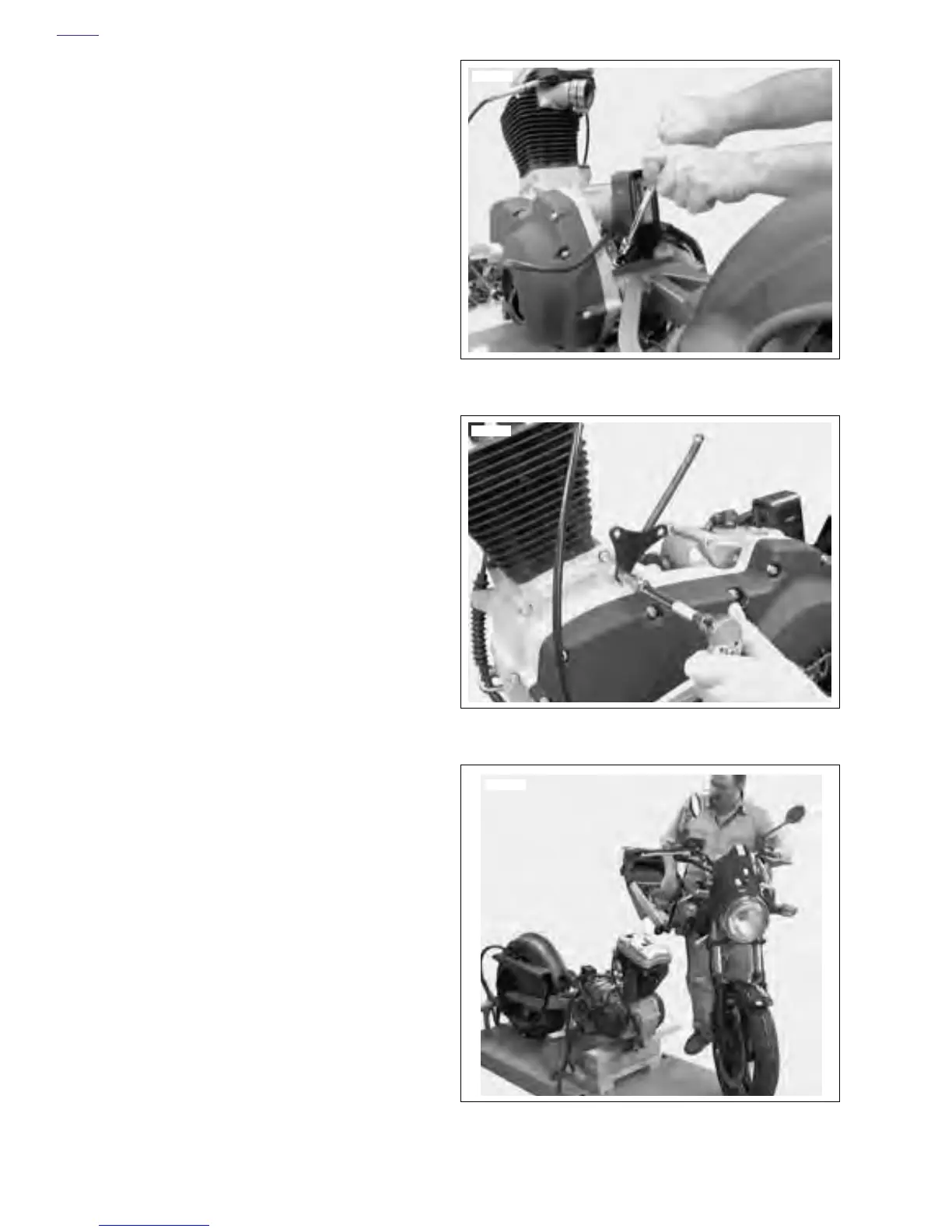

Figure 3-24. Rear Engine Mount
Figure 3-25. Bracket
Figure 3-26. Move Chassis to Engine
