See Figure 2-34. Verify proper operation of the master
cylinder relief port. A plugged or covered relief port can
cause brake drag or lockup, which could result in loss of
vehicle control and death or serious injury
7. See Figure 2-34. Verify proper operation of the master
cylinder relief port.
8. See Figure 2-35. Actuate the brake lever with the reser-
voir cover removed. A slight spurt of fluid will break the
surface if all internal components are working properly.
9. See Figure 2-27. Attach master cylinder cover and cover
gasket with the two cover screws (3). Tighten to 9-13 in-
lbs (1.0-1.5 Nm).
10. Bleed brake system. See 1.6 BRAKE SYSTEM MAIN-
TENANCE.
11WARNING1WARNING
Check for proper brake lamp operation before riding
motorcycle. Visibility is a major concern for motorcy-
clists. Failure to have proper brake lamp operation could
result in death or serious injury.
11. Turn ignition key switch to IGN. Apply brake hand lever to
test brake lamp operation. Turn ignition switch to LOCK.
11WARNING1WARNING
Always test motorcycle brakes at low speed after servic-
ing or bleeding system. If brakes are not operating prop-
erly, or braking efficiency is poor, testing at high speeds
could result in death or serious injury.

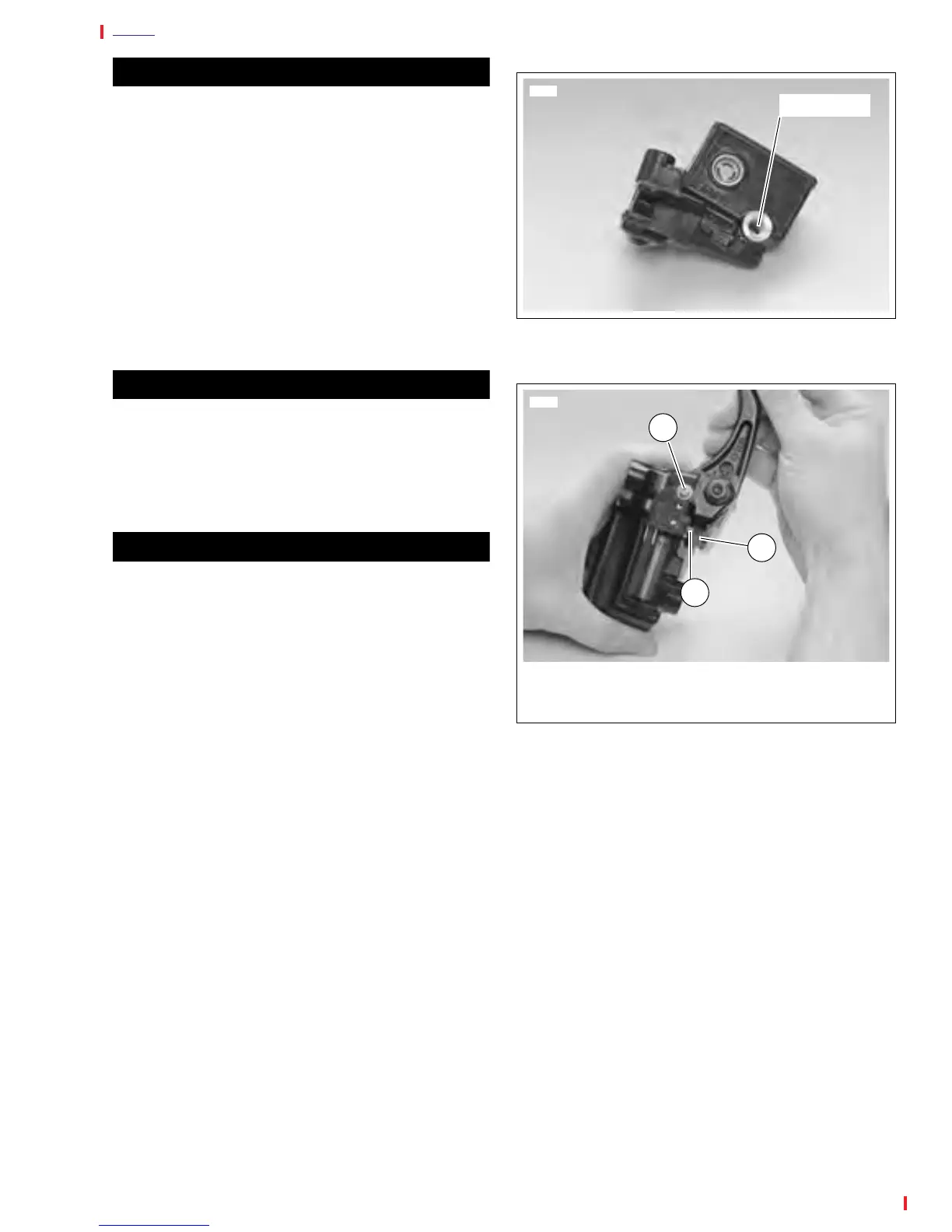

Figure 2-34. Master Cylinder Body
Figure 2-35. Testing Hand Lever
6492
Outlet Port
6493
1
3
2
1. Screw, Lockwasher and Washer
2. Hand Lever
3. Tang
