a. Position fork tubes so that top of each slider tube is
flush with the top surface of upper triple clamp. Be
sure that top surface of fork is not below top surface
of upper triple clamp.
b. Tighten upper triple clamp pinch screws (at sliders)
to 13-16 ft-lbs (18-22 Nm).
c. Tighten lower triple clamp pinch screws to 22-29 ft-
lbs (30-39 Nm).
d. See Figure 2-89. Tighten head lamp brackets flush
against bottom of top triple clamp.
4. Install front fender. See 2.23 FENDERS.
5. Install front wheel. See 2.5 FRONT WHEEL.
6. Install front brake caliper. See 2.11 FRONT BRAKE
CALIPER.
7. Align head lamp. See 7.17 HEADLAMP.

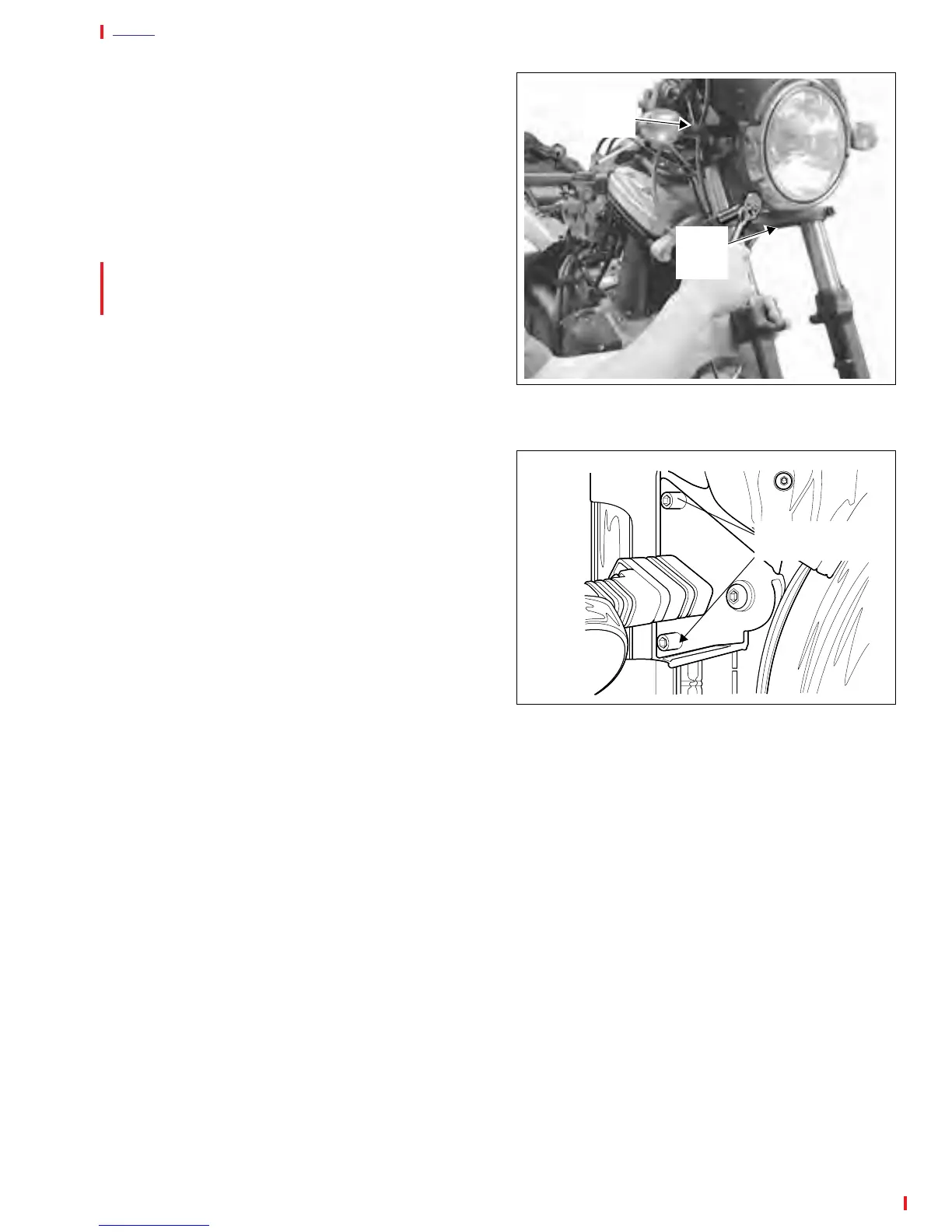

Figure 2-88. Pinch Screws
Figure 2-89. Tighten Head lamp Bracket
3765
Upper
Triple
Clamp
Lower
Triple
Clamp
a0065aSx
Headlamp Bracket
Screws
