3-42 2002 Buell P3: Engine
HOME
7. Lubricate cylinder wall, piston, pin and rod bushing with
engine oil.
8. See Figure 3-82. Compress the piston rings using PIS-
TON RING COMPRESSOR (Part No. HD-96333-51C).
9. Remove protective sleeves from cylinder studs. Install a
new cylinder base gasket. Make sure the piston does not
bump the studs or crankcase.
10. Install cylinder over piston.
11. Remove PISTON RING COMPRESSOR.
12. Assemble cylinder head. See 3.5 CYLINDER HEAD.
13. Install cylinder head. See 3.5 CYLINDER HEAD.
14. Install assembled engine. See 3.4 ENGINE INSTALLA-
TION.

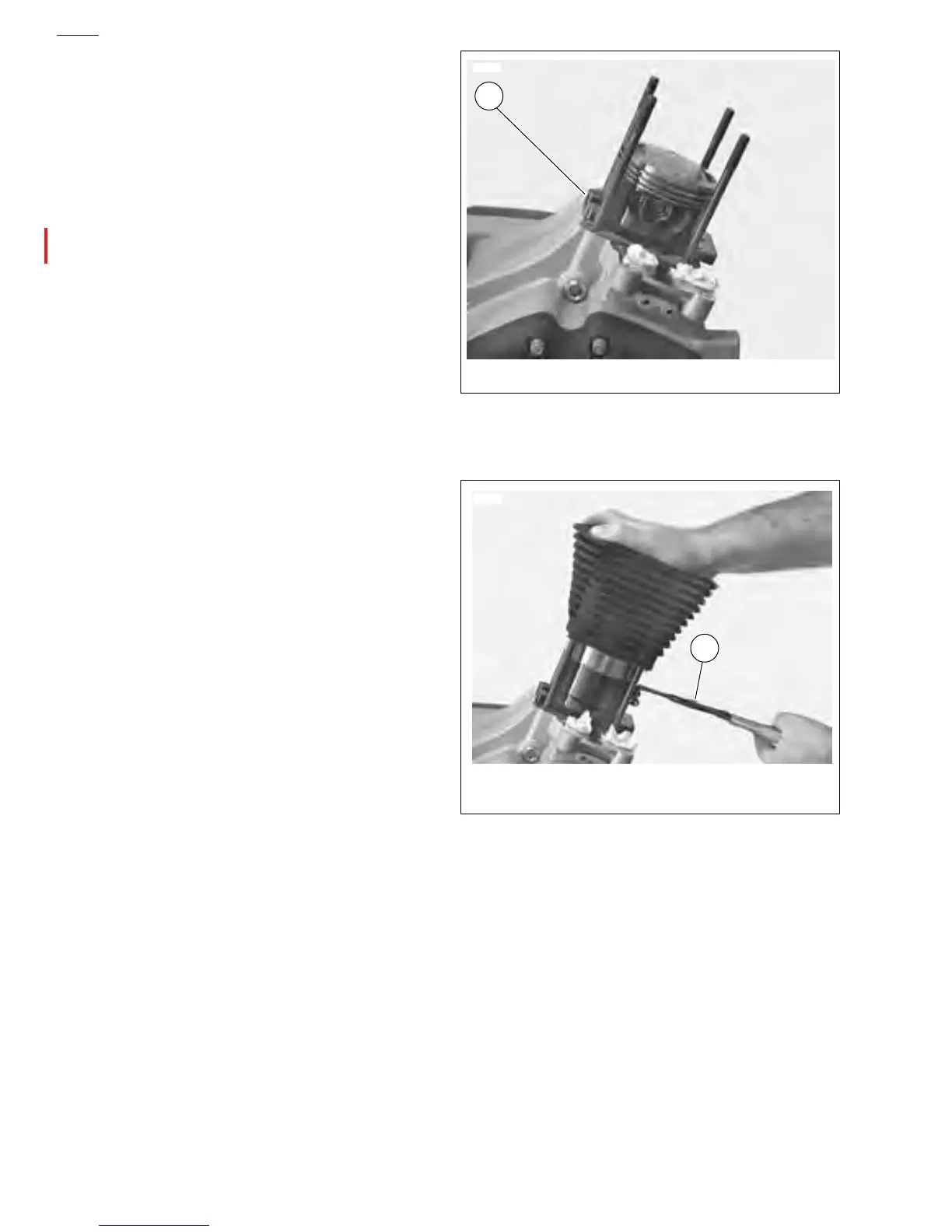

Figure 3-81. Piston Support Plate
Figure 3-82. Compressing Piston Rings
7658
1
1. Piston Support Plate (Part No. HD-42322)
7657
1
1. Piston Ring Compressor (Part No. HD-96333-
51C)
