5. See Figure 3-112. Install gearcase cover over all gears
and onto right crankcase half. Secure cover to crankcase
half with 7 socket head screws. Tighten screws evenly to
80-110 in-lbs (9-12 Nm). Use torque sequence as
shown in Figure 3-112.
6. See Figure 3-113. Check cam gear end play for each
cam gear as follows:
a. Turn engine over until lobe of cam gear being
checked is pointing toward its respective tappet
guide hole.
b. Gently pry the cam gear toward the gearcase cover
using a flat blade screwdriver.
c. Measure gap between bushing (in crankcase half)
and cam gear shaft thrust face (shoulder) using a
feeler gauge. This is cam gear end play.
d. Compare cam gear end play measurements with
the SERVICE WEAR LIMITS. Make repairs as
required if end play does not meet specifications.
7. See 3.15 HYDRAULIC LIFTERS. Install hydraulic lifters
and push rods.
8. Install cam position sensor and rotor in gearcase cover.
7.8 IGNITION MODULE/ CAM POSITION SENSOR.
9. Install any components removed to gain access to gear-
case (i.e. exhaust system components, air cleaner, etc.).

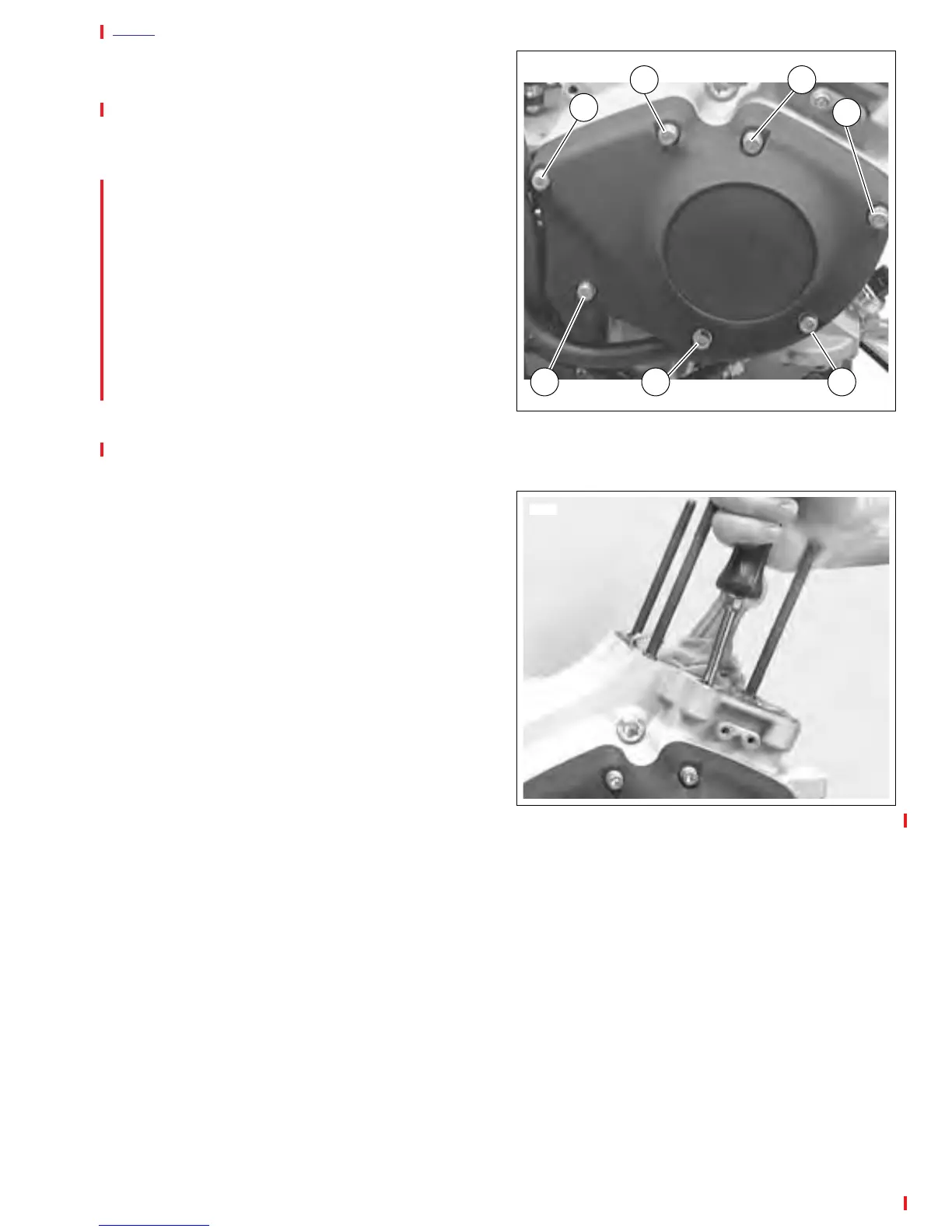

Figure 3-112. Gearcase Cover Mounting Screw
Torque Sequence
Figure 3-113. Checking Cam Gear End Play
7696
7
1
42
6 3
5
7683
