4-14 2002 Buell P3: Fuel System
HOME

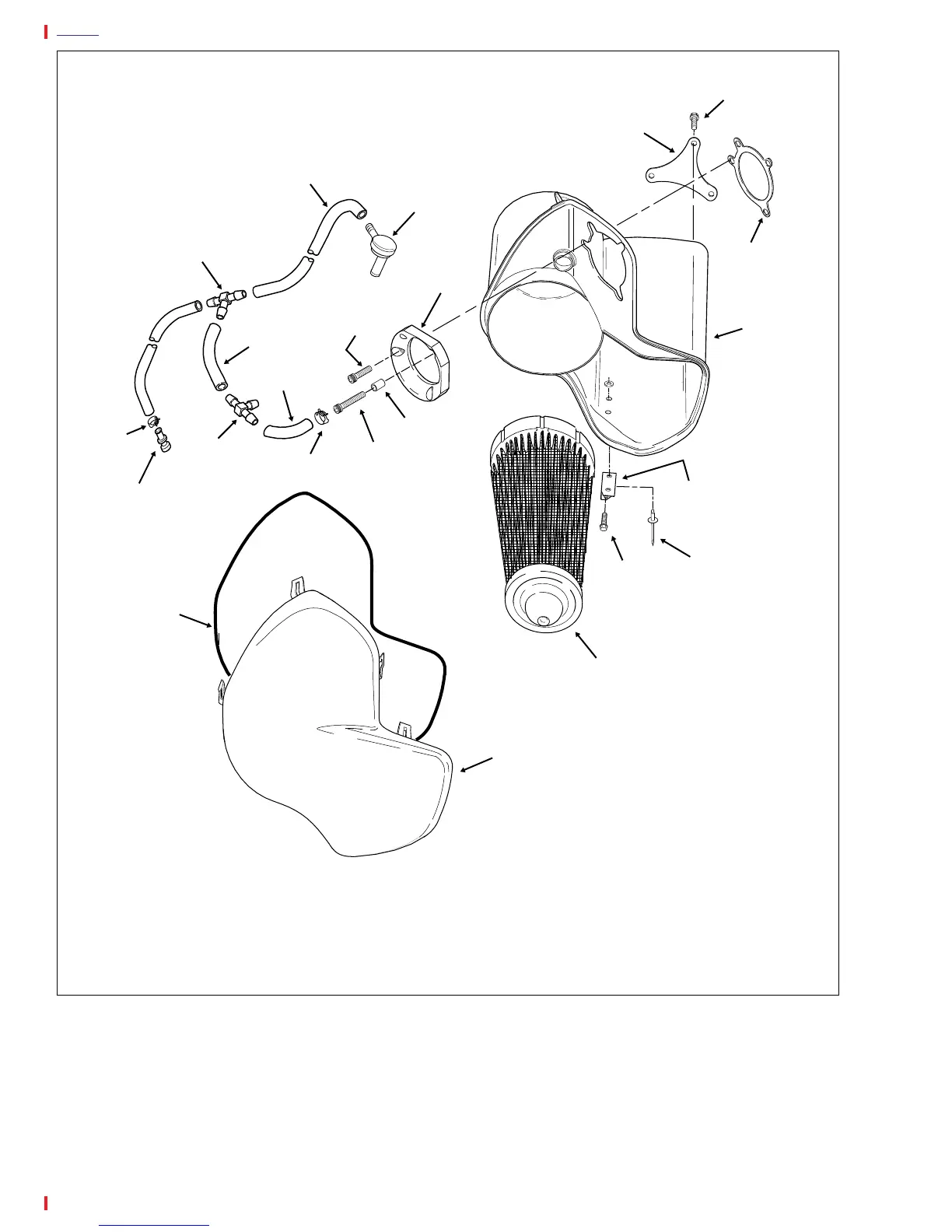

Figure 4-14. Air Cleaner Assembly (Non-California Models)
Cover
Seal
Air Box
Cover
Air
Filter
Rivet
Air Box
Carburetor
Gasket
Mounting
Bracket
Mounting
Bracket
Drain
Plug
Hose
Clamp
PCV
Valve
Venturi
Ring
(Left Side)
(Right Side)
Screw
Spring
Clamp
Screw
Screw
Screw
Spacer
Hose
Connector
3-Way
Hose
Connector
3-Way
Hose
90
o
Preformed
Hose
45
o
Preformed
a0181x4x
NOTE
Hose not identified as preformed is
sold in bulk length only. Cut to
required size.
Hose
3/8” I.D. x 5/8” O.D.
