6-8 2002 Buell P3: Drive/Transmission
HOME

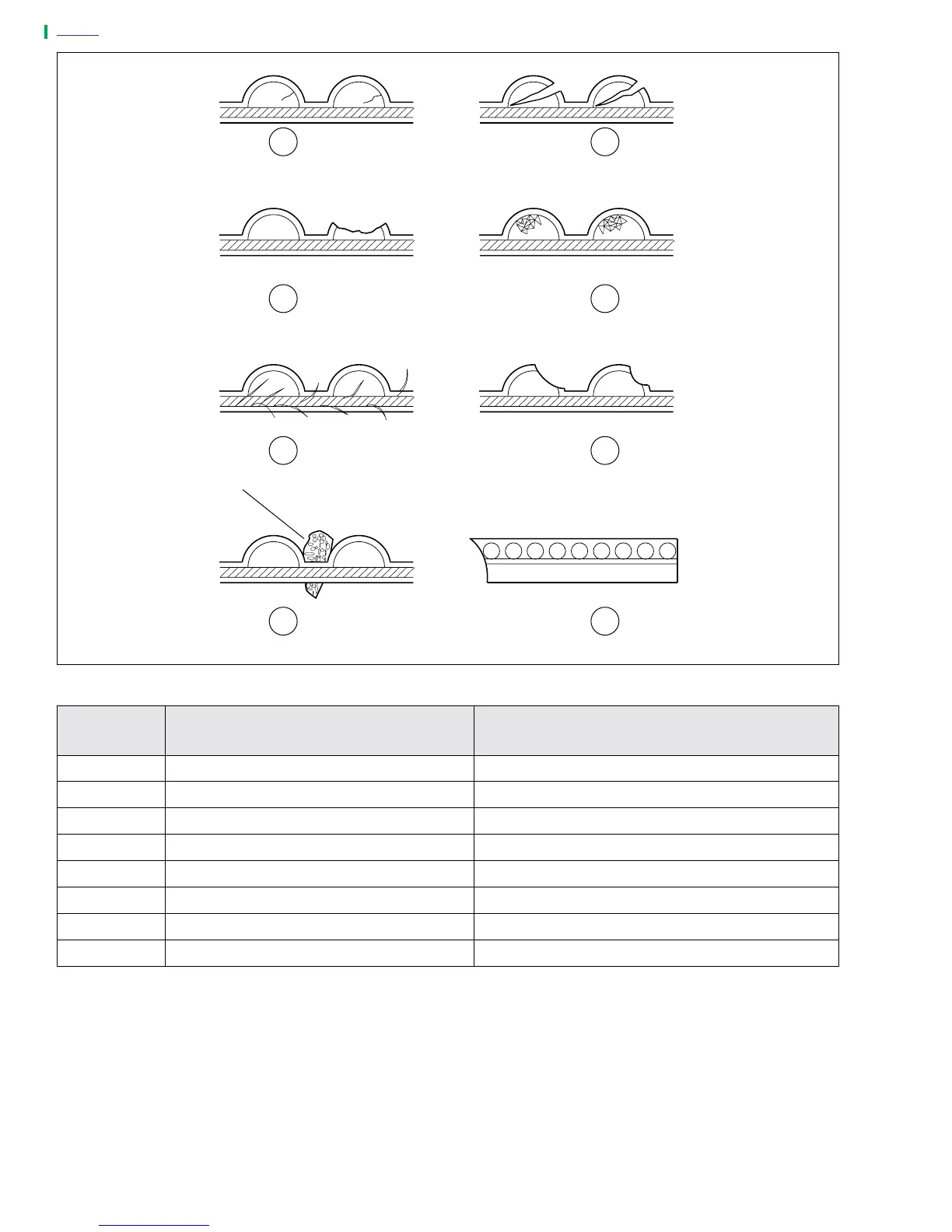

Figure 6-9. Drive Belt Wear Patterns
PATTERN IN
FIGURE 6-9.
CONDITION REQUIRED ACTION
1Internal tooth cracks (hairline) OK to run, but monitor condition
2External tooth cracks Replace belt
3Missing teeth Replace belt
4Chipping (not serious) OK to run, but monitor condition
5Fuzzy edge cord OK to run, but monitor condition
6Hook wear Replace belt
7Stone damage Replace belt if damage is on the edge
8Bevel wear (outboard edge only) OK to run, but monitor condition
1 2
3 4
5 6
7 8
Stone
Cross-section shown
a0147x6x
Sprocket
side of belt
