6-44 2002 Buell P3: Drive/Transmission
HOME
4. If you cannot align lockplate and sprocket screw holes,
nut may be additionally tightened until screw holes align.
5. See Figure 6-63. Install two socket head screws through
aligned holes of lockplate and into tapped holes of
sprocket. Tighten to 90-110 in-lbs (10-12 Nm).
NOTE
The original equipment socket head screws (5) have thread-
locking compound applied to them. Since this compound
remains effective for about three removal/installation cycles,
the original screws may be reused up to three times. After the
third removal/installation cycle, replace both screws with new
screws identical to the original.
6. Install the remaining removed components in the reverse
order of the removal procedures. See the procedures
listed in the respective component sections.
7. Fill transmission to proper level with fresh lubricant. See
6.4 CLUTCH.

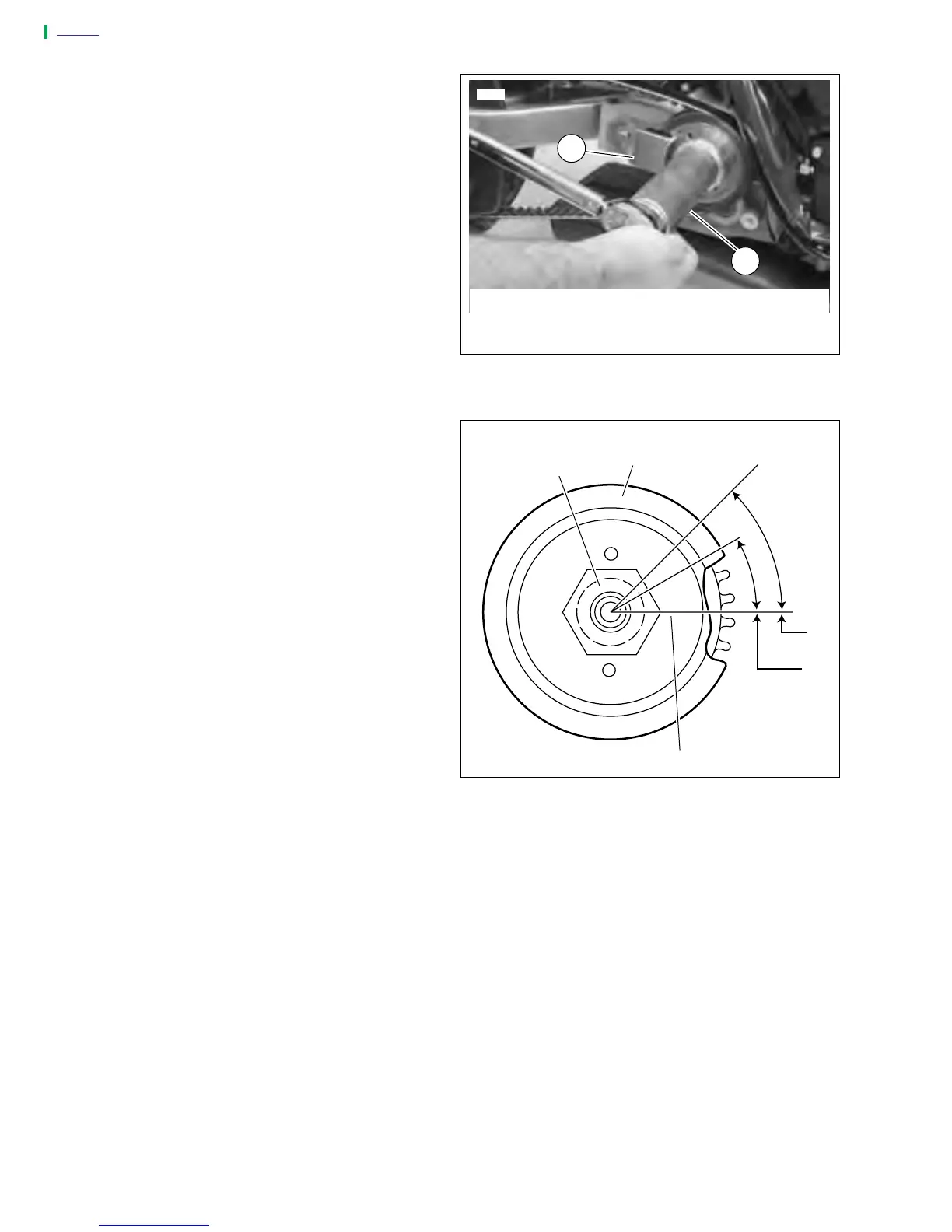

Figure 6-65. Transmission Sprocket Tightening
Figure 6-66. Aligning Transmission Sprocket
7399
2
1. Sprocket Holding Tool (Part No. B-43982)
2. Mainshaft Locknut Wrench
(Part No. HD-94660-37B)
1
45°
30°
Transmission
Sprocket
Transmission
Sprocket Nut
Line scribed on nut and sprocket
a0163x6x
