2002 Buell P3: Electrical 7-39
HOME
AC Output Check
1. See Figure 7-51.Test AC output.
a. Locate voltage regulator connector [46] behind left
footrest support. Disconnect from alternator stator
wiring.
b. Connect an AC voltmeter across both stator sock-
ets.
c. Run the engine at 2000 RPM. The AC output should
be 38-52 volts AC.
2. Compare test results to specifications.
a. If the output is below specifications, charging prob-
lem could be a faulty rotor or stator.
b. If output is good, charging problem might be faulty
regulator/rectifier. Replace as required.
3. Check the output again as described under CURRENT
AND VOLTAGE OUTPUT TEST.

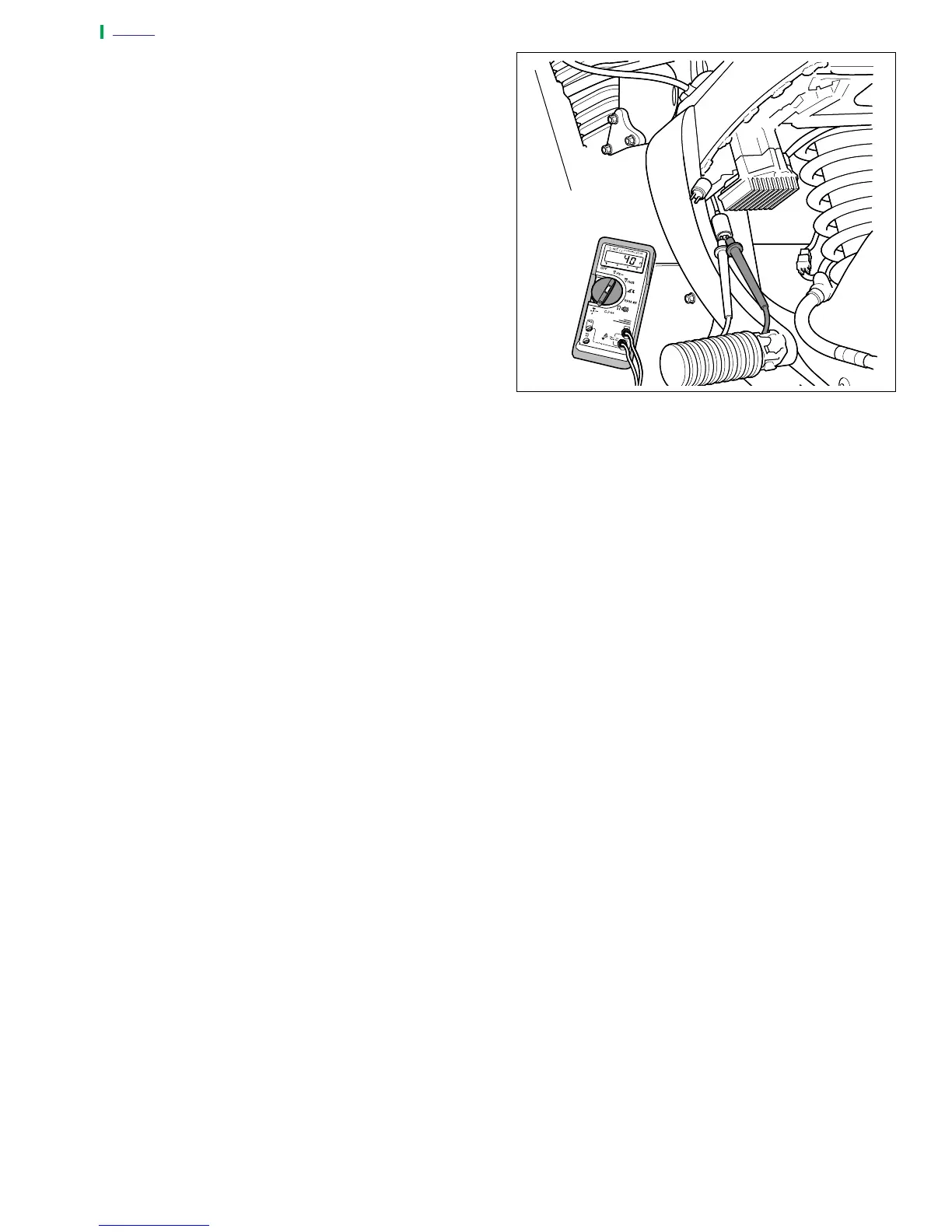

Figure 7-51. Check Stator AC Voltage Output
