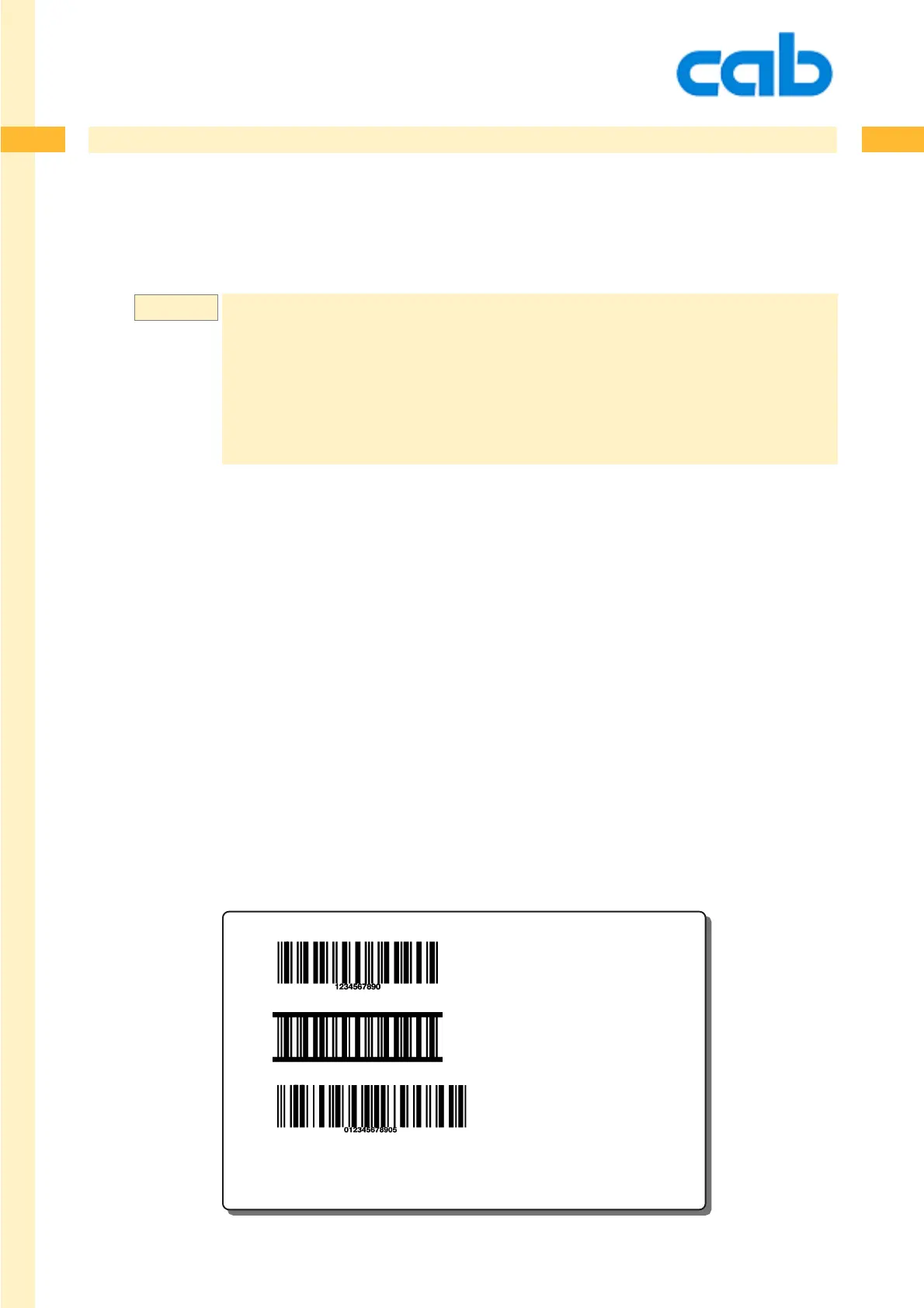

cab Produkttechnik GmbH & Co KG
B - Barcode
2 of 5 Interleaved
m m
J
S l1;0,0,68,71,100
B 5,5,0,
2 OF 5 INTERLEAVED
,10,0.3,3;1234567890
B 5,20,0,
2of5interleaved
+BARS,10,0.3,3;1234567890
B:Bar3;5,35,0,
2OF5 INTERLEAVED
+MOD10,10,0.3,3;1234567890
A 1
Print three barcodes with some modifications ( with an without human readable
characters, upper and lower bar and with a modulo 10 checksum.
Example:
106
108
