cab Produkttechnik GmbH & Co KG

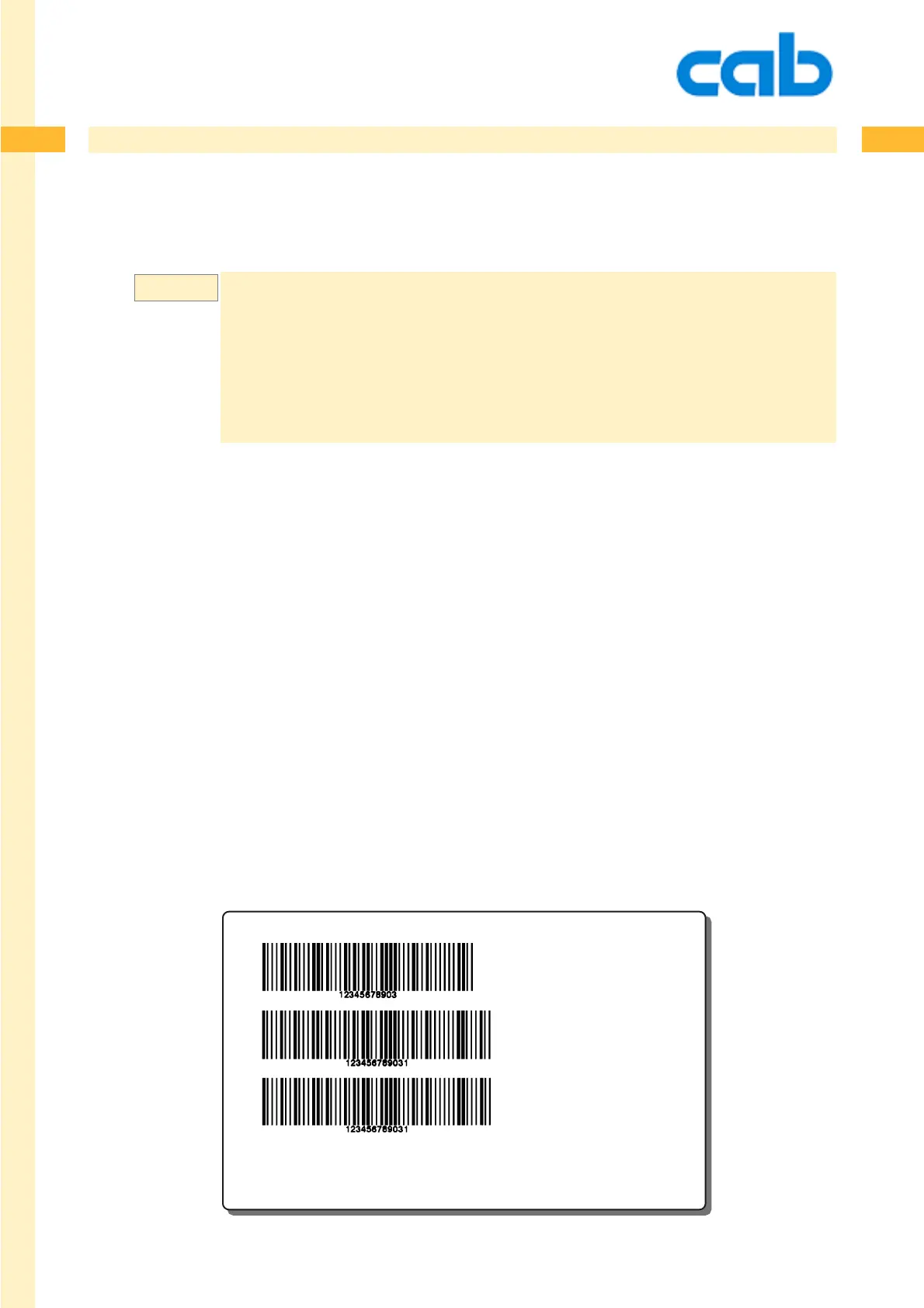

B - Barcode
MSI (MSI Plessey)
m m
J
S l1;0,0,68,71,100
B 5, 5,0,
MSI
,12,0.3,2;1234567890
B 5,20,0,
MSI+MOD10
,12,0.3,2;1234567890
B 5,35,0,
MSI+MOD11
,12,0.3,2;1234567890
A 1
Example:
152
154
