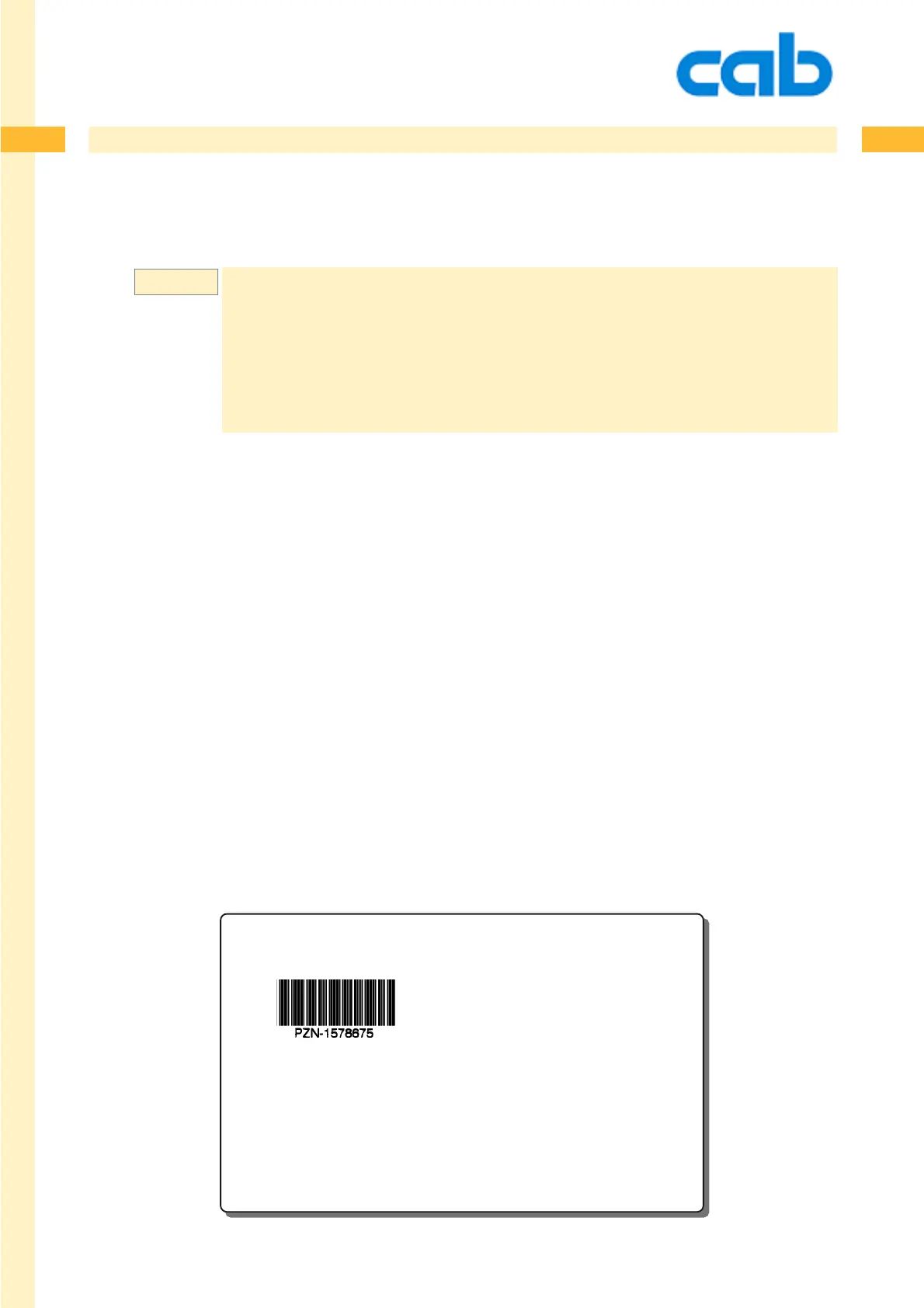

cab Produkttechnik GmbH & Co KG
B - Barcode
PZN-Barcode *
m m
J
H 100,8
S l1;0,0,68,71,100
B 5,17,0,
code39
,10,0.2,3;-1578675
T 9,30,0,3,3;PZN-1578675
A 1
This example was printed without human readable characters. The human readable
characters have been added in a separate text line to setup the text in a specific size.
Example:
160
162
