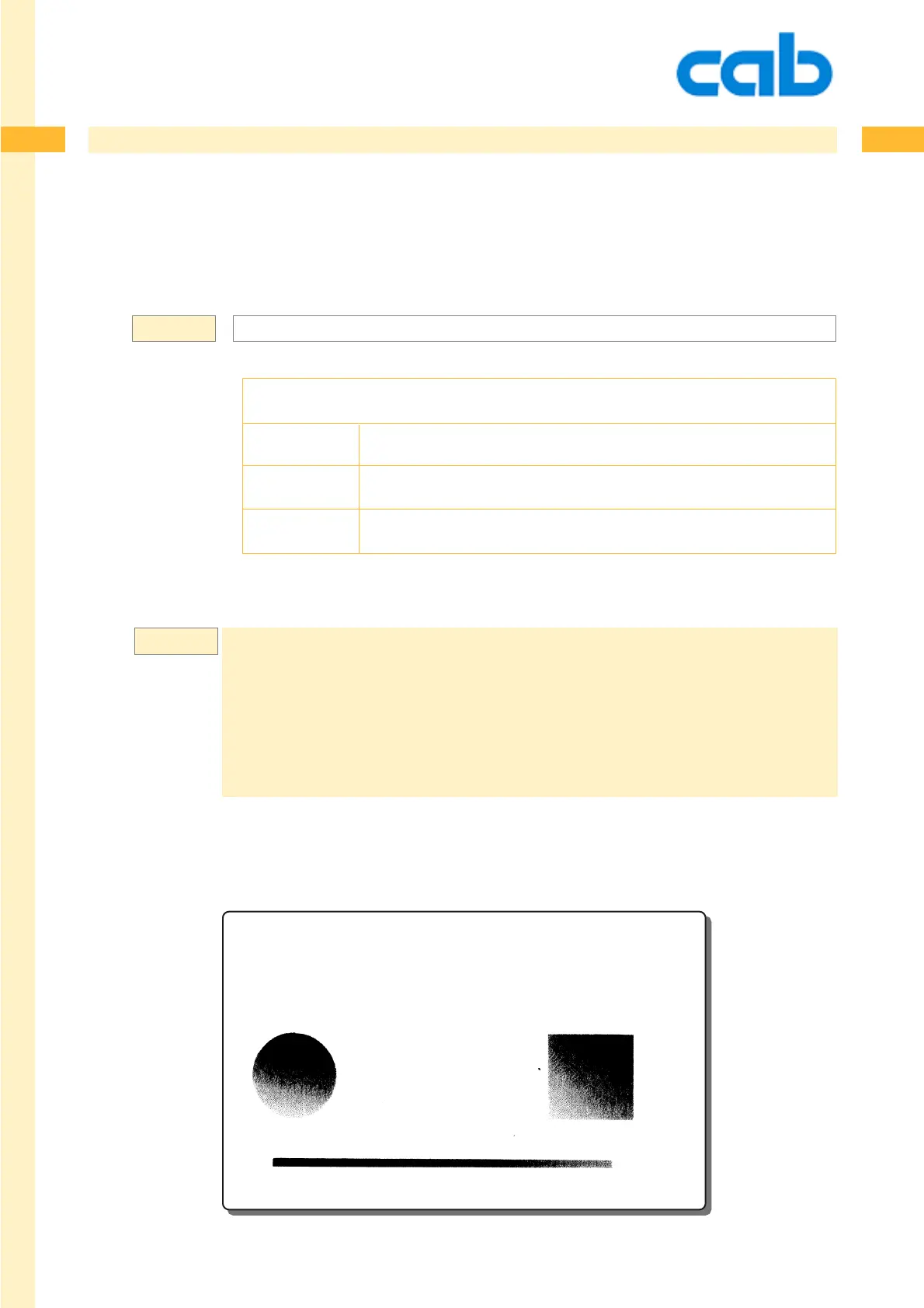

G - Graphic Definition - Option Shade
Graphic Option: Shade
Produces a shading effect (gradient filling) of a graphic object.
G[:name;]x,y,r;ge:settings[S:%1[,%2[,direction]] CR
S = Shade option
%1 = Darkness value at the beginning, as a percent of black.
%2 = Darkness value at the end, as a percent of black.
direction = Shading angle
m m
J
S l1;0,0,68,71,100
G 5,20,0;R:20,20, 1,20[S:60,10,45]
G 85,30,0;C:10,10,10,10[S:60,10,75]
G 10,10,0;L:80,2[S:30,90,0]
A 1
Syntax:
