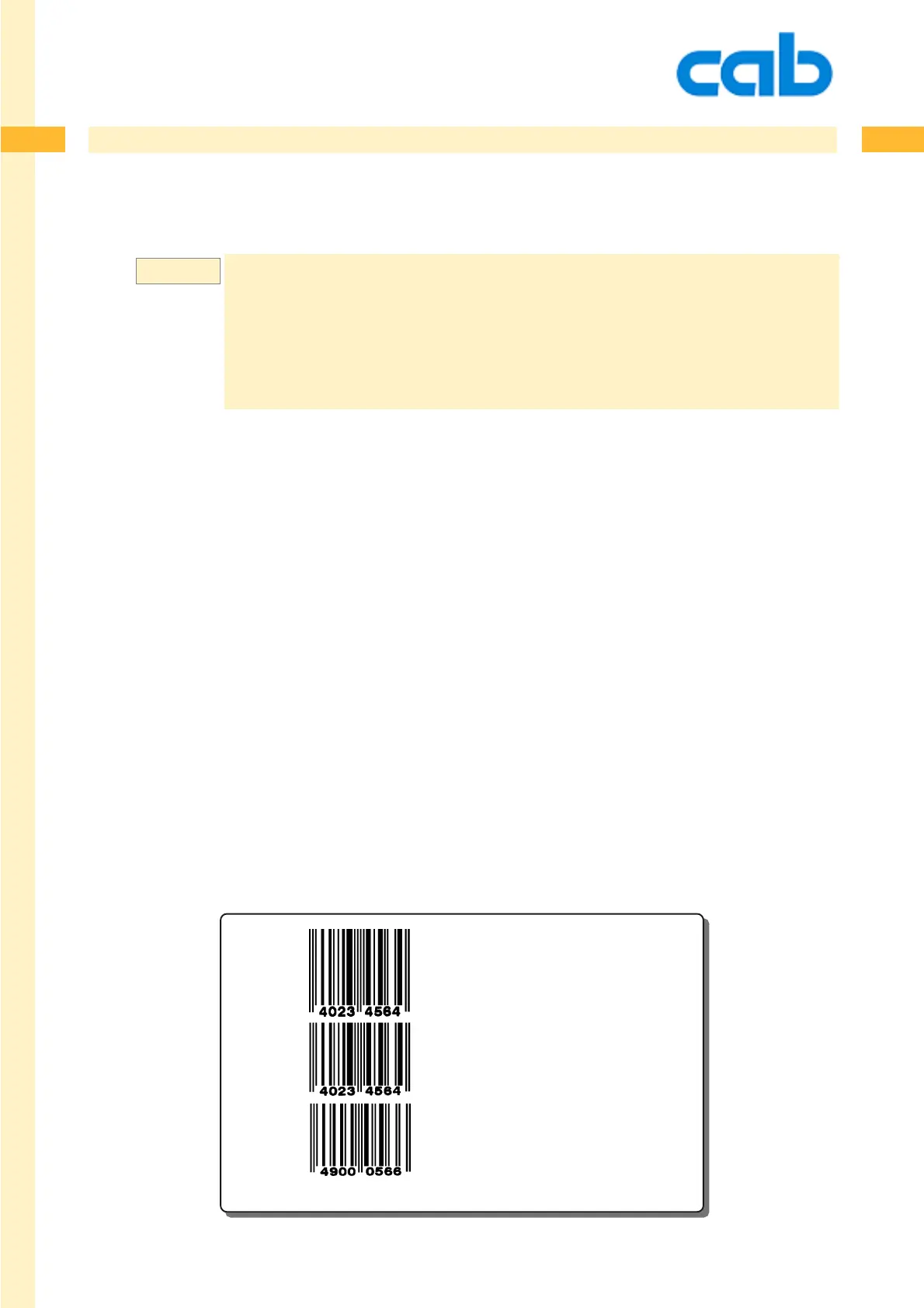

cab Produkttechnik GmbH & Co KG
B - Barcode
EAN-8 / JAN-8
m m
J
S l1;0,0,68,71,100
B 10, 5,0,
EAN8
,SC1;4023456
B 10,26,0,
EAN8
,16,0.35;4023456
B 10,44,0,
JAN8
,16,0.35;4900056
A 1
Example:
130
132
