B - Barcode Micro PDF 417
MicroPDF417 provides for three encoding modes: Text Byte and Numeric
compaction. Text is for general text Numeric for encoding data consisting only of
digits and Byte to allow for the first 127 ASCII characters but with a reduced level
of efficiency. Four symbol widths are permitted each specifying the number of data
columns (1 – 4). Within each symbol width a variable number of rows provide for a
maximum data capacity of:
Text compaction mode 0: 250 characters (2 data characters per codeword)
Byte compaction mode 1: 150 characters (1.2 data characters per codeword)
Numeric compaction mode 2: 366 characters (2.93 data characters per codeword)
The Level parameter for MicroPDF barcodes set the number of data columns
within the barcode which may be 1 – 4.m m
J
S 0,0,68,71,100
B 10,10,0,Micro+COLS2,3,0.5;cab Produkttechnik
A 1

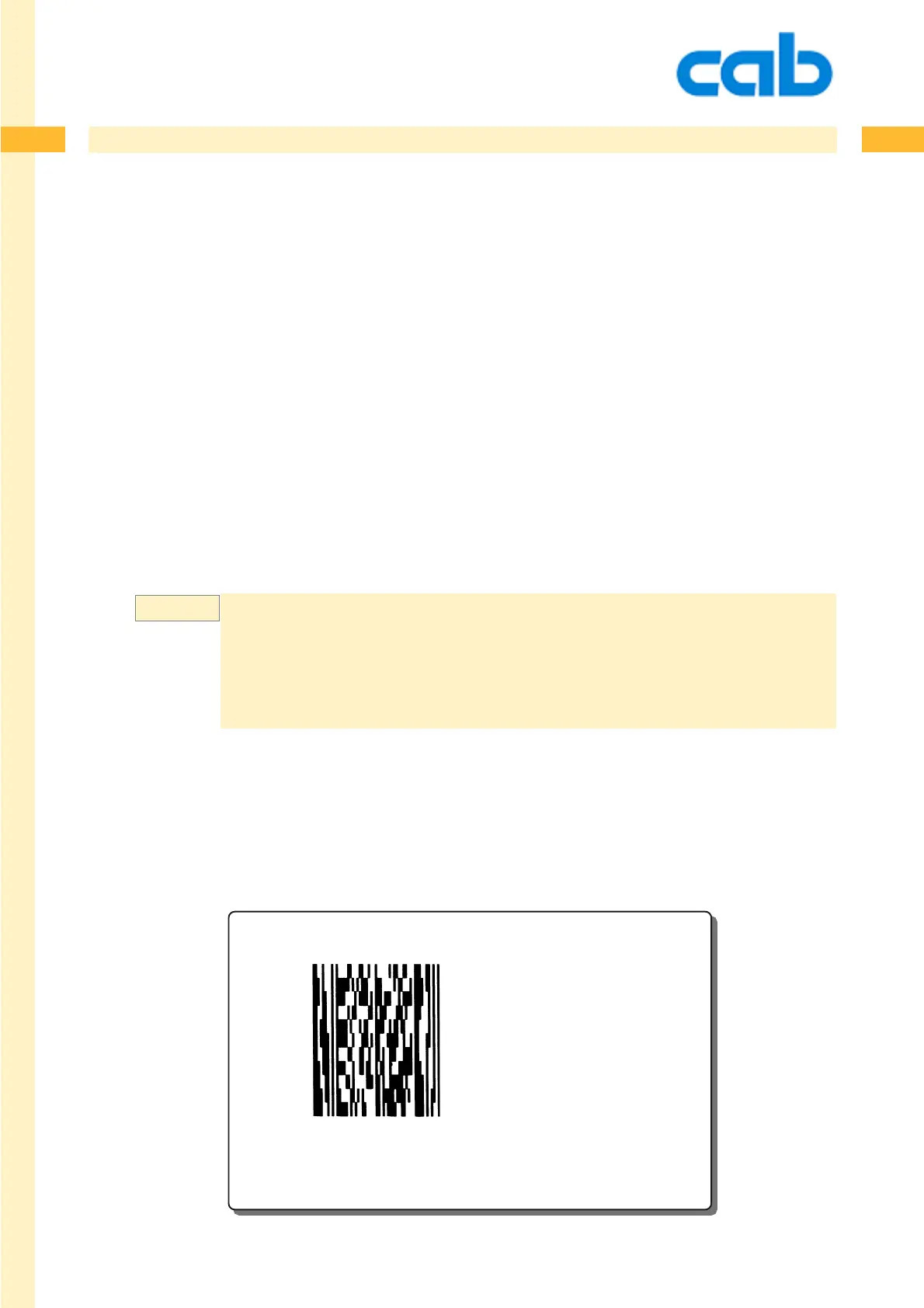

Example:
