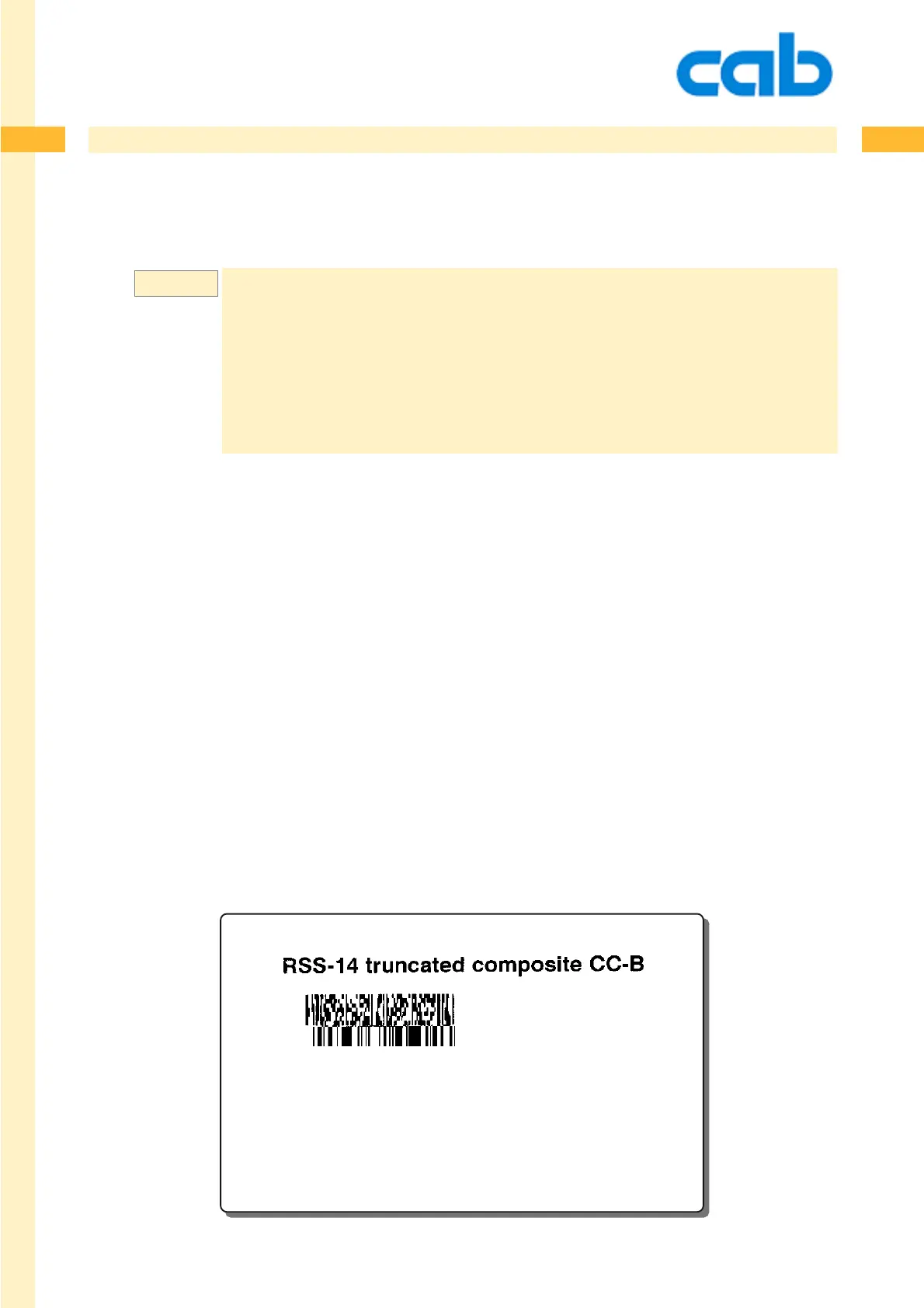

cab Produkttechnik GmbH & Co KG
B - Barcode
RSS-14 truncated composite (CC-B)
m m
J
S l1;0,0,68,71,104
T 5,10,0,5,5;RSS-14 truncated composite CC-B
B
10,15,0,
RSS14+TRUNCATED+CC3
,4,.3;0361234567890[U:2D](21)abcdefghijklmnopqrst
A 1
Example:
174
176
