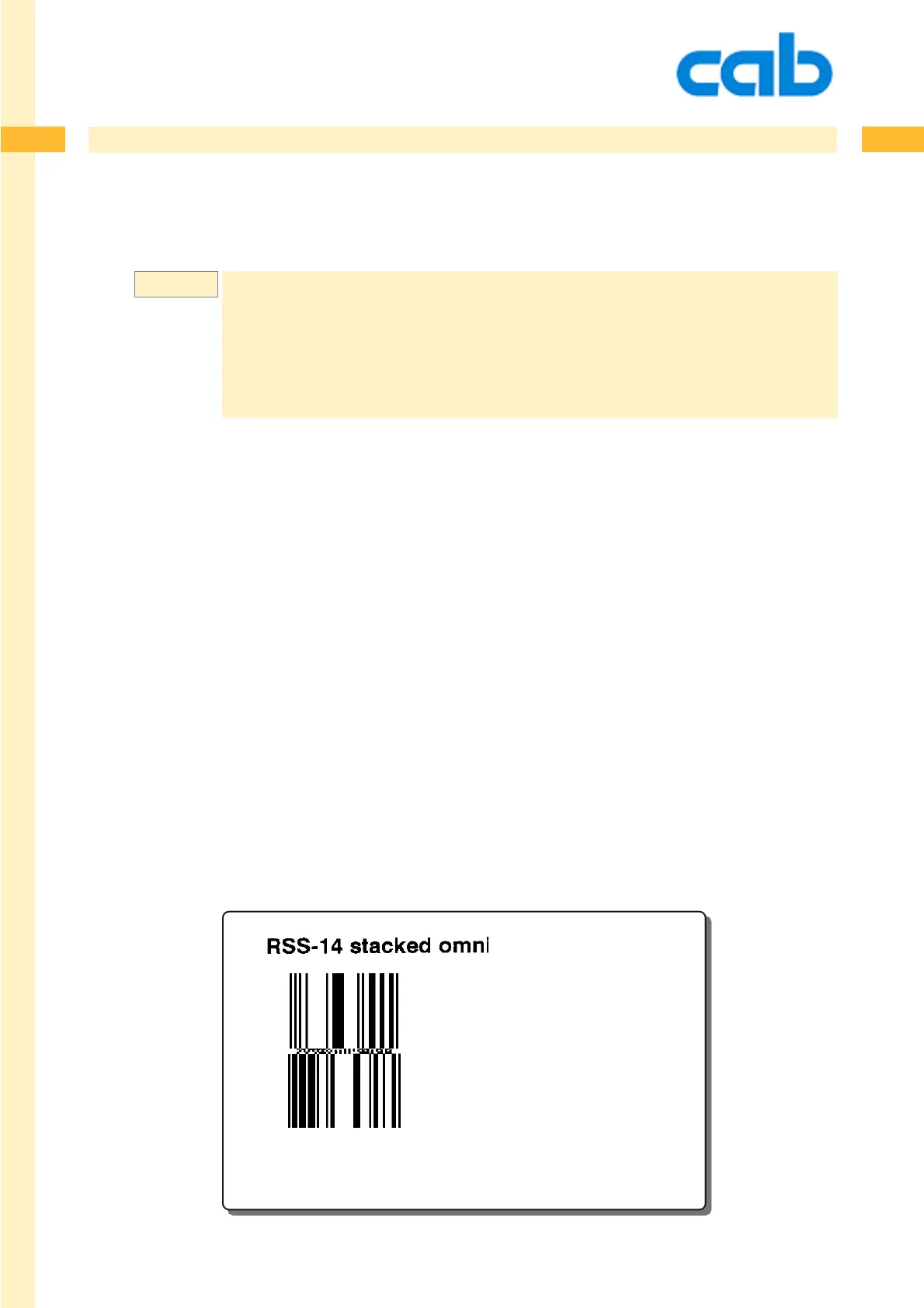

cab Produkttechnik GmbH & Co KG
B - Barcode
RSS-14 st
acked omnidirectional
m m
J
S l1;0,0,68,71,104
T 5,10,0,5,5;RSS-14 stacked omni
B 10,15,0,
RSS14+STACKEDOMNI
,16.5,.5;0003456789012
A 1
Example:
182
184
