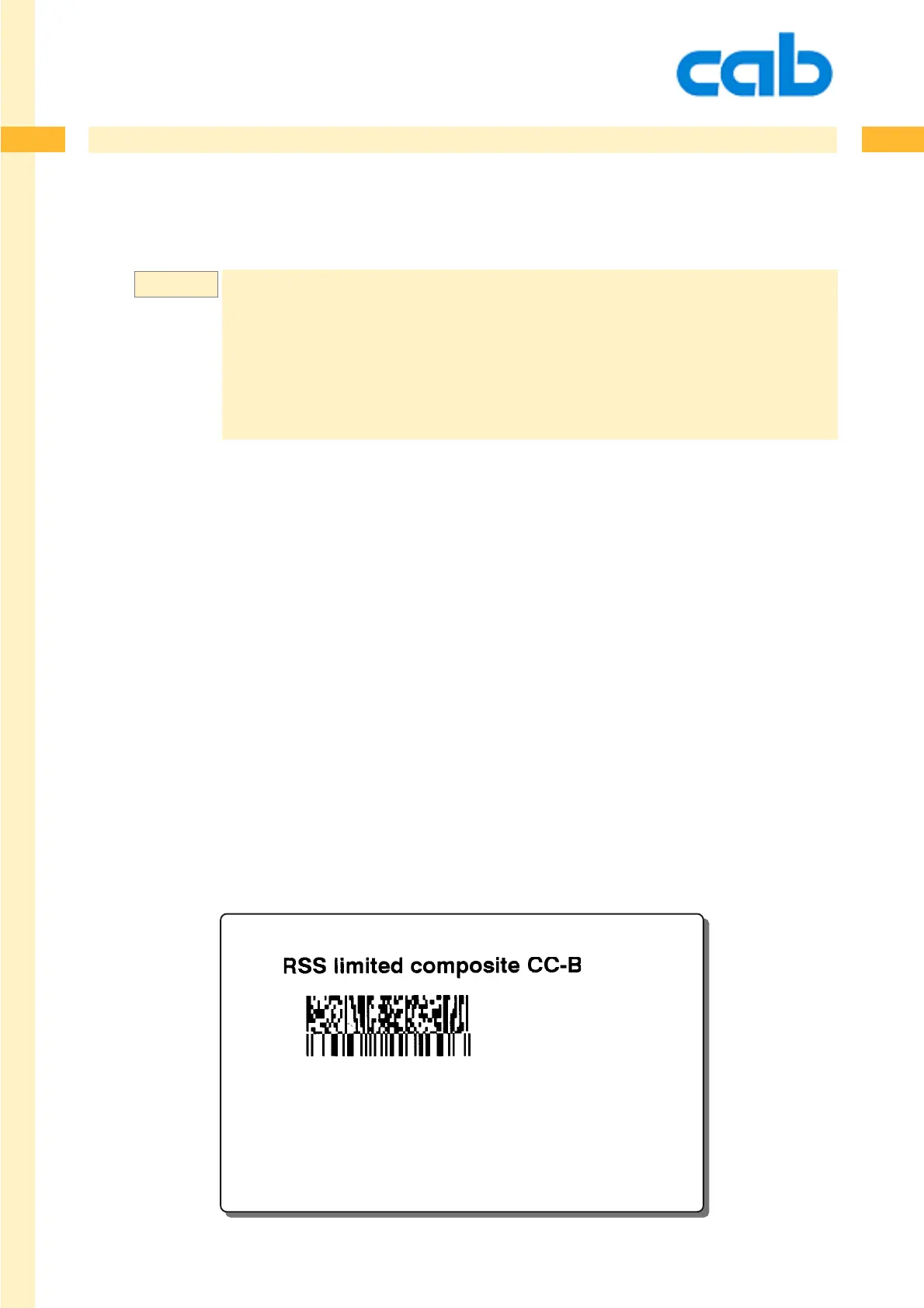

cab Produkttechnik GmbH & Co KG
Example:
B - Barcode
RSS limited composite (CC-B)
m m
J
S l1;0,0,68,71,104
T 5,10,0,5,5;RSS limited composite CC-B
B
10,15,0,
RSSLIMITED
,5,.5;0351234567890[U:2D](21)abcdefghijklmnopqrst
A 1
192
194
