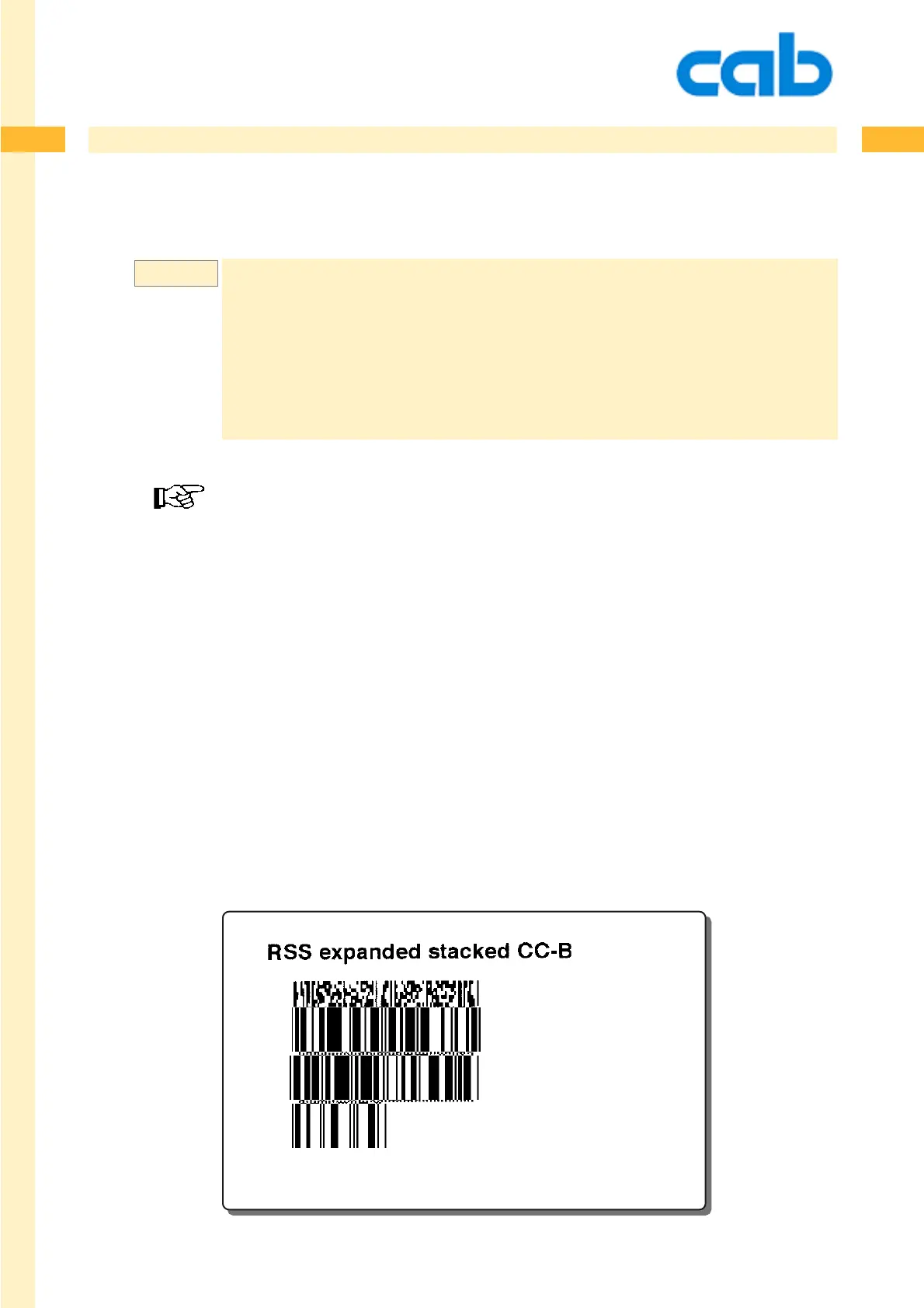

cab Produkttechnik GmbH & Co KG
B - Barcode
RSS exp
anded stacked composite (CC-B)
m m
J
S l1;0,0,68,71,104
T 5,10,0,5,5;RSS expanded stacked CC-B
B 10,15,0,
RSSEXPANDED+STACKED4
,10,.4;(01)00012345678905(10)
ABCDEF[U:2D](21)abcdefghijklmnopqrst
A 1
Please note: There is no carriage return in the barcode line.
The barcode data must be in one line.
Example:
206
208
