G - Graphic Definition - Circle
[,options] =
,fill = filling of the graphic object with a specified pattern
or with dot density. (see graphic option „fill“)
,shade = shading option (gradient filling - see graphic option „shade“)
,outline = outline option - prints an outline around the filled graphic object
with the thickness of 1 dot. (see graphic option „outline“)
m m
J
S l1;0,0,68,71,100
G 45,10,340;C:40,10,44[S:100,50,80]
G 40,35,0;C:30,30,2
G 40,35,0;C:10,10,1
G 60,35,0;C:10,10,1
G 40,40,0;C:4,4,4
G 60,40,0;C:4,4,4
A 1

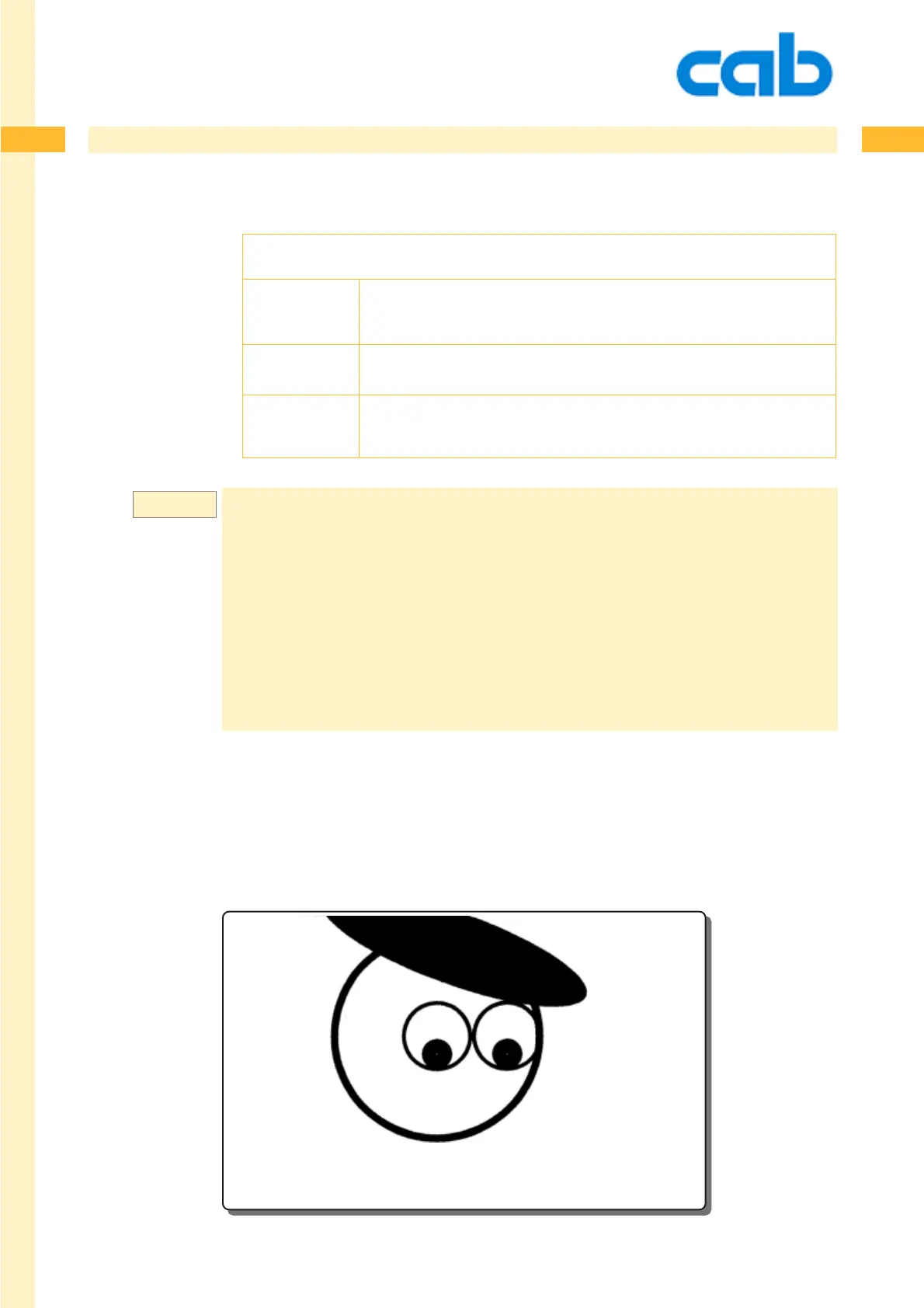

Example:
