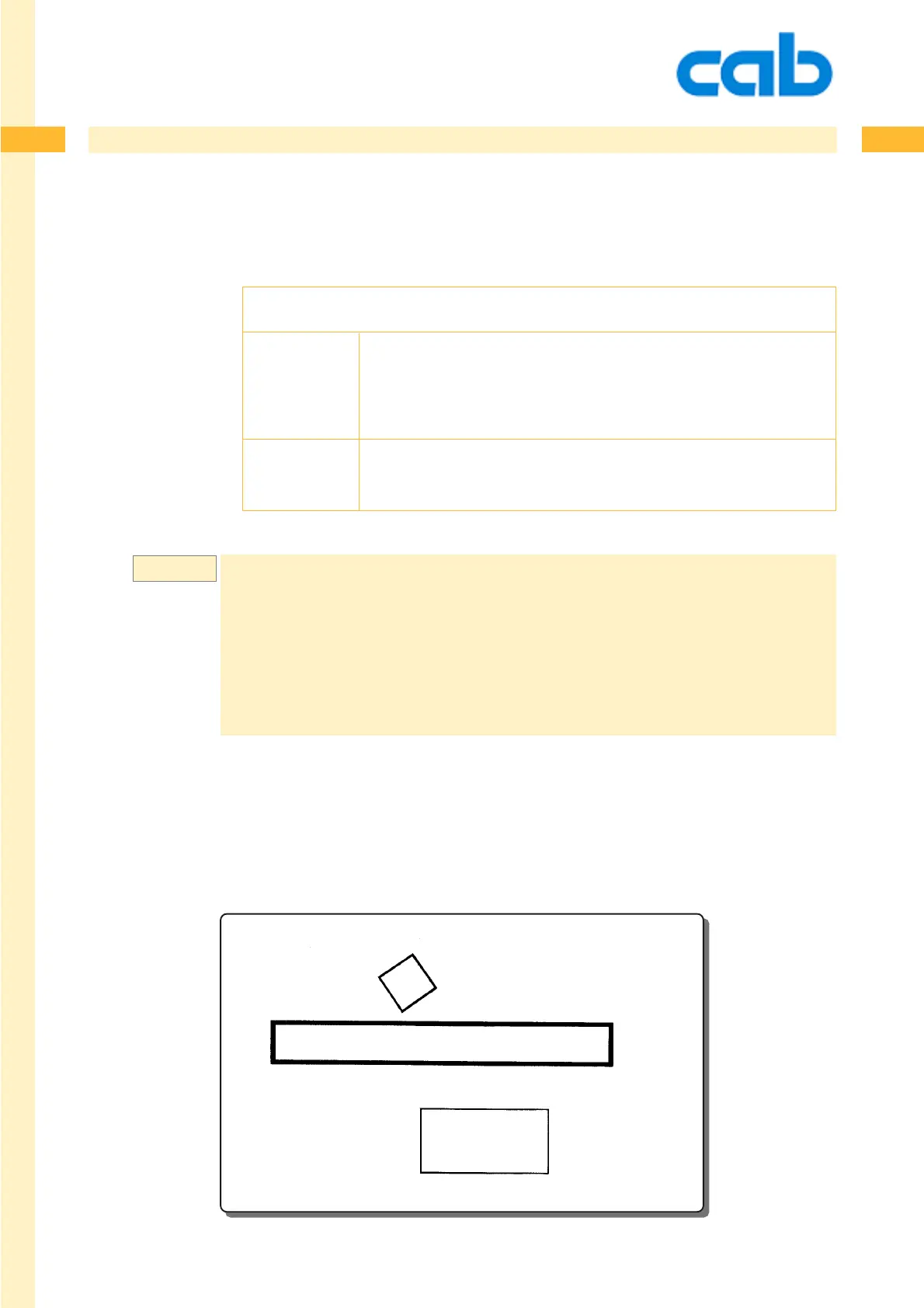

Example:
G - Graphic Definition - Rectangle
Graphic Type: R - Rectangle
[,options] =
,fill = filling of the graphic object with a specified pattern
or with dot density. (see graphic option „fill“)
,shade = shading option (gradient filling - see graphic option „shade“)
,outline = outline option - prints an outline around the filled graphic object
with the thickness of 1 dot. (see graphic option „outline“)
m m
J
S l1;0,0,68,71,100
G 35,45,0;R:30,15,.3,.3
G 0,25,0;R:80,10,1,1
G 25,15,35;R:10,10,.5,.5
A 1
