CAB A+ Series User Manual
4
of 1
of 1 rating
484 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
270
270
270
cab Produkttechnik GmbH & Co KG
T -
T
ext Field Definition
Internal Fonts

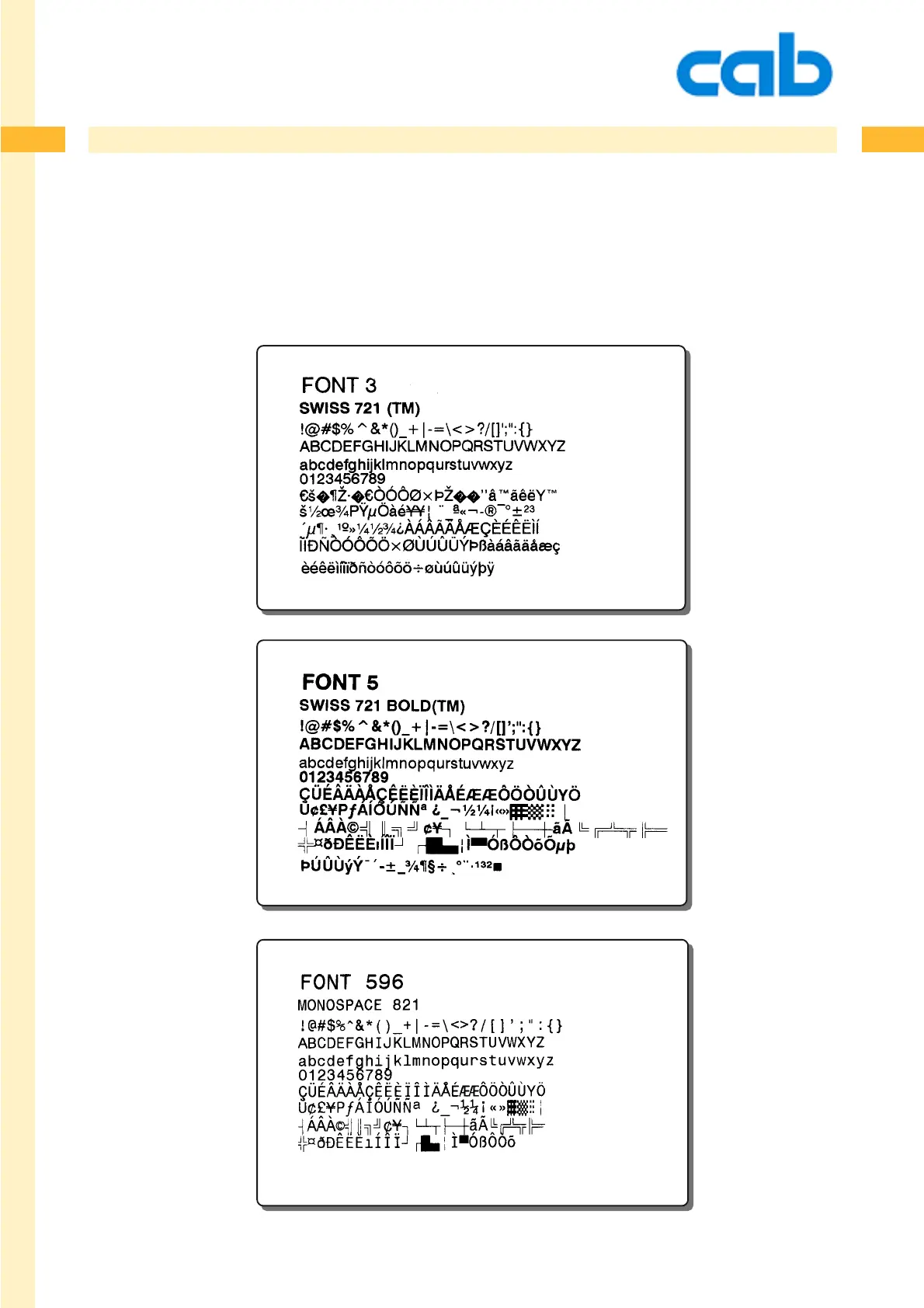

This examples show a printout of the scalable fonts of the cab printers. S
pecial characters can be
recalled using the [U:... option to recall and print Unicode characters.
Please see the [U:... option for more details.
269
271
Table of Contents
Default Chapter
3
Copyright © Cab Produkttechnik Gmbh & Co KG
3
Table of Contents
4
Chapter 1: Introduction
11
Introduction
11
Nomenclature, Syntax of the Commands
11
Usage of this Manual
12
Print Positions
13
Overview
14
ESC Instructions
14
Immediate Commands
14
Label Format Commands
15
Special Content Fields
15
Simple Programming Lesson
16
Create Your First Label
16
Explanation of this Example
16
Chapter 2: Command Overview
18
Command Overview
18
ESC Commands
19
Immediate Commands
20
Label Format Commands
22
Label Format Commands
23
Special Content Fields
24
Time Functions
24
Date Functions
24
Date Functions (Continued)
25
Jalali Date Functions ( Arab Date )
26
Suriyakati Date Functions ( Official Date in Thailand )
26
Mathematical Functions
27
Field Calculations and Comparisons
27
Special Functions (Miscellaneous)
28
RFID Functions
29
Database Connector Commands
30
Chapter 3: ESC Commands
33
ESCESC Replaces ESC in Binary Data
34
ESC!ESC! Hard Reset
35
ESC* Activate All RS-485 Printers
36
ESC. Start and Stop Value for Binary Data
37
ESC: Start Description of Binary Data
38
ESC< Back Feed of the Material Behind the Photocell
39
ESC? Request for Free Memory
40
Esca Abc-Status
41
Escc - Cancel Printjob
42
Escend-Of-Data End Description of Binary Data
43
Escf Formfeed
44
Escg Print Start Command
45
Esci Send Value from the INF-Memory
46
Escj Request for the Latest Printed Job
47
ESCI Request of Synchronisation Info
48
Escp0 End Printer´s Pause Mode
49
Escp1 Set Printer into Pause Mode
50
Escs Printer Status Query
51
Esct Total Cancel
54
Escz Extended Status Request
55
CHAPTER 3 - Immediate Commands
56
Immediate Commands
56
ABC> - Start of the Abc Basic Compiler
57
ABC> - End of the Abc Basic Compiler
58
Encrypted Label
59
ENCRYPTED JOB> - Start of an ENCRYPTED Job
60
ENCRYPTED JOB> - End of an ENCRYPTED Job
61
Comment Line
62
A - ASCII Dump Mode
63
C - Direct Cut
65
E - Erase Data
72
F - Formfeed
73
J - Job-ID
74
L - Change Language ( Country )
75
M - Set Measuring Unit
77
P - Pause Printer
79
Q - Query Printer
80
R - Reset to Default Values
82
S - Set Date/Time
83
T - Run Printer Self-Test
84
Firmware Version
89
Synchronous Peripheral Signal Settings
90
Z - Print Slashed / Unslashed Zero
91
CHAPTER 4 - Label Format Commands
92
A - Amount of Labels
93
B - Barcode Definition
95
Barcode Overview List
102
Available Check Digits
104
Startpositions of Barcodes
105
Barcodes - Printing Direction
105
B - Barcode 2 of 5 Interleaved
106
B - Barcode 2 of 5 Interleaved
107
B - Barcode Add-On2
108
B - Barcode Add-On5
110
B - Barcode Aztec - Code
112
B - Barcode Codabar
115
B - Barcode Codablock F
117
B - Barcode Code 39
118
B - Barcode Code 39 FULL ASCII
120
B - Barcode Code 93
124
B - Barcode Code 128
124
B - Barcode Data Matrix
126
B - Barcode DBP - German Post Identcode
128
Jan-8
130
Jan-13
132
Ean 128 / Ucc 128 / Gs1-128
134
Nve / Sscc-18
136
B - Barcode FIM
141
B - Barcode HIBC (Health Industry Barcode)
142
B - Barcode ITF-14 * / SCC-14
145
B - Barcode Maxicode
146
B - Barcode Micro PDF 417
150
B - Barcode MSI (MSI Plessey)
152
Msi (Msi Plessey)
153
Pdf 417
154
B - Barcode Plessey
157
B - Barcode Postnet
158
B - Barcode PZN-Barcode
161
B - Barcode QR-Code
162
B - Barcode RSS-14
164
B - Barcode RSS-14 Composite (CC-A)
166
B - Barcode RSS-14 Composite (CC-B)
168
B - Barcode RSS-14 Truncated
170
B - Barcode RSS-14 Truncated Composite (CC-A)
172
B - Barcode RSS-14 Truncated Composite (CC-B)
174
B - Barcode RSS-14 Stacked
176
B - Barcode RSS-14 Stacked Composite (CC-A)
178
B - Barcode RSS-14 Stacked Composite (CC-B)
180
B - Barcode RSS-14 Stacked Omnidirectional
182
B - Barcode RSS-14 Stacked Omnidirectional Composite (CC-A)
184
B - Barcode RSS-14 Stacked Omnidirectional Composite (CC-B)
186
B - Barcode RSS Limited
188
B - Barcode RSS Limited Composite (CC-A)
190
B - Barcode RSS Limited Composite (CC-B)
192
B - Barcode RSS Expanded
194
B - Barcode RSS Expanded Composite (CC-A)
196
B - Barcode RSS Expanded Composite CC-B
198
B - Barcode RSS Expanded Stacked
200
B - Barcode RSS Expanded Stacked Half Line
202
B - Barcode RSS Expanded Stacked Composite (CC-A)
204
B - Barcode RSS Expanded Stacked Composite (CC-B)
206
B - Barcode UPC-A
209
B - Barcode UPC-E
211
B - Barcode UPC-E0
212
C - Cutter Parameters
214
D - Global Object Offset
218
E Dbf
219
E Log
220
E SQL - Define Files ( Extension SQL)
222
E RFID - Define Files (Extension RFID)
223
F - Font Number
224
F - Font Number
225
G - Graphic Field Definition
226
G - Graphic Definition - Circle
228
G - Graphic Definition - Line
230
G - Graphic Definition - Line
231
G - Graphic Definition - Rectangle
232
G - Graphic Definition - Option: Fill
234
G - Graphic Definition - Option Shade
235
G - Graphic Definition - Option: Outline
236
H - Heat, Speed, Method of Printing, Ribbon
238
I - Image Field Definition
239
J - Job Start
242
M - Memory Card Access
243
Memory Card Access with FTP Connection
245
M - Memory Card Access - Load File from Card
250
O - Set Print Options
255
O - Set Print Options
256
P - Set Peel-Off Mode
258
R - Replace Field Contents
259
S - Set Label Size
260
T - Text Field Definition
264
Synchronous Peripheral Signal Settings
274
Chapter 5: Special Content Fields
275
Time Functions
277
[H12
277
[H24
278
[H012
279
[H024
280
[Isotime
281
Prints the Time in ISO Standard Format
281
ISOTIME...] Prints the Time in ISO Standard Format
281
[MIN] Print Minutes (00-59)
282
[Sec
283
Time
284
Print Actual TIME
284
TIME ...] Print Actual TIME
284
[XM
285
Am/Pm Indicator
285
XM...] Am/Pm Indicator
285
Date Functions
286
Date
287
Print Actual DATE
287
DATE... ] Print Actual DATE
287
Day
289
Print Numeric DAY of the Month (1-31)
289
DAY... ] Print Numeric DAY of the Month (1-31)
289
[Day02
290
[Isodate
292
[Isoordinal
293
[Wday
294
Print Numeric Weekday(0-6)
294
WDAY... ] Print Numeric Weekday(0-6)
294
[Wday
295
[Wday2
296
[Wday3
297
[Isowday
298
Print Date Following the ISO Specs
298
ISOWDAY: ...] Print Date Following the ISO Specs
298
Week
299
Print Numeric WEEK (1-53)
299
[Week02
300
[Oweek
301
Print WEEK with Offset(1-53)
301
OWEEK... ] Print WEEK with Offset(1-53)
301
[Mon
302
Print 3-Character Month Name
302
Mon... ] Print 3-Character Month Name
302
Print Complete Month Name
303
Month
304
Print 2-Digit MONTH (1-12)
304
MONTH... ] Print 2-Digit MONTH (1-12)
304
Month
305
MONTH02... ] Print 02-Digit MONTH (01-12)
305
[Yy
307
[Yyyy
308
Jalali Date Functions
309
Suriyakati Date
309
[Jyear
310
[Jday
311
[Jday02
312
[Jmonth
313
[Jmonth02
314
[Jdofy
315
[Jmonth
316
Print Complete Jalali Month Name
316
Jmonth... ] Print Complete Jalali Month Name
316
[Jwday
317
Print Jalali-Week-DAY
317
[Syear
318
Mathematical Functions
319
[+:Op1,Op2
320
[-:Op1,Op2
321
[*:Op1,Op2
322
[/ :Op1,Op2] Division
323
[%: Op1,Op2] Modulo
325
[|:Op1,Op2] Logical or
326
[|:Op1,Op2] Logical or
327
[&:Op1,Op2] Logical and
328
[<: Op1,Op2] Comparision < Less than
329
[=: Op1,Op2] Comparision = Equal
330
[==: Text1,Text2] String Comparision == Equal
331
[>: Op1,Op2] Comparision > Greater than
332
[Mod10:X] Calculate the Modulo 10 Check Digit
333
[Mod36:X] Calculate the Modulo 36 Check Digit
334
[Mod43:X] Calculates the Modulo 43 Check Digit
335
Print Result in Price Format
336
[R:X] Rounding Method
337
Special Functions
338
LCD Prompt
339
[Abc:X] Insert ABC Value
344
[Bin:X{,Y
345
[Bin16B:X{,Y
346
[Bin16L:X{,Y
347
[Bin32B:X{,Y
348
[Bin32L:X{,Y
349
[Bitfield
350
C: ... ] Leading Zero Replacement
351
Set Number of Digits
353
[Dbf
354
Database File Access
354
DBF:... ] Database File Access
354
[Hex:X
355
I: ...] Invisible Fields
356
[JOBID] Print JOB ID
358
Justification
359
[Len:X] Text Length Detection
361
Lower
362
Converts to Lower Case Characters
362
[Ltrim
363
Trim Data Left
363
LTRIM:... ] Trim Data Left
363
[Name] Access a Field with a Name
364
[Name,M{,N}] Insert Substring
365
[Rtmp
366
Read Value from Serial (TMP) File
366
[Rtrim
367
Trim Data Right
367
Ruser
368
Read Value from (User) Memory
368
Script Style for Numeric Values
369
[Ser
370
[Sql:XX ] SQL Database Access
375
[Sqllog
376
[Trim
377
Trim Data
377
TRIM:... ] Trim Data
377
[U:X] Insert Unicode Characters
378
[Upper
380
[WINF] Mark a Line for Writing into the Info Buffer
381
[WLOG] Write LOG File
382
[WTMP] Write Value to Serial (TMP) File
383
Wuser
384
Write Value to USER Memory
384
RFID Functions
385
[Ltag
386
Lock RFID TAG Area
386
LTAG ... ] Lock RFID TAG Area
386
[Rtag
387
Read RFID TAG
387
RTAG ... ] Read RFID TAG
387
[Rtagbin
388
Read RFID TAG Binary
388
RTAGBIN ... ] Read RFID TAG Binary
388
[TAGID] Read TAG ID
389
[Wtag
390
Write RFID TAG
390
Chapter 6: Cab Database Connector
391
How It Works
392
Supported Databases
392
Cab Database Connector and Sqlclient
392
Installation
393
Chapter 7: Abc - A-Series Basic Compiler
398
Abc - A-Series Basic Compiler
398
Requirements
398
Restrictions
398
Import Differences to Yabasic PC Versions
399
Temporary Restrictions/Known Bugs
399
Window-Handling
399
New Functions Compared to Yabasic
400
Restrictions Compared to Yabasic
400
Abc - PEEK Variables
401
Abc - POKE Variables
404
Abc - Streams
406
Abc - Modes
407
Notes
408
Communication with Web Browsers
408
Html
408
ASCII Table
422
Appendix A
423
Code 39 Pattern Chart
423
Code 39 Full ASCII Chart
424
Tips and Tricks
425
Appendix B:tips and Tricks
425
Variable Day Offset
426
Hexadecimal Counter (Base 16, 0-F)
427
Invisible Field - Depending on Condition
428
Memory Card „Reload
429
Automatic Start with Pause
430
Using Replace Sequence and Split the Content
431
Leading Zero Suppression after Calculation
432
Replacing Graphics Dynamically
433
Appendix C - Character Lists
434
Character List Swiss 721
435
Character List Swiss 721 Bold
448
Character List Monospace
462
Index
473
DOFY... ] Print Numeric Day of Year(001-366)
473
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the CAB A+ Series and is the answer not in the manual?
Ask a question
CAB A+ Series Specifications
General
Brand
CAB
Model
A+ Series
Category
Label Maker
Language
English
Related product manuals
CAB A+
56 pages
CAB A Series
263 pages
CAB a2+
56 pages
CAB A4+M
28 pages
CAB XD4M
30 pages
CAB EOS2
28 pages
CAB EOS4
48 pages
CAB EOS1
36 pages
CAB MACH4
30 pages
CAB SQUIX
36 pages
CAB 5314 Series
25 pages
CAB SQUIX Series
64 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
