cab Produkttechnik GmbH & Co KG
t - Run Printer Self-
t
est
t0

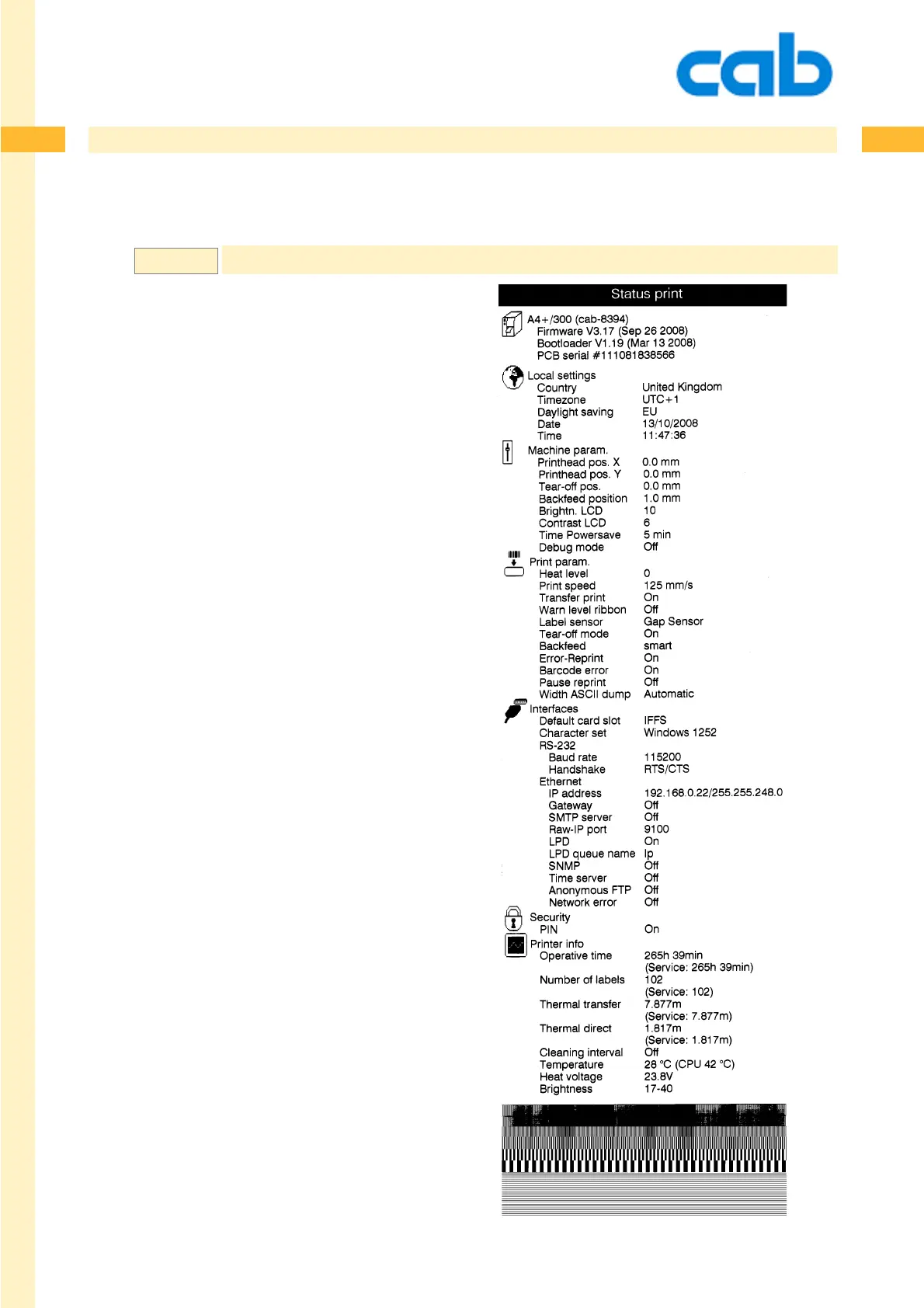

prints the
st
atus information
(here A4+/300)
The status printout is different when printed
by different printer types.
A det
ailed
description of the listed values can be found
in the operator´s manual.
T
ransmitting „t“ without any additional number
causes the printer also to do a status printout.
Example:
84
86
