3-CONTROLSANDINSTRUMENTS

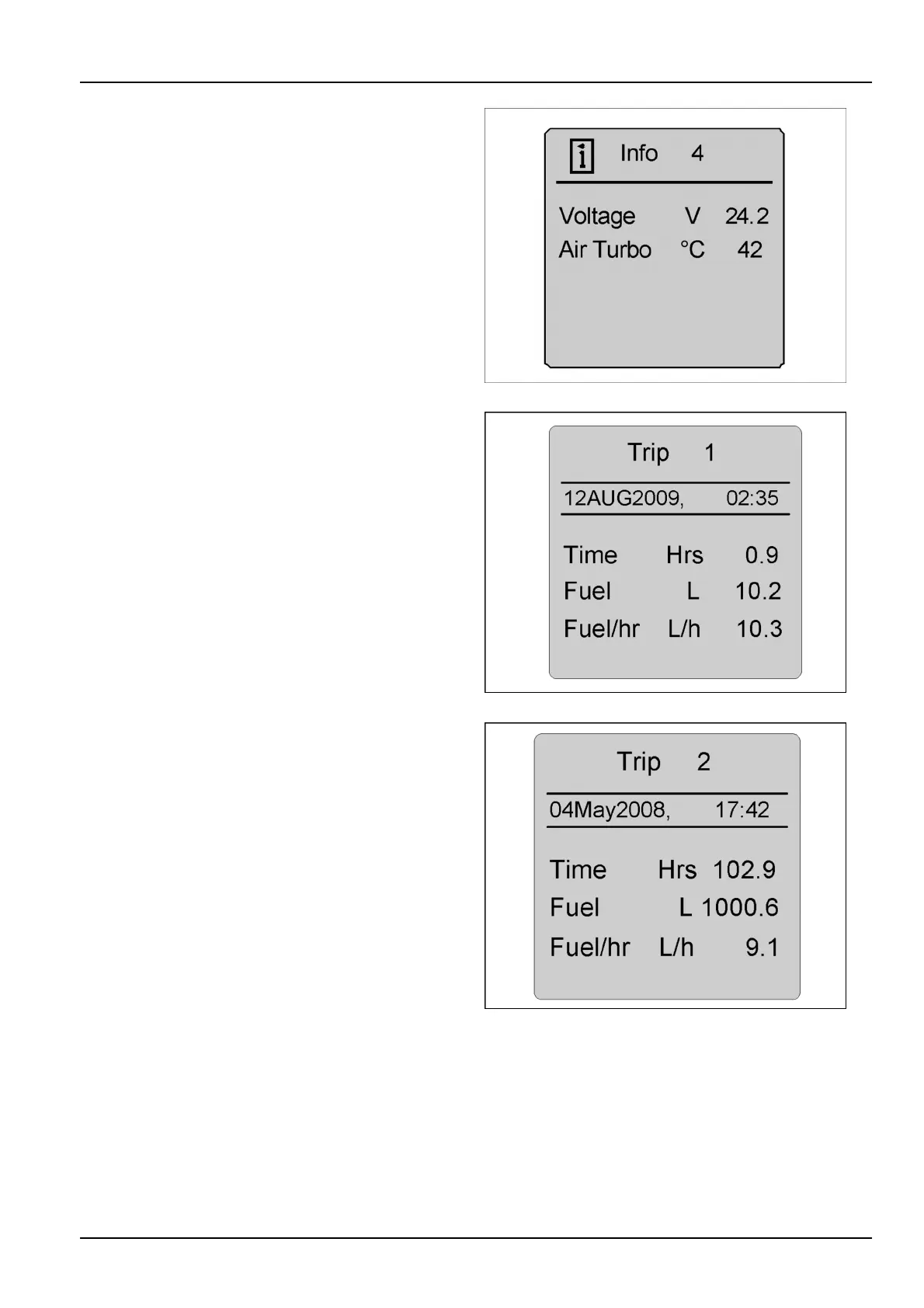

PushthedownkeyagaintodisplaytheInfo4screen.This
screendisplaysvoltageandthetemperatureinFahren-
heitorCelsiusoftheturbochargerair.
RCPH10WHL530AAH6
PressthedownkeyagainandtheTrip1screenwilldis-
play.TheLCDprovidestwotripcomputers.Thesewill
displaysincelastresetthetotaltimeinhours,thetotal
fuel,andtheaveragefuelconsumptionperhour.
RCPH10WHL353AAH7
Bycontinuingtoscrolldown,thesixthscreenwilldisplay
theTrip2screen.Trip1andTrip2screenscanbereset
independently.
RCPH10WHL354AAH8
3-47
