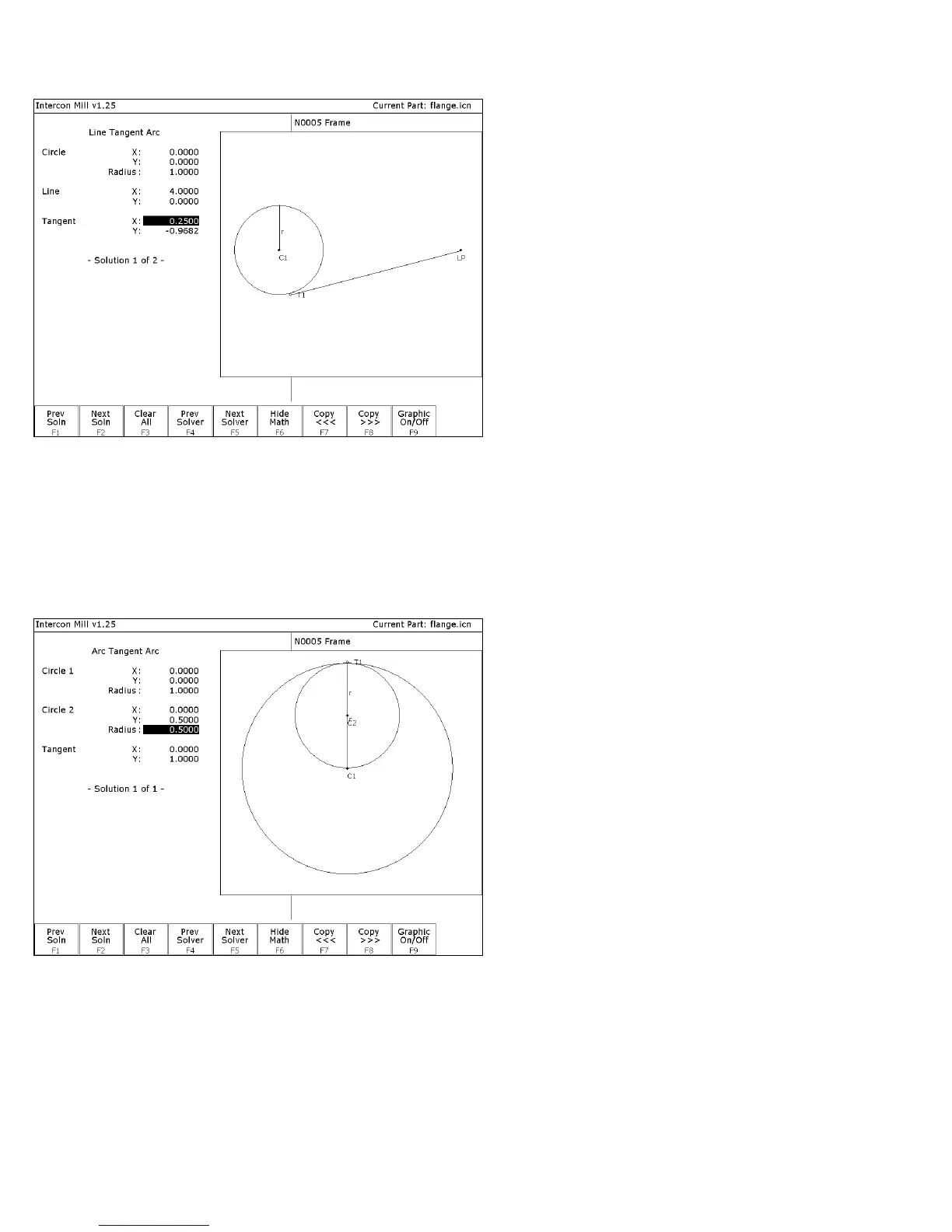

F3 – Tangent: Line Arc
Given the center (C1) the radius of an arc, and 1 point (LP) on a line, find the lines tangent to the arc (defined by the
tangent point (T1)).
You must enter the X and Y coordinates for the circle's center point, the circle's radius, and the X and Y coordinates
for a point on the line.
F4 – Tangent: Arc Arc
Given the center points (C1 and C2) and radii (R1 and R2) of two arcs, find the point (T) at which they are tangent.
You must enter the X and Y coordinates for the first circle's center point, the radius of the first circle, the X and Y
coordinates for the second circle's center point, and the second circle's radius.
