M-Series Operator’s Manual 4/9/15
10-51
Given the center (C1) and radius (R) of an arc, 1 point (P1) and either a second point (P2) or one coordinate (P2 X or
Y) and the angle from horizontal, find the intersection point(s) (I1 and I2).
You must enter the X and Y coordinates for the circle's center point, the circle's radius, the X and Y coordinates for
one point on the line, and one of the following:
* the X and Y coordinates of a second point on the line
* the X coordinate of a second point and the angle from horizontal
* the Y coordinate of a second point and the angle from horizontal

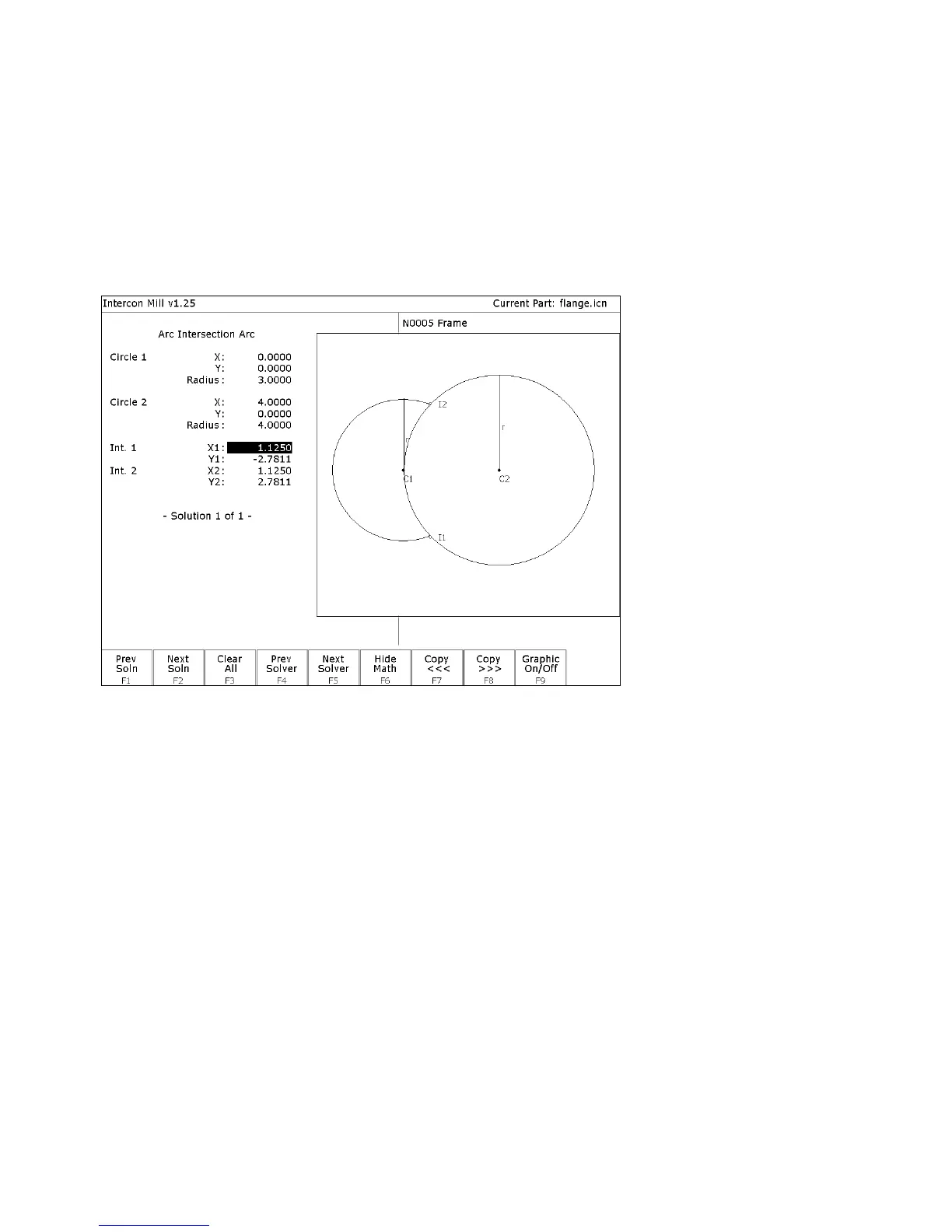

F9 – Intersection: Arc Arc
Given the center points (C1 and C2) and the radii (R1 and R2) of two arcs, find the intersection point(s) (I1 and I2) of
the arcs.
You must enter the X and Y coordinates for the first circle's center point, the radius of the first circle, the X and Y
coordinates for the second circle's center point, and the second circle's radius.
