M-Series Operator’s Manual 4/9/15
10-50
You must enter the radius of the tangent arc, the X and Y coordinates for the first circle's center point, the radius of the
first circle, the X and Y coordinates for the second circle's center point, and the second circle's radius.

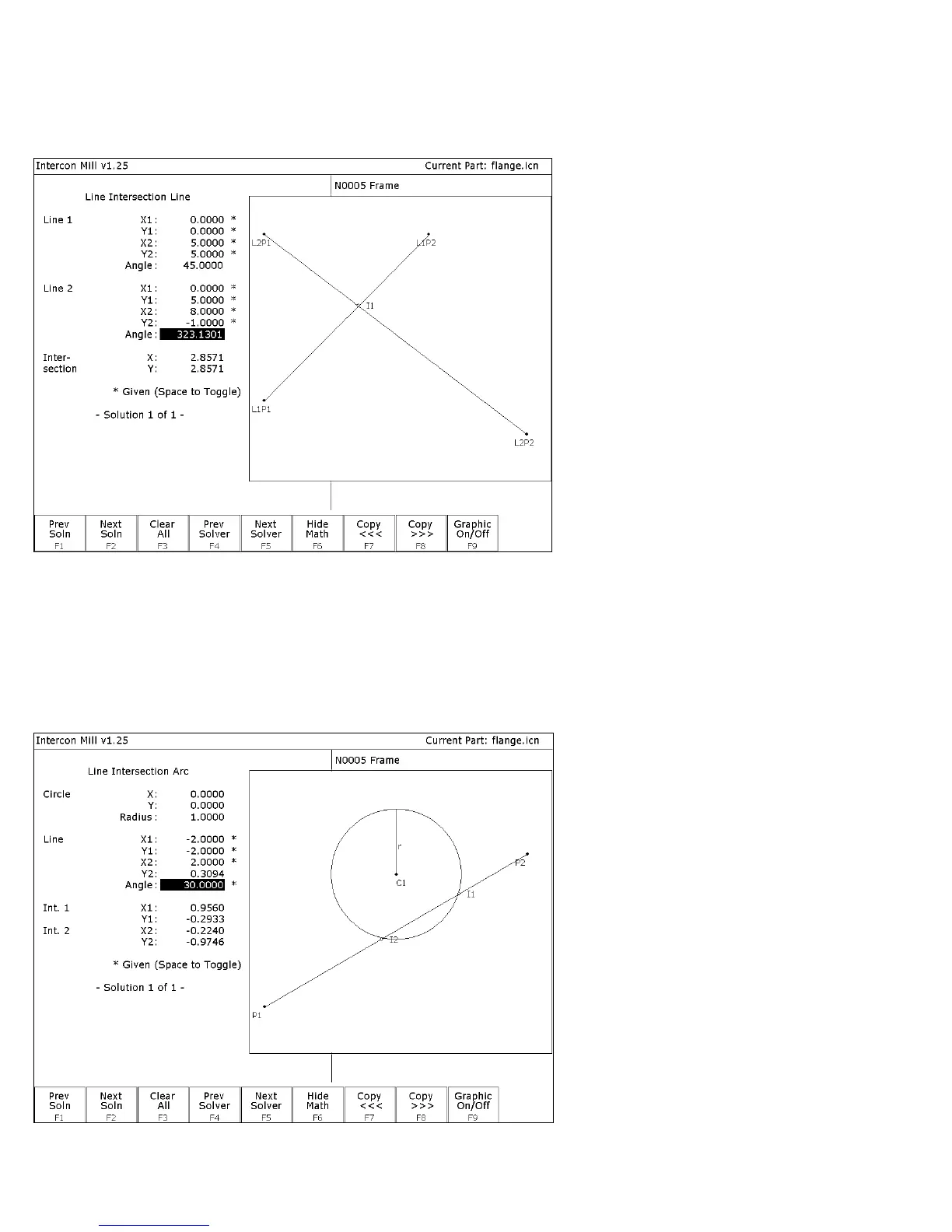

F7 – Intersection: Line Line
You must enter the X and Y coordinates for 1 point on each line, and also one of the following:
* the X and Y coordinates for a second point
* the X coordinate for a second point and the angle from horizontal
* the Y coordinate for a second point and the angle from horizontal
* the angle from horizontal only
F8 – Intersection: Line Arc
