M-Series Operator’s Manual 4/9/15
10-69

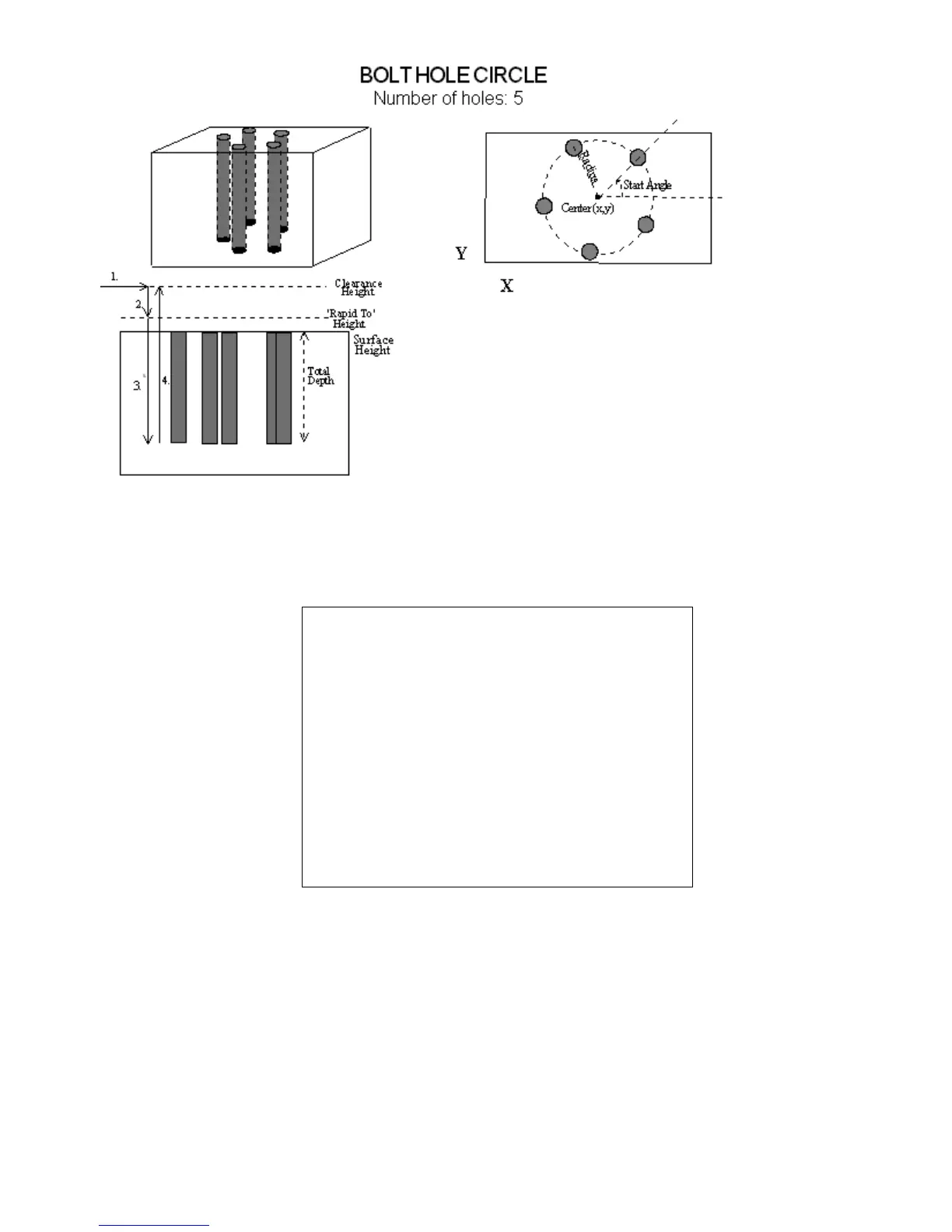

FIG. 2 - Bolt Hole Circle
N0003 Drill bolt holes
Cycle Type :
Drilling
Center: X :
0.0000
Y :
0.0000
Surface Height :
0.0000
Clearance Height
:
0.5000 INC
'Rapid To' Depth :
0.1000 INC
Depth: Total
:
0.5100 INC
Plunge Rate :
Dwell Time :
0.0000
Number of holes :
5
Radius :
0.9250
Start angle :
45.00°
F10 - Accept Keep selected values.
F4 - Tool Use a 0.2500 diameter end mill now. Notice that the tool height
shown below is a negative value. This value represents the
difference in height between this tool and the longest tool being
used. The longest tool used (in this case, operation N0020 above)
has a height of 0.0000. Again, do not be alarmed if the Tool
Height is not -1 for operation N0040. If this tool does not have
the desired spindle (CW) and coolant (Flood) settings, you should
also enter values specific to your machine setup.
