M-Series Operator’s Manual 4/9/15
10-86

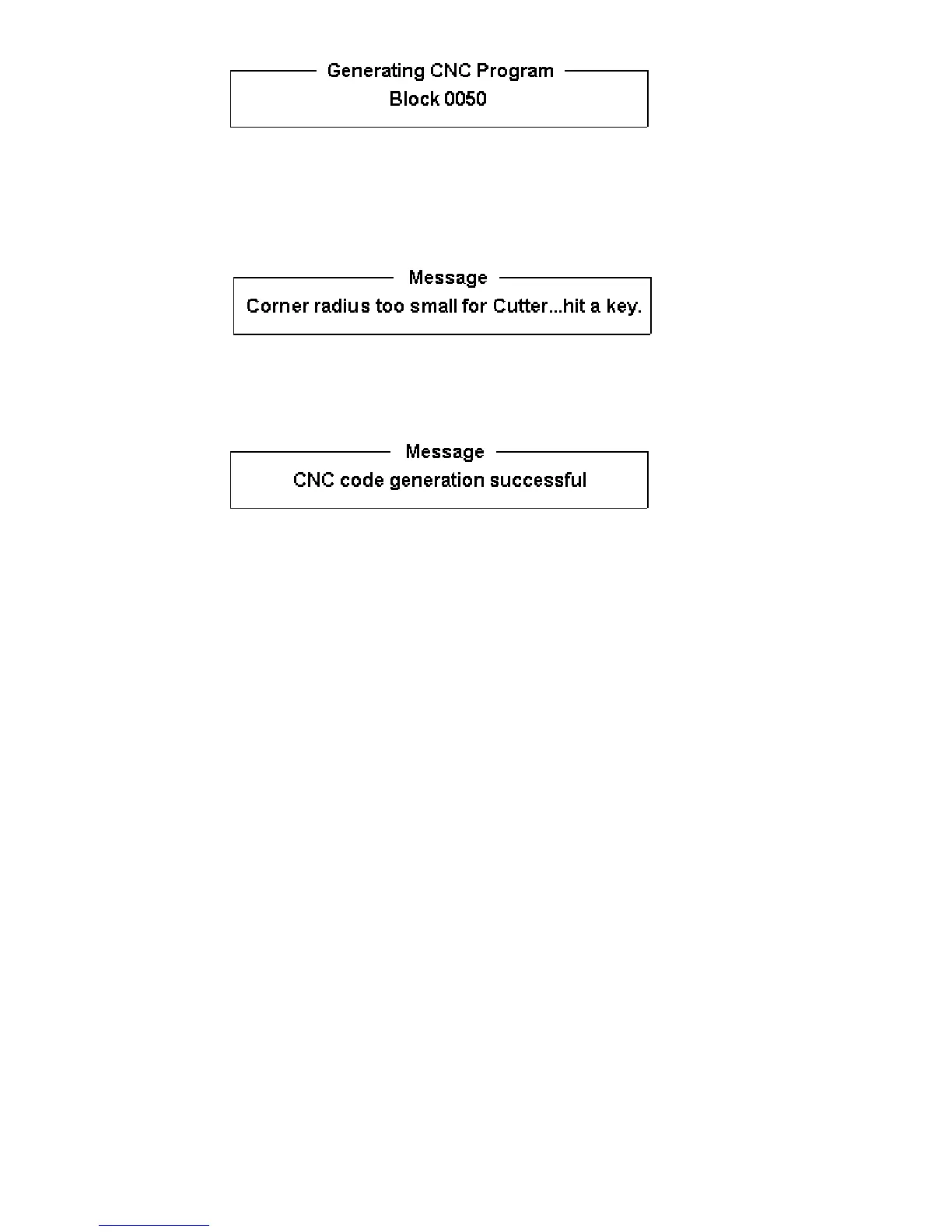

As it processes each operation, it checks for values that, if used,
will cause incorrect code to be produced. If such a value is
found, a message will appear on the screen alerting you of the
problem. For example, a problem with a rectangular pocket may
produce this message:
Changes to the part would then be required to allow proper code
generation to proceed. If no problems are encountered during
code generation, the following message appears:
You are now at the main menu again.
You are now finished designing your part. In order to run your
part, you now need to return to the CNC software.
Program Finished!
